CTH 141 (960610321-02) - Husqvarna Lawn Tractor (2012-08) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

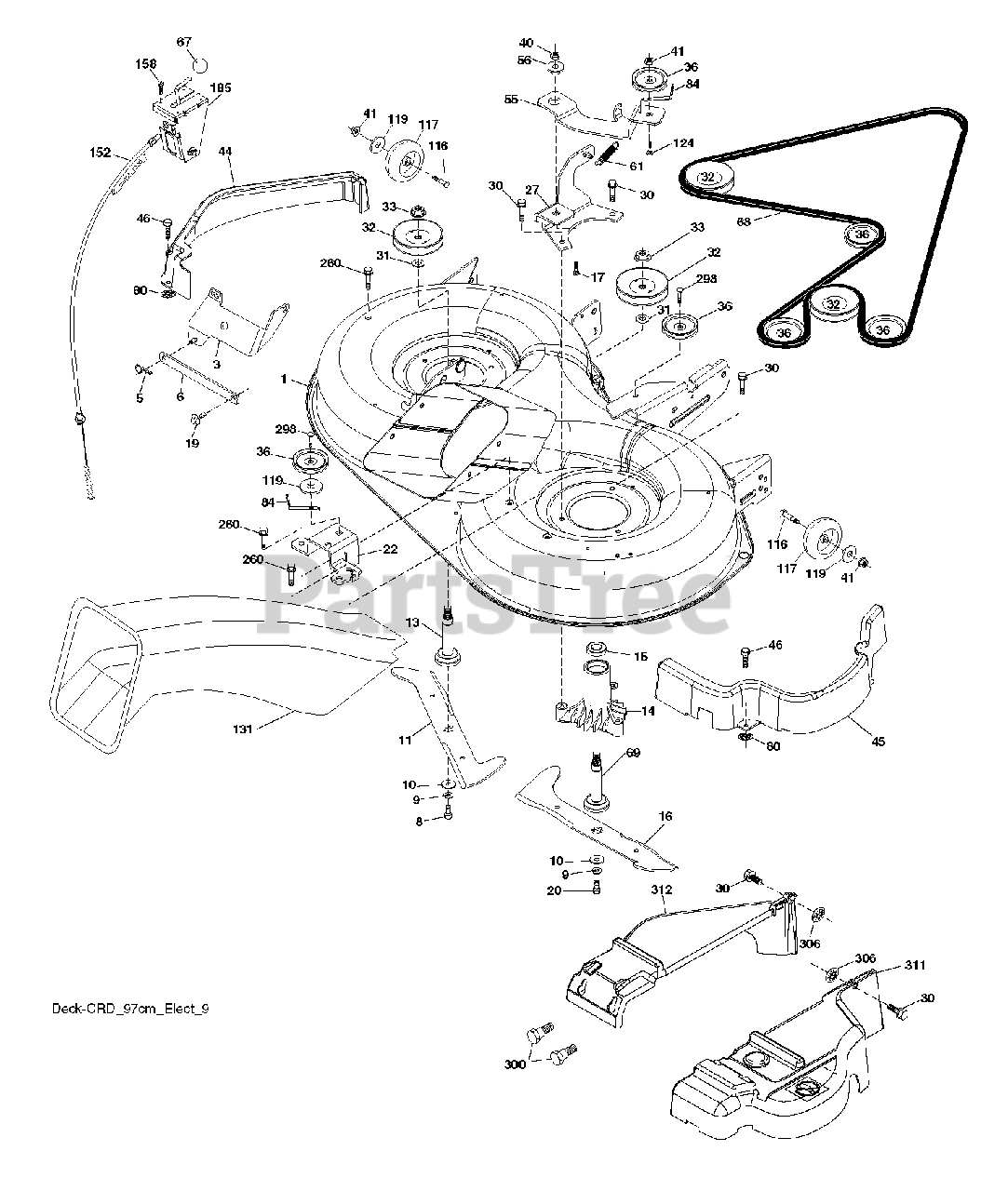

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 532429121

DECK.WLDT.97.CRD.2GWB.
(Superseded to 583486301)

$399.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532431864

BRACKET.ASM.BAR.SWAY.CHASS

$24.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532124670

Retainer Spring

$

$

Not available

6

Husqvarna 532165557

BAR.SWAY.92.CRD

$

$

Not available

8

Husqvarna 532181712

BOLT.3/8-24X1.25 GR8
(Superseded to 583116901)

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 532140296

WASHER.BLADE

$6.49

$

In Stock, Qty 6

0

11

Husqvarna 532427984

BLADE.3N1.LH.CRD.97

$66.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$26.99

$

In Stock, Qty 20+

0

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)

$31.99

$

In Stock, Qty 20+

0

15

Husqvarna 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

16

Husqvarna 532427985

BLADE.3N1.RH.CRD.97

$67.99

$

Usually ships in 3-10 days

0

17

Husqvarna 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$

$

Not available

19

Husqvarna 532132827

BOLT SHD 5/16-18

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532181713

BOLT.3/8-24X1.25GR8. LHTHRD
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

22

Husqvarna 532431169

BRACKET.SUPT.IDLER.REAR.RH

$

$

Not available

27

Husqvarna 532427981

BRACKET.ASM.SUSP.REAR.RH.

$

$

Not available

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 532153532

PULLEY MANDREL
(Superseded to 532173435)

$10.99

$

In Stock, Qty 20+

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

36

Husqvarna 532146763

PULLEY.IDLER.4.25

$

$

Not available

40

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

44

Husqvarna 532430210

COVER MANDREL LEFT
(Superseded to 583456401)

$15.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532430209

COVER MANDREL RIGHT
(Superseded to 583456301)

$15.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 532199498

ARM.IDLER.92 CRD.2006
(Superseded to 583252901)

$30.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532165723

SPACER.RETAINER.MOWER

$6.49

$

In Stock, Qty 13

0

61

Husqvarna 532199486

SPRING
(Superseded to 583252601)

$7.49

$

Usually ships in 3-10 days

0

67

Husqvarna 532106932

KNOB T (3/8 HOLE)

$6.49

$

In Stock, Qty 9

0

68

Husqvarna 532429532

BELT.DRIVE.CRD.97.2010
(Superseded to 584454401)

$

$

Not available

69

Husqvarna 532165482

SHAFT.ASM.W/LWR.BRG.RH.THREAD

$66.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

84

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

116

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

117

Husqvarna 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$4.99

$

In Stock, Qty 20+

0

119

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

124

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

131

Husqvarna 532165661

CHUTE BAGGER

$93.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532176074

$

$

Not available

158

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

185

Husqvarna 532188234

HEAD ASM. CABLE CLUTCH

$53.99

$

Usually ships in 3-10 days

0

260

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

In Stock, only 2 left!

0

298

Husqvarna 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

300

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

306

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

311

Husqvarna 532430774

COVER RIGHT
(Superseded to 583462001)

$21.99

$

Usually ships in 3-10 days

0

312

Husqvarna 532430775

COVER LEFT
(Superseded to 583462101)

$21.99

$

Usually ships in 3-10 days

0

--

Husqvarna 532181857

BEARING HOUSING
(Superseded to 583118201)

Note: Mandrel Assembly (Includes housing shaft assembly and bearing only- pulley /nut /washer and blade bolt /washers not included)

$84.99

$

Usually ships in 3-10 days

0

--

Husqvarna 532181858

BEARING HOUSING
(Superseded to 583118301)

$84.99

$

Usually ships in 3-10 days

0

--

Husqvarna 532433038

CUTTING DECK REPLACEMENT - COM
(Superseded to 583486201)

Note: Replacement Mower Complete (Std Deck- Order separately guage wheel components key nos 116 117 119)

$

$

Not available
