CTH 150 (954140101-A) - Husqvarna Lawn Tractor (1999-10) Mower Lift Parts Diagram

Lawn Tractor

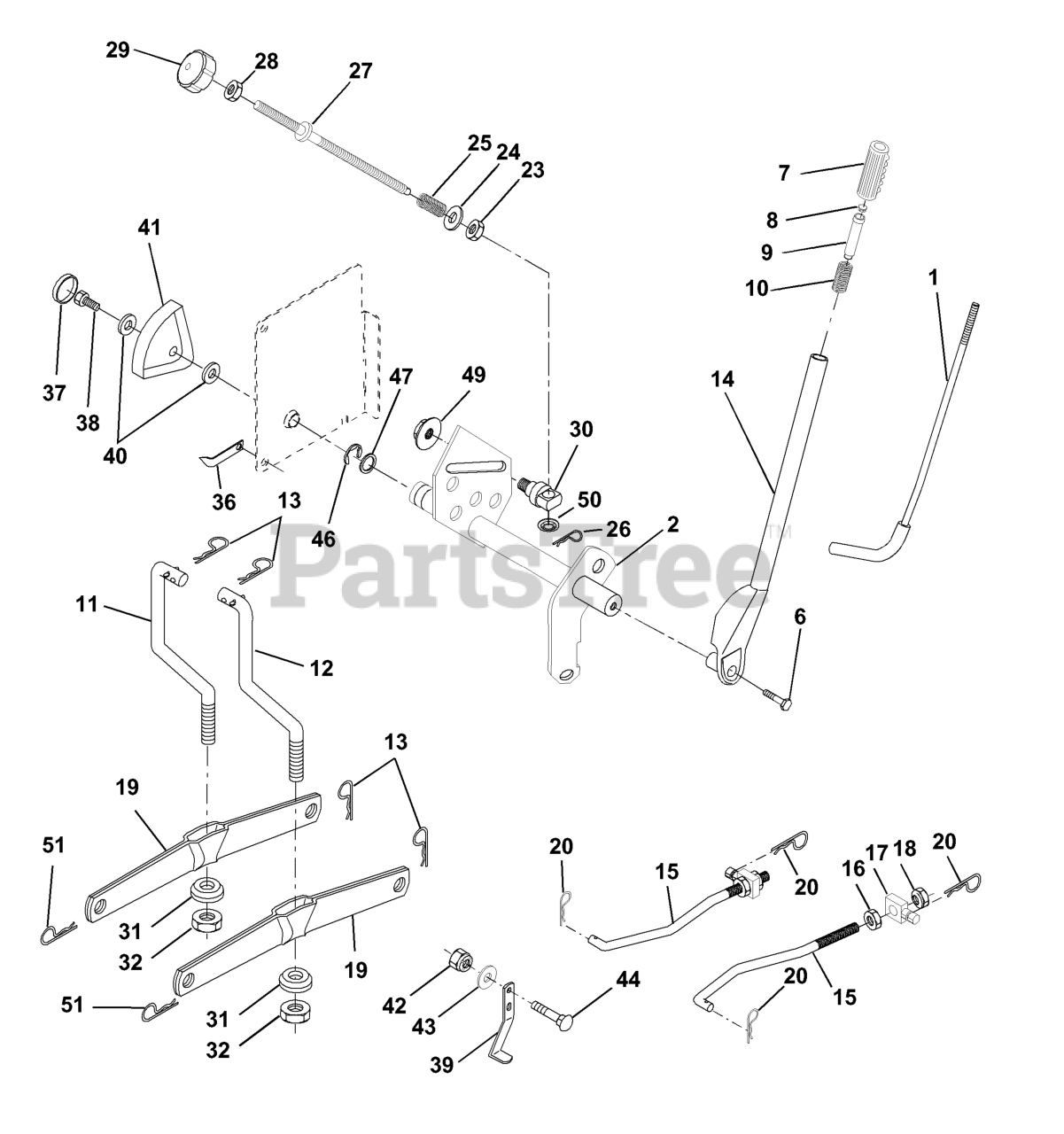

Mower Lift Parts Diagram

  • Title

1

Husqvarna 532159460

WIRE ASM INNER W/ PLUNGER LT

$28.99

$

In Stock, Qty 6

0

2

Husqvarna 532159471

SHAFT ASM R HANDLE
(Superseded to 529845601)

$62.99

$

In Stock, Qty 5

0

3

Husqvarna 532171201

PIN GROOVE
(Superseded to 532105767)

$5.99

$

In Stock, Qty 12

0

4

Husqvarna 812000002

RETAINING RING LT

$3.49

$

In Stock, Qty 11

0

5

Husqvarna 532171205

WASHER
(Superseded to 819211621)

$5.99

$

In Stock, only 2 left!

0

6

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 2 left!

0

7

Husqvarna 532125631

GRIP HANDLE

$7.99

$

In Stock, Qty 9

0

8

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

9

UNKNOWN

$

$

Not available

10

UNKNOWN

$

$

Not available

11

Husqvarna 532165829

LINK
(Superseded to 532165828)

$28.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532165831

LINK
(Superseded to 532165830)

$

$

Not available

13

Husqvarna 532171170

RETAINER SPRING
(Superseded to 532085902)

$

$

Not available

14

UNKNOWN

$

$

Not available

15

Husqvarna 532167253

LINK FRONT
(Superseded to 532173288)

$17.99

$

In Stock, Qty 18

0

16

Husqvarna 532171262

NUT
(Superseded to 873350800)

$

$

Not available

17

Husqvarna 532130171

TRUNION
(Superseded to 532175689)

$

$

Not available

18

Husqvarna 532171263

NUT
(Superseded to 873350800)

$

$

Not available

19

Husqvarna 532139868

ARM.REAR.SUSPENSION
(Superseded to 531165801)

$13.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532171212

NUT
(Superseded to 532003146)

$3.49

$

In Stock, Qty 20+

0

23

Husqvarna 532110807

NUT T

$

$

Not available

24

Husqvarna 532171207

SPRING
(Superseded to 819131016)

$3.49

$

In Stock, only 4 left!

0

25

Husqvarna 532124874

SPRING**
(Superseded to 532002876)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532171208

RETAINER CLIP
(Superseded to 532169484)

$

$

Not available

27

Husqvarna 532171206

ROD
(Superseded to 532126971)

$

$

Not available

28

Husqvarna 532171163

NUT
(Superseded to 873350600)

$5.99

$

In Stock, only 2 left!

0

29

Husqvarna 532138057

KNOB INF 3/8-16

$

$

Not available

30

Husqvarna 532171203

TRUNNION
(Superseded to 532150233)

$

$

Not available

31

Husqvarna 532140302

BEARING PIVOT
(Superseded to 532169865)

$

$

Not available

32

Husqvarna 532171264

NUT LOCK
(Superseded to 873540600)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 532155097

POINTER, HEIGHT INDICATOR(2 2)

$

$

Not available

37

Husqvarna 532123935

PLUG,HOLE

$

$

Not available

38

Husqvarna 532171210

SCREW
(Superseded to 817060516)

$

$

Not available

39

UNKNOWN

$

$

Not available

40

Husqvarna 532171209

WASHER
(Superseded to 819112410)

$6.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532123934

HEIGHT INDICATOR

$

$

Not available

42

UNKNOWN

$

$

Not available

43

UNKNOWN

$

$

Not available

44

UNKNOWN

$

$

Not available

46

UNKNOWN

$

$

Not available

47

UNKNOWN

$

$

Not available

49

Husqvarna 532171178

NUT
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

50

Husqvarna 532110452

NUT PUSH M

$3.49

$

In Stock, Qty 20+

0

51

Husqvarna 532171211

RETAINER SPRING
(Superseded to 596919601)

$3.49

$

In Stock, Qty 20+

0
