CTH 150 (954140101-A) - Husqvarna Lawn Tractor (1999-10) Seat Assembly Parts Diagram

Lawn Tractor

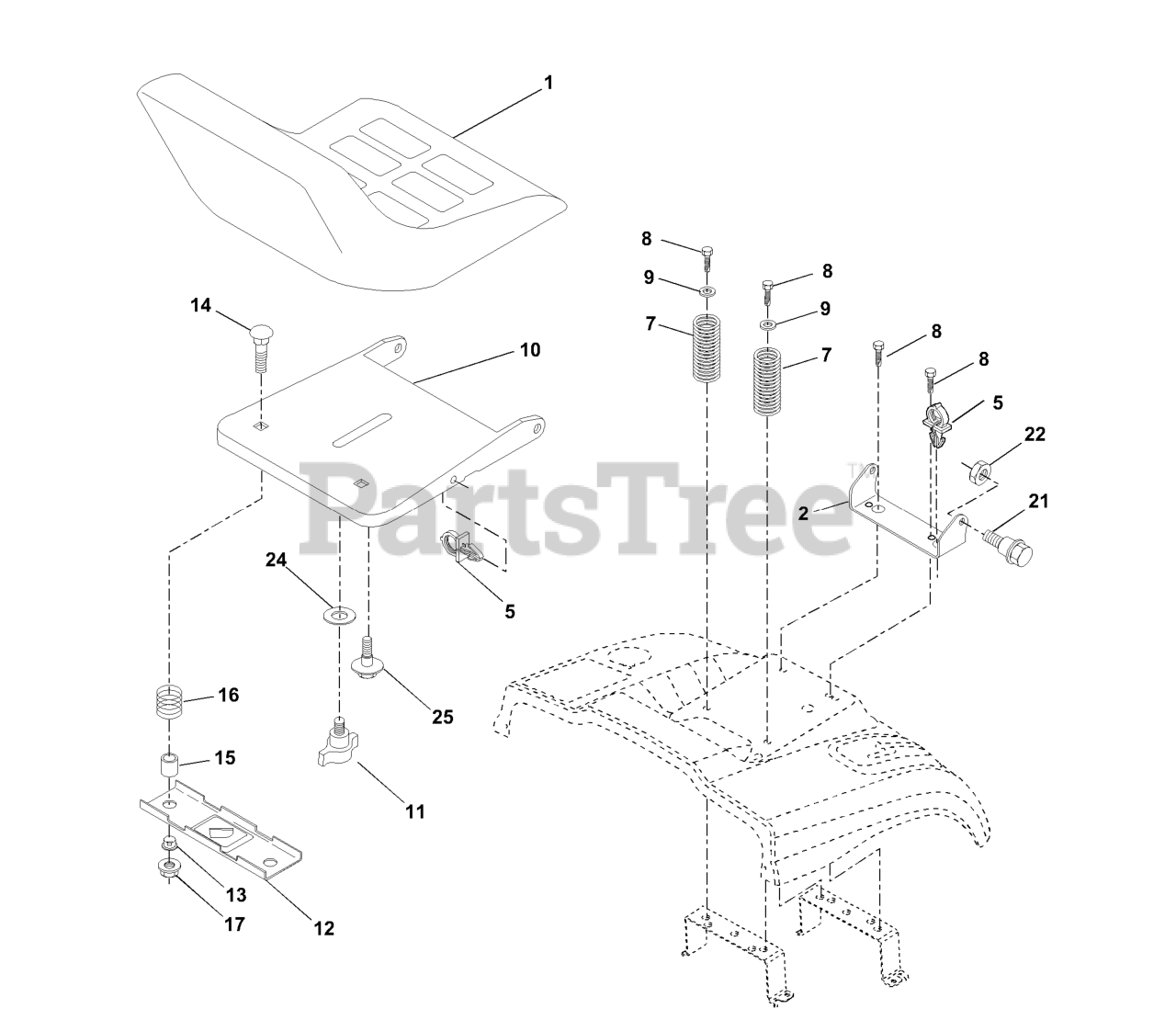

Seat Assembly Parts Diagram

  • Title

1

Husqvarna 532140839

SEAT, GRAY
(Superseded to 532401042)

$205.99

$

In Stock, only 3 left!

0

2

Husqvarna 532140551

SEAT PIVOT BRKT
(Superseded to 531152401)

$11.99

$

In Stock, only 3 left!

0

5

Husqvarna 532145006

PUSH CLIP

$3.49

$

In Stock, only 1 left!

0

7

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, Qty 20+

0

8

Husqvarna 532171235

SCREW 3/8-16 X 1/2
(Superseded to 817000616)

$6.99

$

In Stock, Qty 20+

0

9

Husqvarna 532171236

WASHER 13/32 X 1 X 14 GA.
(Superseded to 596140201)

$3.49

$

In Stock, only 2 left!

0

10

Husqvarna 532155925

PAN, SEAT
(Superseded to 532195530)

$

$

Not available

11

Husqvarna 532166369

KNOB.SEAT.ADJ.WINGNUT

$7.99

$

In Stock, only 1 left!

0

12

Husqvarna 532121246

BRKT SWITCH
(Superseded to 532174648)

$11.99

$

In Stock, only 1 left!

0

13

Husqvarna 532121248

BUSHING

$

$

Not available

14

Husqvarna 532171040

BOLT
(Superseded to 872050412)

$

$

Not available

15

Husqvarna 532134300

SPACER SPLIT 28X.96

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532121250

SPRING

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532171041

NUT LOCK
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 532171130

BOLT
(Superseded to 587907801)

$3.49

$

In Stock, Qty 7

0

22

Husqvarna 532171026

NUT
(Superseded to 873690500)

$

$

Not available

24

Husqvarna 532171261

WASHER
(Superseded to 819171912)

$4.99

$

In Stock, Qty 11

0

25

Husqvarna 532171260

BOLT
(Superseded to 532127018)

$5.99

$

In Stock, only 1 left!

0
