CTH 150 XP (960610066-00) - Husqvarna Lawn Tractor (2006-01) ENGINE Parts Diagram

Lawn Tractor

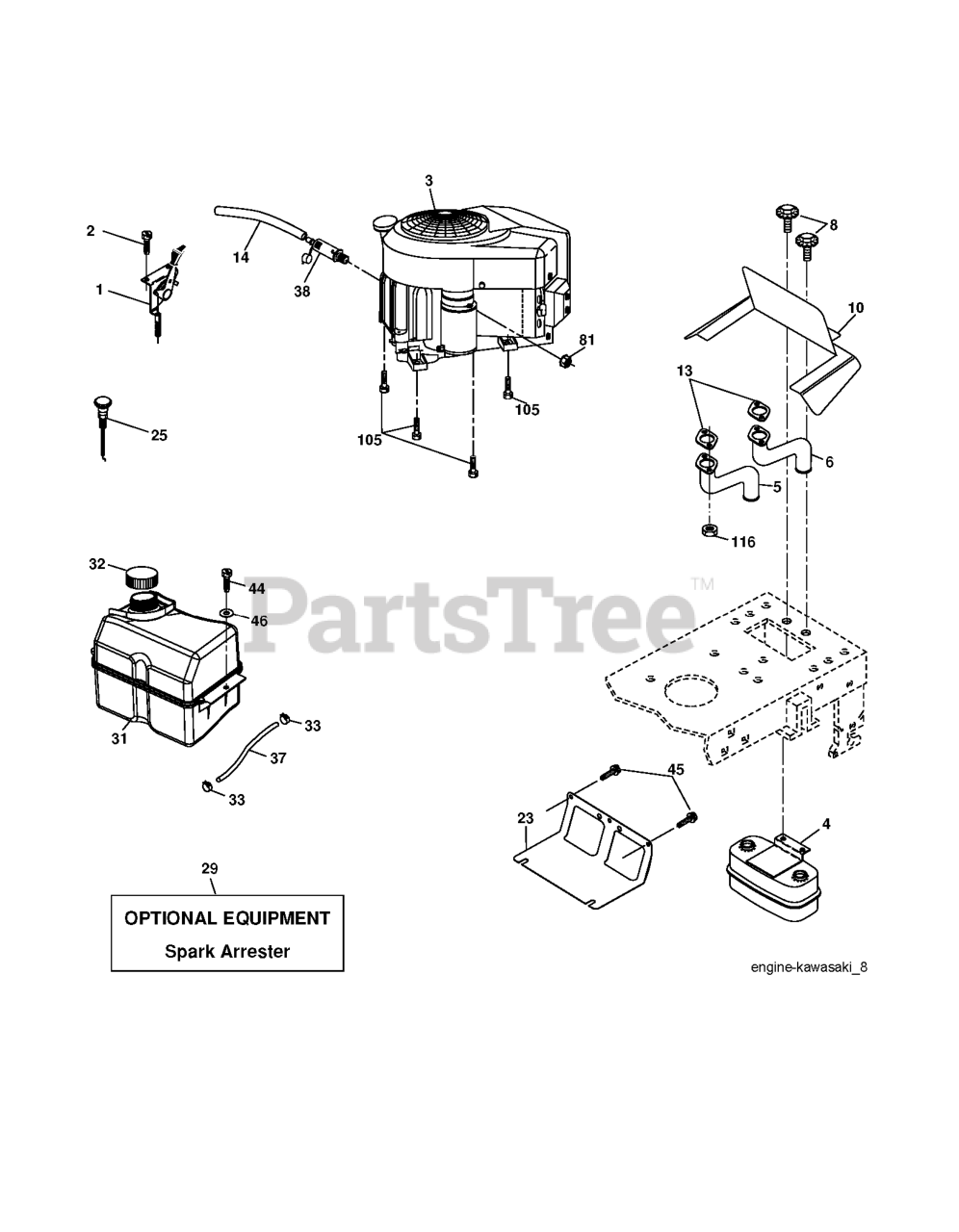

ENGINE Parts Diagram

  • Title

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, Qty 10

0

25

Husqvarna 532191812

NEEDS DESCRIPTION

$

$

Not available

33

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

32

Husqvarna 532140527

FUEL CAP
(Superseded to 581075501)

$27.99

$

In Stock, Qty 6

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$14.99

$

In Stock, Qty 10

0

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD
(Superseded to 531150701)

$27.99

$

In Stock, Qty 7

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

38

NEEDS DESCRIPTION

Note: Plug Drain Oil Easy (Order Parts from Engine Manufacturer)

$

$

Not available

116

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.99

$

In Stock, Qty 5

0

6

Husqvarna 532181444

EXHAUST TUBE LH KAWI

$

$

Not available

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$53.99

$

In Stock, only 2 left!

0

81

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 9

0

2

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.99

$

In Stock, only 1 left!

0

1

Husqvarna 532170803

CONTROL, THROTTLE

$31.99

$

In Stock, only 2 left!

0

44

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

31

Husqvarna 532185534

TANK FUEL
(Superseded to 532430825)

$62.99

$

In Stock, Qty 6

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

5

Husqvarna 532181442

EXHAUST TUBE RH KAWI

$

$

Not available

105

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0
