CTH 151 (960610068-01) - Husqvarna Lawn Tractor (2006-06) ELECTRICAL Parts Diagram

Lawn Tractor

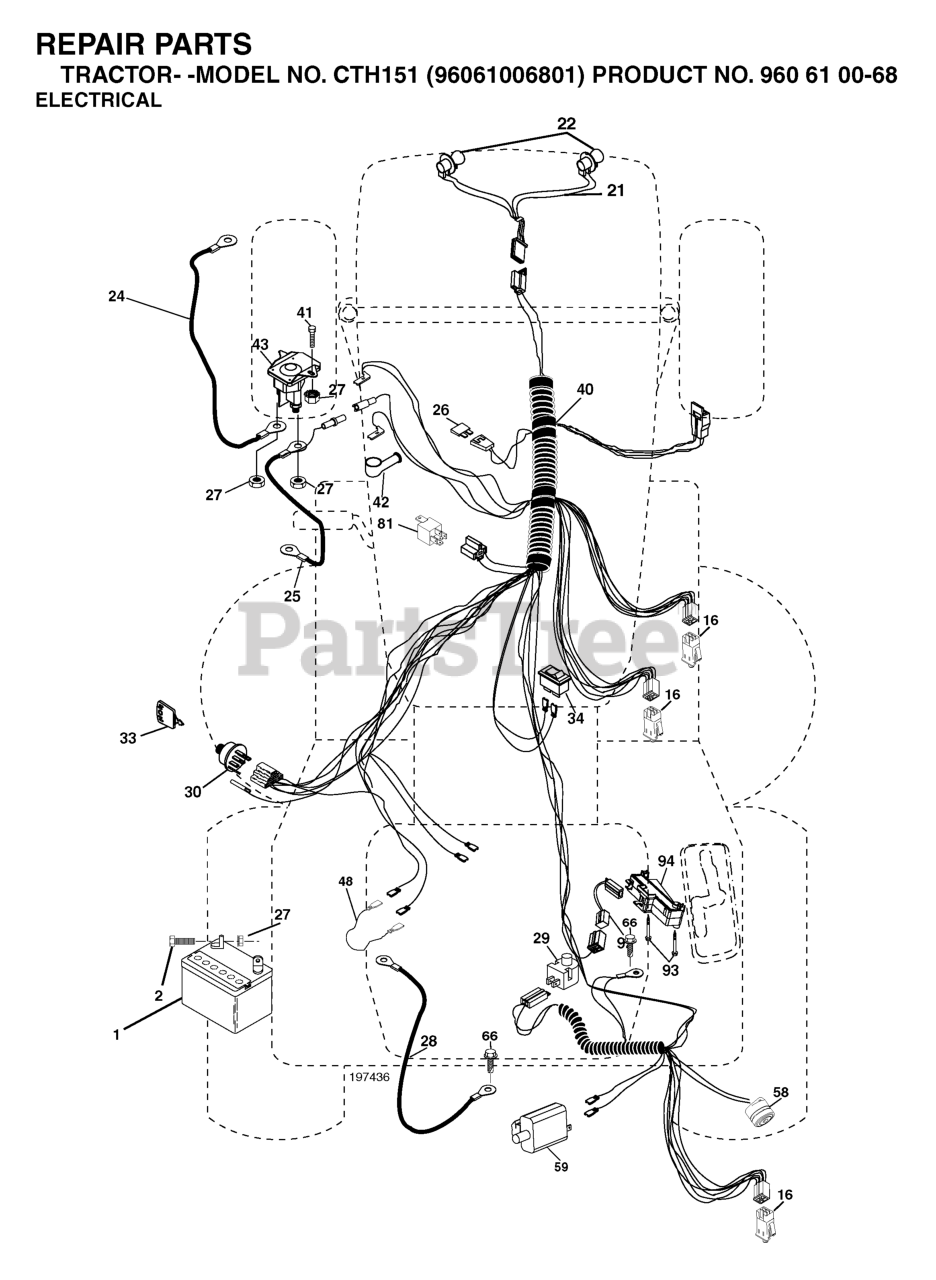

ELECTRICAL Parts Diagram

  • Title

34

Husqvarna 532110712

SWITCH LT

$9.49

$

In Stock, Qty 12

0

92

Husqvarna 532196615

HARNESS.PIGTAIL.CONSLE

$17.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532175158

FUSE 20AMP

$5.99

$

In Stock, Qty 5

0

93

Husqvarna 532192540

SCREW.PLASTITE
(Superseded to 596039601)

$2.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532175688

HARNESS.W/LIGHT SOCKET

$53.99

$

Usually ships in 3-10 days

0

41

Husqvarna 871110408

BOLT
(Superseded to 596437001)

$3.99

$

In Stock, only 2 left!

0

28

Husqvarna 532127725

CABLE GROUND

$

$

Not available

25

Husqvarna 532165987

CABLE BATTERY

$

$

Not available

22

Husqvarna 532004152

LIGHTBULB

$5.99

$

In Stock, Qty 20+

0

29

Husqvarna 532192749

SWITCH.SEAT.DP W/RAMPS

$20.99

$

In Stock, Qty 20+

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$3.99

$

In Stock, Qty 6

0

43

Husqvarna 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$33.99

$

In Stock, Qty 20+

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$7.49

$

In Stock, only 4 left!

0

27

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 532144927

BATTERY 12V .35 AMP
(Superseded to 532123899)

$205.99

$

In Stock, Qty 7

0

24

Husqvarna 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$17.99

$

In Stock, only 1 left!

0

59

Husqvarna 532180379

.WITCH.FULL BAGGER.INDICATOR
(Superseded to 583100701)

$13.99

$

In Stock, only 1 left!

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$35.99

$

In Stock, Qty 20+

0

81

Husqvarna 532109748

RELAY.ASSY.T

$23.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 20+

0

94

Husqvarna 532191834

MODULE.REVERSE.ROS

$27.99

$

In Stock, only 2 left!

0

48

Husqvarna 532140844

ADAPTER.AMMETER

$

$

Not available

40

Husqvarna 532197436

$

$

Not available

33

Husqvarna 532140401

KEY MLD GEN DELTA

$7.49

$

In Stock, Qty 20+

0

66

Husqvarna 817490608

SCREW LT
(Superseded to 596564001)

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532169419

BUZZER
(Superseded to 532169420)

$77.99

$

Usually ships in 3-10 days

0
