CTH 155 (954170051-A) - Husqvarna Lawn Tractor (2002-01) ELECTRICAL Parts Diagram

Lawn Tractor

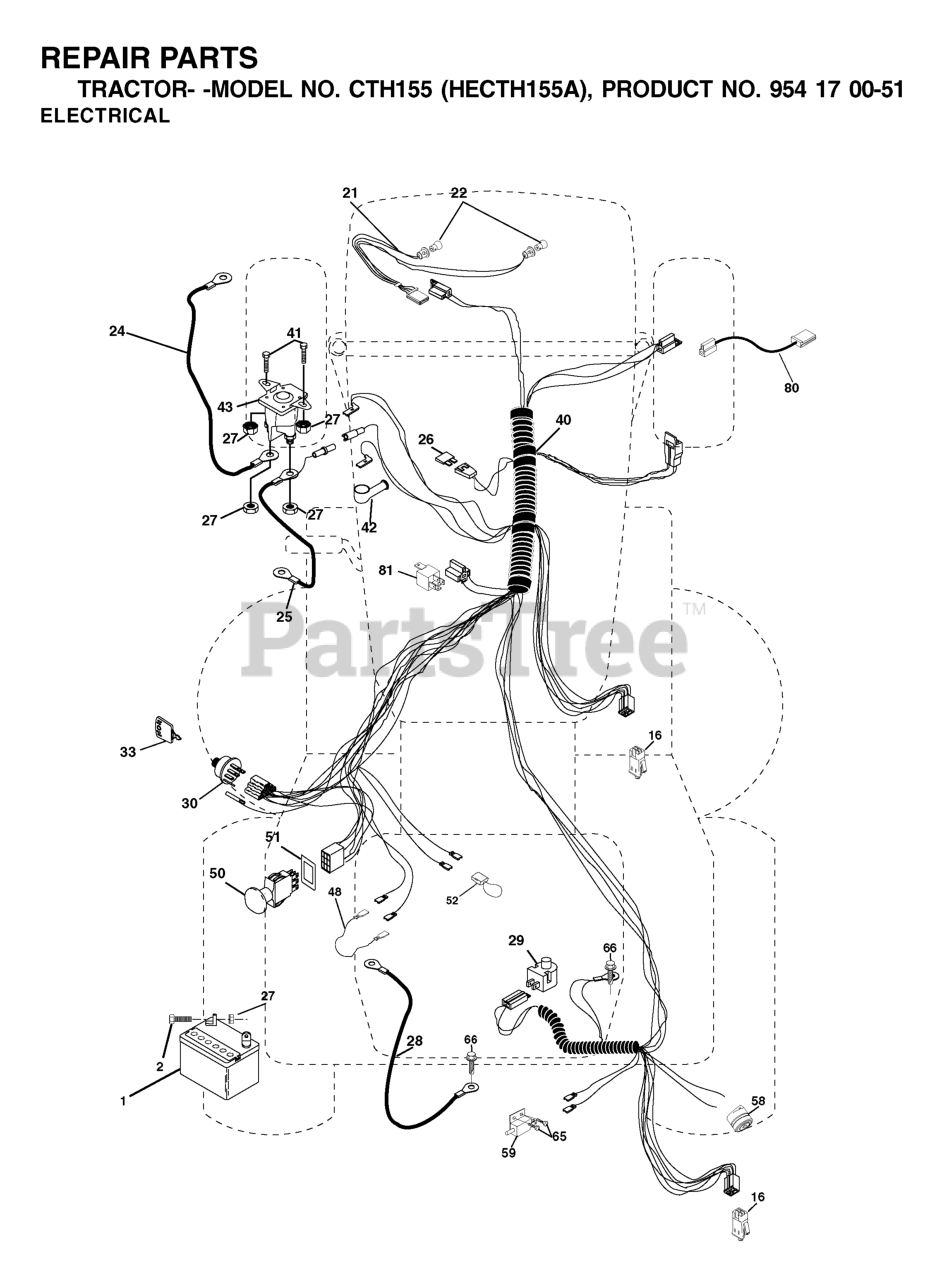

ELECTRICAL Parts Diagram

  • Title

24

Husqvarna 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$17.99

$

In Stock, only 1 left!

0

80

Husqvarna 532146685

HARNESS, CLUTCH

$17.99

$

In Stock, only 2 left!

0

40

Husqvarna 532179727

NEEDS DESCRIPTION

$

$

Not available

51

Husqvarna 532140405

FRAME RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532178861

SOLENOID
(Superseded to 532146154)

$27.99

$

In Stock, Qty 20+

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$3.99

$

In Stock, Qty 6

0

81

Husqvarna 532109748

RELAY.ASSY.T

$23.99

$

Usually ships in 3-10 days

0

41

Husqvarna 871110408

BOLT
(Superseded to 596437001)

$3.99

$

In Stock, only 2 left!

0

52

Husqvarna 532141940

WIRE PROTECTION LOOP

$

$

Not available

50

Husqvarna 532174651

RP.PTO.SWITCH.8 TERMINAL.BLACK
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

58

Husqvarna 532169419

BUZZER
(Superseded to 532169420)

$77.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532140844

ADAPTER.AMMETER

$

$

Not available

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 20+

0

28

Husqvarna 532127725

CABLE GROUND

$

$

Not available

30

Husqvarna 532175566

IGNITION SWITCH

$35.99

$

In Stock, Qty 20+

0

66

Husqvarna 817490608

SCREW LT
(Superseded to 596564001)

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$7.49

$

In Stock, only 4 left!

0

25

Husqvarna 532165987

CABLE BATTERY

$

$

Not available

22

Husqvarna 532004152

LIGHTBULB

$5.99

$

In Stock, Qty 20+

0

21

Husqvarna 532166181

HARNESS

$

$

Not available

29

Husqvarna 532160784

PLUNGER SWITCH (COLOR:OLIVE)

$21.99

$

In Stock, only 2 left!

0

1

Husqvarna 532163465

Battery 12 Volt 25 Amp
(Superseded to 532123899)

$205.99

$

In Stock, Qty 7

0

59

Husqvarna 532180379

.WITCH.FULL BAGGER.INDICATOR
(Superseded to 583100701)

$13.99

$

In Stock, only 1 left!

0

33

Husqvarna 532140401

KEY MLD GEN DELTA

$7.49

$

In Stock, Qty 20+

0

26

Husqvarna 532175158

FUSE 20AMP

$5.99

$

In Stock, Qty 5

0
