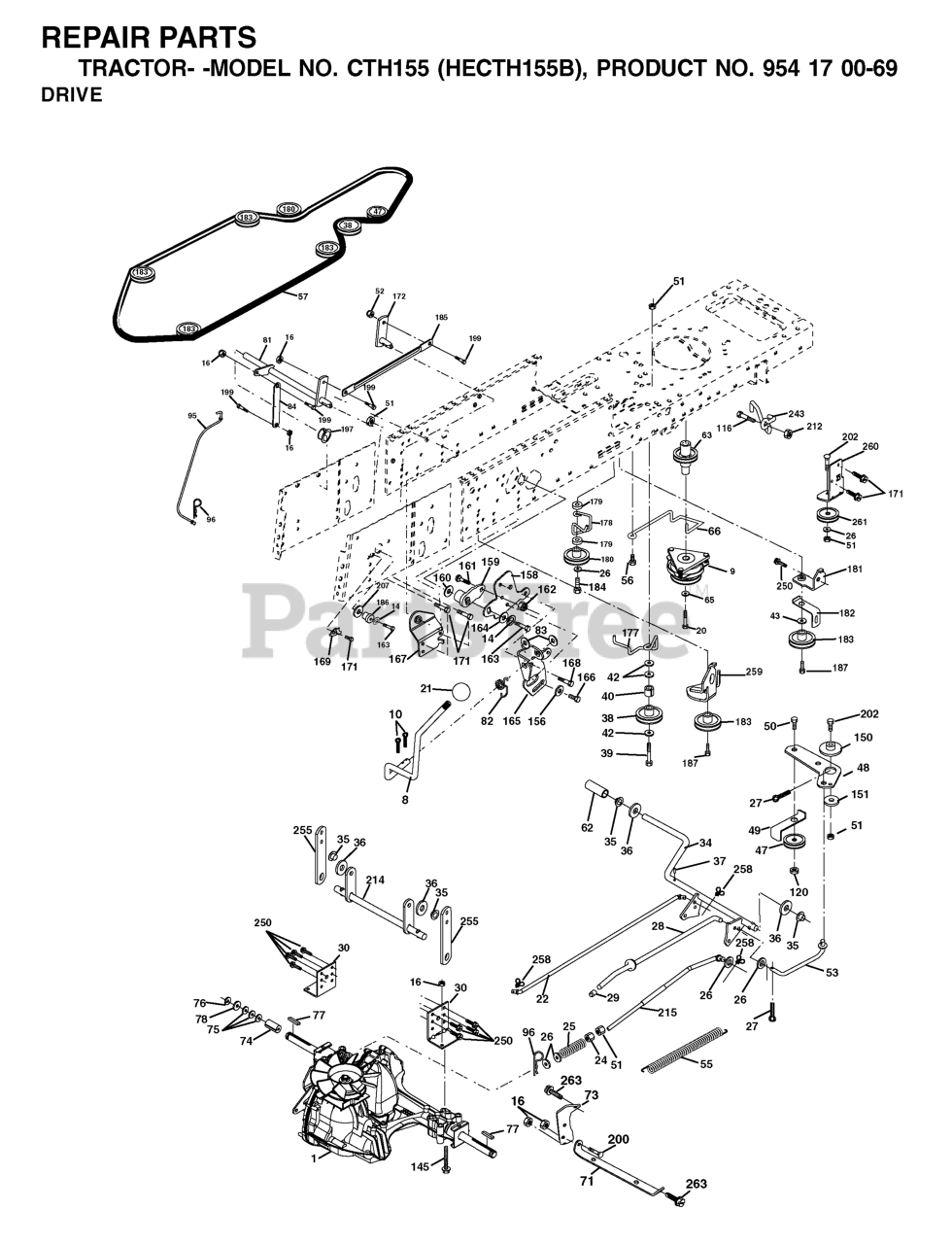

CTH 155 (954170069-B) - Husqvarna Lawn Tractor (2002-03) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

156

Husqvarna 532166002

WASHER.SRRTD.5/16
(Superseded to 596218801)

$2.49

$

Usually ships in 3-10 days

0

82

Husqvarna 532165711

SHIFT SPRING

$5.99

$

In Stock, Qty 11

0

22

Husqvarna 532175607

ROD
(Superseded to 583070201)

$

$

Not available

179

Husqvarna 532120958

WASHER

$

$

Not available

49

Husqvarna 532123205

RETAIN BELT
(Superseded to 531151801)

$4.99

$

In Stock, only 2 left!

0

96

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, Qty 16

0

34

Husqvarna 532175578

SHAFT, FOOT PEDAL

$65.99

$

Usually ships in 3-10 days

0

95

Husqvarna 532170015

LINK
(Superseded to 583036101)

$

$

Not available

187

Husqvarna 817580520

BOLT.5/16-18X1.25

$4.99

$

In Stock, only 1 left!

0

260

Husqvarna 532181781

NEEDS DESCRIPTION

$

$

Not available

144

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$

$

Not available

180

Husqvarna 532165630

PULLEY.FLAT.IDLER

$39.99

$

Usually ships in 3-10 days

0

168

Husqvarna 532165492

BOLT.SHOULDER.5/16-18X

$9.49

$

In Stock, only 2 left!

0

243

Husqvarna 532178289

BRKT ASM MTNG
(Superseded to 532190736)

$34.99

$

In Stock, only 2 left!

0

259

Husqvarna 532180212

BRACKET
(Superseded to 583099201)

$

$

Not available

207

Husqvarna 532169845

WASHER NYL

$3.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532166880

SCREW

$

$

Not available

28

Husqvarna 532175765

ROD, PARKING BRAKE

$

$

Not available

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$5.99

$

In Stock, Qty 20+

0

177

Husqvarna 532165932

KEEPER

$9.99

$

Usually ships in 3-10 days

0

212

Husqvarna 532145212

NUT
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

255

Husqvarna 532175608

SHAFT
(Superseded to 583070301)

$

$

Not available

23

Husqvarna 532171258

BRACKET

$11.99

$

In Stock, only 2 left!

0

200

Husqvarna 872140508

BOLT
(Superseded to 595901501)

$4.99

$

In Stock, Qty 20+

0

63

Husqvarna 532180397

PULLEY.ENGINE.CVX.LT

$

$

Not available

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

186

Husqvarna 532165614

HUB.TAPERED.ROUND.CRD

$5.99

$

Usually ships in 3-10 days

0

42

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$2.49

$

In Stock, Qty 20+

0

261

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$33.99

$

In Stock, Qty 20+

0

50

Husqvarna 874760624

BOLT
(Superseded to 874930624)

$9.99

$

In Stock, Qty 6

0

158

Husqvarna 532165589

BRACKET
(Superseded to 532437458)

$6.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532154778

KEEPER BELT ENGINE
(Superseded to 531151001)

$14.99

$

Usually ships in 3-10 days

0

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

164

Husqvarna 819091010

Washer 5/8 x .281 x 10 Ga.

$

$

Not available

181

Husqvarna 532180211

BRACKET
(Superseded to 583099101)

$5.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

250

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

199

Husqvarna 532169612

BOLT SHOULDER 5/16-18 UNC
(Superseded to 596231101)

$4.99

$

In Stock, Qty 9

0

151

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, only 1 left!

0

263

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

71

Husqvarna 532169183

STRAP TORQUE LH HYDRO

$13.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$47.99

$

In Stock, Qty 20+

0

29

Husqvarna 532071673

PLUNGER CAP

$5.99

$

In Stock, only 2 left!

0

21

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$11.99

$

Usually ships in 3-10 days

0

258

Husqvarna 532178062

CLIP RETAINER

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

206

Husqvarna 819131416

WASHER
(Superseded to 819131414)

$3.99

$

In Stock, only 1 left!

0

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532001572)

$4.99

$

In Stock, only 2 left!

0

57

Husqvarna 532170140

V-BELT 113"
(Superseded to 583036701)

$

$

Not available

48

Husqvarna 532154407

BELLCRANK, CLUTCH

$6.99

$

Usually ships in 3-10 days

0

165

Husqvarna 532165623

RP BRACKET
(Superseded to 531149501)

$5.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532169182

STRAP TORQUE RH HYDRO

$8.49

$

In Stock, only 1 left!

0

182

Husqvarna 532182682

BELT GUIDE
(Superseded to 529846301)

$7.49

$

Usually ships in 3-10 days

0

171

Husqvarna 817490608

SCREW LT
(Superseded to 596564001)

$3.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532121749

WASHER

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 532124965

SPACER T

$4.99

$

Usually ships in 3-10 days

0

43

Husqvarna 819111012

WASHER T
(Superseded to 596039901)

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

116

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 2 left!

0

78

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 20+

0

150

Husqvarna 532165850

BUSHING.BELLCRANK.GRD.DR

$

$

Not available

162

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

169

Husqvarna 532165580

PLATE.FASTENING.CROSS.SHAFT

$

$

Not available

62

Husqvarna 532123533

COVER, PEDAL (1 2)

$

$

Not available

159

Husqvarna 532165494

HUB
(Superseded to 532444304)

$7.49

$

Usually ships in 3-10 days

0

161

Husqvarna 872140406

BOLT
(Superseded to 872110407)

$

$

Not available

202

Husqvarna 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, Qty 20+

0

120

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

84

Husqvarna 532170007

LINK.PNT.TRANSAXLE.0510.CRD
(Superseded to 583035901)

$

$

Not available

183

Husqvarna 532179050

NEEDS DESCRIPTION

$

$

Not available

76

Husqvarna 812000001

E-RING LT

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 871170764

BOLT
(Superseded to 501606501)

$3.49

$

In Stock, only 2 left!

0

55

Husqvarna 532105709

SPRING, RETURN LT

$14.99

$

In Stock, Qty 20+

0

167

Husqvarna 532165588

BRACKET.SUPT.SHIFT.CRD

$

$

Not available

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$11.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

197

Husqvarna 532169613

NYLINER SNAP 5/8" ID

$5.99

$

In Stock, only 3 left!

0

30

Husqvarna 532169592

BRKT, TRNSXLE MNT 20"
(Superseded to 531149601)

$11.99

$

In Stock, Qty 16

0

215

Husqvarna 532175652

ROD
(Superseded to 583070601)

$

$

Not available

39

Husqvarna 874760644

BOLT

$

$

Not available

145

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5
(Superseded to 595316601)

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 819211616

WASHER LT
(Superseded to 596933401)

$3.99

$

In Stock, Qty 12

0

178

Husqvarna 532165933

KEEPER

$

$

Not available

74

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, Qty 11

0

184

Husqvarna 817490644

SCREW.HXWSH.3/8
(Superseded to 596564005)

$8.49

$

In Stock, only 2 left!

0

10

Husqvarna 876020416

PIN COTTER
(Superseded to 596029601)

$2.49

$

Usually ships in 3-10 days

0

160

Husqvarna 819292016

Washer 29/32 x 1 - 1/4 x 16 Ga.

$9.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532180220

TH210XP

$

$

Not available

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 532165619

ROD.SHIFT.FENDER.ADJ.LT.CRD

$

$

Not available

81

Husqvarna 532170006

ASM.CROSS.SHAFT.REAR.CRD.0510

$

$

Not available

1

000000000

Note: HYDROGEAR TRANSAXLE.321-0510, Order parts from manufacturer (583036501)

$

$

Not available

172

Husqvarna 532170271

LINK
(Superseded to 583037801)

$27.99

$

Usually ships in 3-10 days

0

185

Husqvarna 532170008

LINK
(Superseded to 583036001)

$

$

Not available

83

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$4.99

$

In Stock, only 1 left!

0

163

Husqvarna 874780416

BOLT
(Superseded to 596230901)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532165936

PULLEY.FLAT

$27.99

$

In Stock, only 2 left!

0

214

Husqvarna 532175609

LEVER
(Superseded to 583070401)

$

$

Not available

51

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

Usually ships in 3-10 days

0

174

Husqvarna 810090400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

Usually ships in 3-10 days

0
