CTH 160 (954170013-B) - Husqvarna Lawn Tractor (1999-03) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

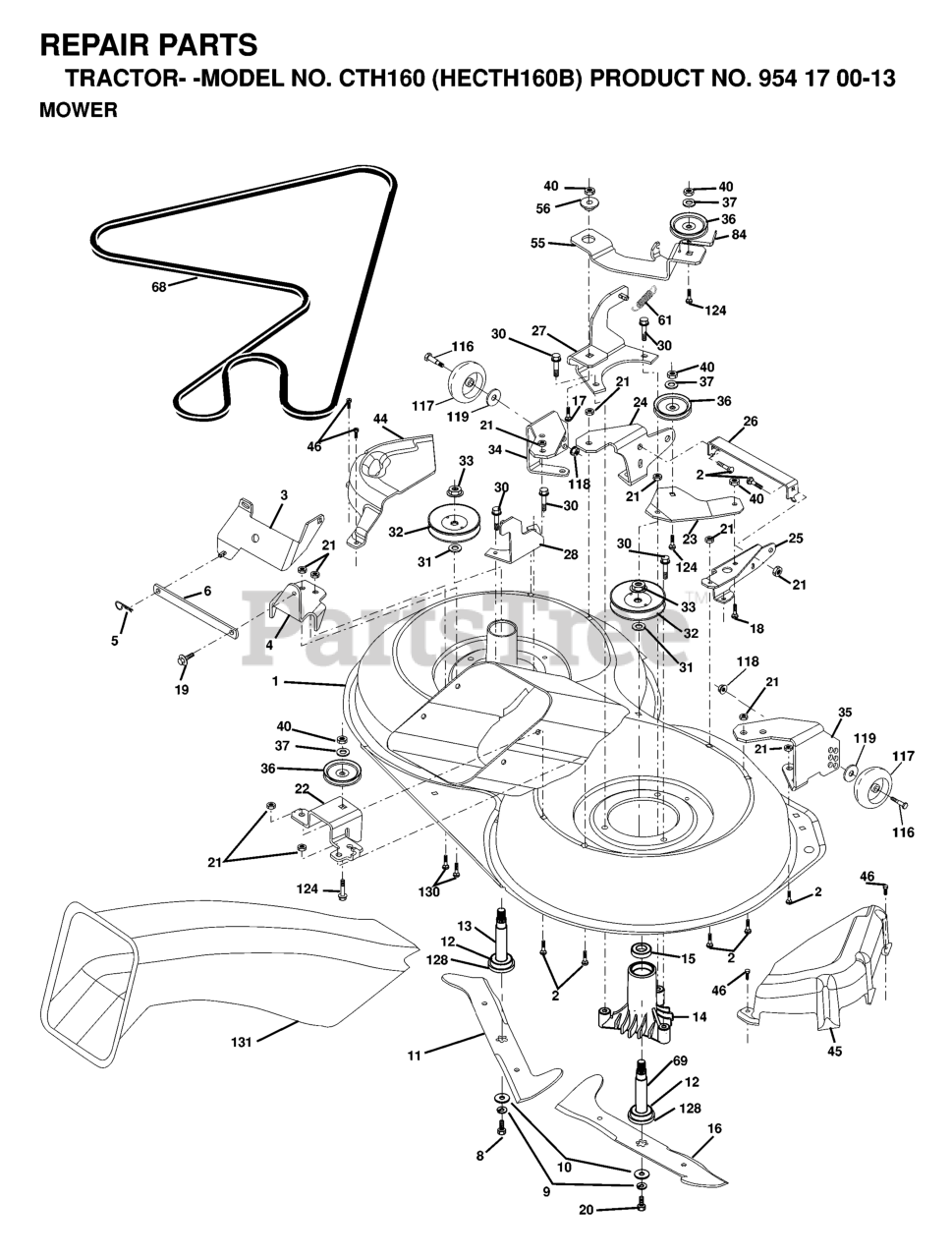

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, Qty 20+

0

40

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532137266

NUT
(Superseded to 532139729)

$9.49

$

In Stock, only 2 left!

0

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

23

Husqvarna 532165446

BRACKET

$

$

Not available

--

Husqvarna 532165578

DECK MOWER COMP

$

$

Not available

22

Husqvarna 532165243

BRACKET

$

$

Not available

3

Husqvarna 532165569

BRACKET

$

$

Not available

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)

$34.99

$

In Stock, Qty 20+

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532165238

BRACKET

$

$

Not available

25

Husqvarna 532165244

BRACKET

$

$

Not available

11

Husqvarna 532165560

BLADE
(Superseded to 532426323)

$79.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532165558

BRACKET

$

$

Not available

26

Husqvarna 532165237

BRACE.SUPT.SUSP.FRT.CRD
(Superseded to 583259301)

$37.99

$

Usually ships in 3-10 days

0

124

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

56

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, Qty 8

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532153531

PULLEY, MANDREL
(Superseded to 532173434)

$18.99

$

In Stock, Qty 15

0

18

Husqvarna 872110608

BOLT D
(Superseded to 596728201)

$4.99

$

In Stock, only 4 left!

0

31

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$5.99

$

In Stock, Qty 20+

0

24

Husqvarna 532165242

BRACKET

$

$

Not available

27

Husqvarna 532165568

BRACKET

$28.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532165724

COVER.MANDREL.LH.92.CRD

$51.99

$

Usually ships in 3-10 days

0

116

Husqvarna 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

--

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

$62.99

$

In Stock, Qty 20+

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 532157722

SCREW THDROL ROLLING WASHER HD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

130

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 8

0

--

Husqvarna 532165579

MANDREL ASM.CRD RH 6PT STAR

$96.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532165552

MOWER HOUSING, DECK
(Superseded to 532176029)

$319.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532165555

HEX-BELT 92 MOWER 105AA
(Superseded to 532402008)

$91.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532165482

SHAFT.ASM.W/LWR.BRG.RH.THREAD

$74.99

$

Usually ships in 3-10 days

0

17

Husqvarna 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$

$

Not available

15

Husqvarna 532110485

BEARING

$14.99

$

In Stock, Qty 20+

0

20

Husqvarna 532165484

BOLT

$

$

Not available

61

Husqvarna 532165945

SPRING.TENSION.BELT

$17.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, Qty 20+

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

128

Husqvarna 532153390

WASHER FELT

$6.49

$

In Stock, only 3 left!

0

117

Husqvarna 532133957

WHEEL GAGE DONUT

$14.99

$

In Stock, Qty 20+

0

28

Husqvarna 532165567

BRACKET

$

$

Not available

12

Husqvarna 532129895

BEARING.BALL.#6204.(MANDREL)

$13.99

$

In Stock, Qty 20+

0

36

Husqvarna 532146763

PULLEY.IDLER.4.25

$

$

Not available

16

Husqvarna 532165561

BLADE.3-1.RH.CRD.92
(Superseded to 532426322)

$84.99

$

Usually ships in 3-10 days

0

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 532165557

BAR.SWAY.92.CRD

$

$

Not available

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532165445

ARM IDLER

$

$

Not available

84

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

45

Husqvarna 532165556

COVER
(Superseded to 532175539)

$22.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532165239

BRACKET

$

$

Not available

131

Husqvarna 532165661

CHUTE BAGGER

$102.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, Qty 20+

0
