CTH 160 II (954170022-B) - Husqvarna Lawn Tractor (2000-02) ENGINE & CUTTING EQUIPMENT Parts Diagram

Lawn Tractor

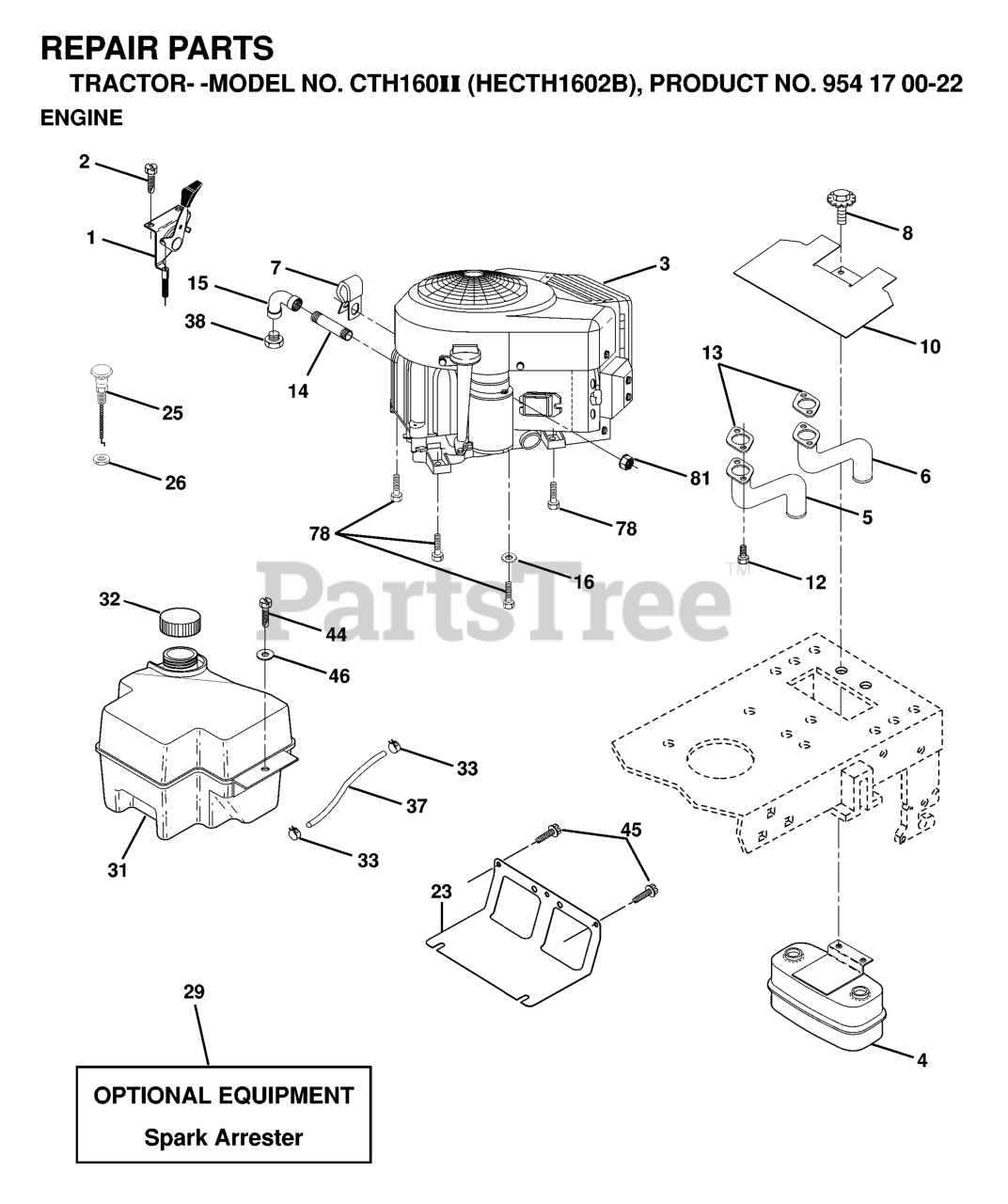

ENGINE & CUTTING EQUIPMENT Parts Diagram

  • Title

10

Husqvarna 532145552

SHIELD HEAT LT

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532150176

BOLT HEX WASHER HD 5/16-18
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

1

Husqvarna 532148875

CONTROL THROTTLE 36"
(Superseded to 532170771)

$

$

Not available

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

In Stock, Qty 5

0

12

Husqvarna 532805158

NEEDS DESCRIPTION

$2.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532169637

NEEDS DESCRIPTION

$

$

Currently unavailable

78

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

14

Husqvarna 813280336

Nipple, Pipe 3/8 NPT x 4-1/2

$

$

Not available

33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$7.49

$

In Stock, Qty 11

0

2

Husqvarna 817720410

SCREW LT
(Superseded to 874780410)

$3.99

$

In Stock, only 3 left!

0

44

Husqvarna 817490412

SCREW HEX CRT
(Superseded to 874760412)

$7.49

$

In Stock, Qty 5

0

32

Husqvarna 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 5

0

81

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 811050600

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532122435

TUBE ASSY EXH RH

$75.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

26

Husqvarna 873920600

Nut Keps 3/8 - 24 UNF

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532805024

NEEDS DESCRIPTION

$

$

Currently unavailable

15

Husqvarna 813200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, Qty 13

0

31

Husqvarna 532161911

FUEL TANK
(Superseded to 532180645)

$

$

Not available

46

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532122434

TUBE ASSY EXH LH

$

$

Not available

25

Husqvarna 532145996

CONTROL, CHOKE

$

$

Not available

7

Husqvarna 532138129

CLAMP

$4.99

$

Usually ships in 3-10 days

0
