CTH 160 II (954170022-C) - Husqvarna Lawn Tractor (2001-02) DRIVE Parts Diagram

Lawn Tractor

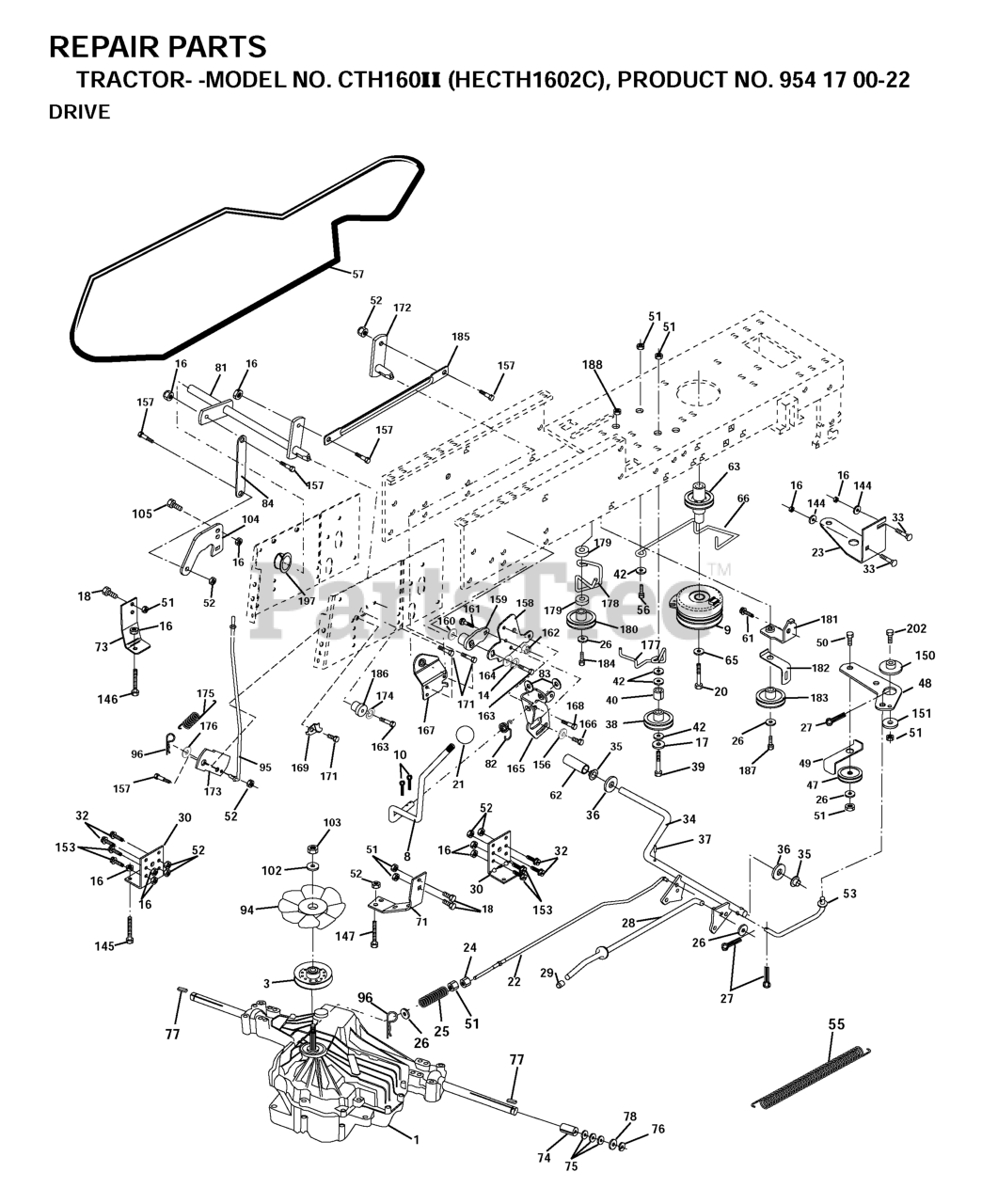

DRIVE Parts Diagram

  • Title

186

Husqvarna 532165614

HUB.TAPERED.ROUND.CRD

$6.49

$

Usually ships in 3-10 days

0

75

Husqvarna 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

102

Husqvarna 532141322

WASHER

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532150280

BOLT HEX
(Superseded to 532173937)

$4.99

$

In Stock, Qty 11

0

185

Husqvarna 532165541

LINK

$7.49

$

Usually ships in 3-10 days

0

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

160

Husqvarna 819292016

Washer 29/32 x 1 - 1/4 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

171

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

165

Husqvarna 532165623

RP BRACKET
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532140462

FAN 7" HYDRO

$12.99

$

In Stock, only 3 left!

0

202

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532123533

COVER, PEDAL (1 2)

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$8.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

159

Husqvarna 532165494

HUB
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

50

Husqvarna 874760624

BOLT
(Superseded to 874930624)

$

$

Not available

48

Husqvarna 532154407

BELLCRANK, CLUTCH

$8.99

$

In Stock, only 1 left!

0

35

Husqvarna 532120183

BEARING.NYLON

$6.49

$

In Stock, Qty 7

0

151

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

42

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

184

Husqvarna 817490644

SCREW.HXWSH.3/8

$

$

Not available

73

Husqvarna 532156347

STRAP TORQUE RH HYDRO

$

$

Not available

181

Husqvarna 532165797

BRKT.IDLER.GRD.DR.CRD

$2.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532145868

PULLEY, CLUTCH ELECT EVX

$100.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

33

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

61

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

161

Husqvarna 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532165932

KEEPER

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 874760644

BOLT

$6.49

$

Usually ships in 3-10 days

0

167

Husqvarna 532165588

BRACKET.SUPT.SHIFT.CRD

$22.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

178

Husqvarna 532165933

KEEPER

$3.99

$

Usually ships in 3-10 days

0

164

Husqvarna 819091010

Washer 5/8 x .281 x 10 Ga.

$

$

Not available

76

Husqvarna 812000001

E-RING LT

$4.99

$

In Stock, Qty 20+

0

145

Husqvarna 874490540

BOLT

$4.99

$

Usually ships in 3-10 days

0

83

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$6.49

$

In Stock, only 3 left!

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532165619

ROD.SHIFT.FENDER.ADJ.LT.CRD

$

$

Not available

176

Husqvarna 819070816

Washer 7/32 x 1/2 x 16 Gauge

$5.99

$

In Stock, Qty 5

0

158

Husqvarna 532165589

BRACKET
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

168

Husqvarna 532165492

BOLT.SHOULDER.5/16-18X

$6.49

$

In Stock, only 3 left!

0

23

Husqvarna 532170171

BRACKET.ASM.CLUTCH

$

$

Not available

173

Husqvarna 532165934

BRACKET

$5.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, Qty 6

0

105

Husqvarna 871070516

SCREW

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532175540

NEEDS DESCRIPTION

$

$

Not available

169

Husqvarna 532165580

PLATE.FASTENING.CROSS.SHAFT

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532165936

PULLEY.FLAT

$31.99

$

In Stock, only 1 left!

0

51

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532123782

SPRING,TORSION

$

$

Not available

16

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

104

Husqvarna 532140156

CONTROL ARM

$

$

Not available

166

Husqvarna 532166880

SCREW

$6.49

$

Usually ships in 3-10 days

0

96

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

29

Husqvarna 532071673

PLUNGER CAP

$4.99

$

In Stock, only 1 left!

0

175

Husqvarna 532165931

SPRING.BYPASS.CRD

$4.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532165850

BUSHING.BELLCRANK.GRD.DR

$

$

Not available

57

Husqvarna 532165632

V-BELT.0650.CRD.TRACTOR

$78.99

$

In Stock, only 1 left!

0

34

Husqvarna 532165496

SHAFT

$31.99

$

Usually ships in 3-10 days

0

162

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

188

Husqvarna 532110436

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

179

Husqvarna 532120958

WASHER

$

$

Not available

157

Husqvarna 532153236

BOLT SHOULDER 5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 14

0

18

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

103

Husqvarna 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, Qty 11

0

22

Husqvarna 532165688

ROD

$

$

Not available

28

Husqvarna 532145204

ROD BRAKE PARK LT

$

$

Not available

66

Husqvarna 532154778

KEEPER BELT ENGINE

$12.99

$

Usually ships in 3-10 days

0

36

Husqvarna 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$34.99

$

In Stock, Qty 8

0

74

Husqvarna 532121199

SPACER SPLIT

$

$

Not available

40

Husqvarna 532124965

SPACER T

$6.49

$

Usually ships in 3-10 days

0

163

Husqvarna 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

56

Husqvarna 874760620

BOLT

$7.49

$

In Stock, only 3 left!

0

153

Husqvarna 874760516

BOLT RB
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 532165585

SHAFT

$26.99

$

Usually ships in 3-10 days

0

147

Husqvarna 874490524

Bolt Hex Flanged 5/16-18 Unc x 2

$

$

Not available

172

Husqvarna 532165587

SHAFT

$

$

Not available

183

Husqvarna 532165626

PULLEY.V-IDLER

$34.99

$

In Stock, only 2 left!

0

84

Husqvarna 532165629

LINK TRANSAXLE

$

$

Not available

71

Husqvarna 532140158

STRAP LH TORQUE

$

$

Not available

32

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

197

Husqvarna 532169613

NYLINER SNAP 5/8" ID

$7.49

$

In Stock, Qty 6

0

27

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

156

Husqvarna 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

95

Husqvarna 532165935

BYPASS CONTROL ASM

$

$

Not available

3

Husqvarna 532143995

PULLEY, TRANSAXLE

$34.99

$

In Stock, only 2 left!

0

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532002882)

$6.99

$

Usually ships in 3-10 days

0

187

Husqvarna 817490620

SCREW
(Superseded to 874760620)

$7.49

$

In Stock, only 3 left!

0

78

Husqvarna 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

144

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$0.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532165630

PULLEY.FLAT.IDLER

$34.99

$

Usually ships in 3-10 days

0

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

146

Husqvarna 874490536

Bolt Hex Flanged 5/16-18 Unc x 2

$

$

Not available

14

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

182

Husqvarna 532165634

KEEPER BELT
(Superseded to 583123401)

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532169592

BRKT, TRNSXLE MNT 20"

$6.49

$

Usually ships in 3-10 days

0

174

Husqvarna 810090400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0
