CTH 163 T (960510003-00) - Husqvarna Lawn Tractor (2011-03) CHASSIS / FRAME Parts Diagram

Lawn Tractor

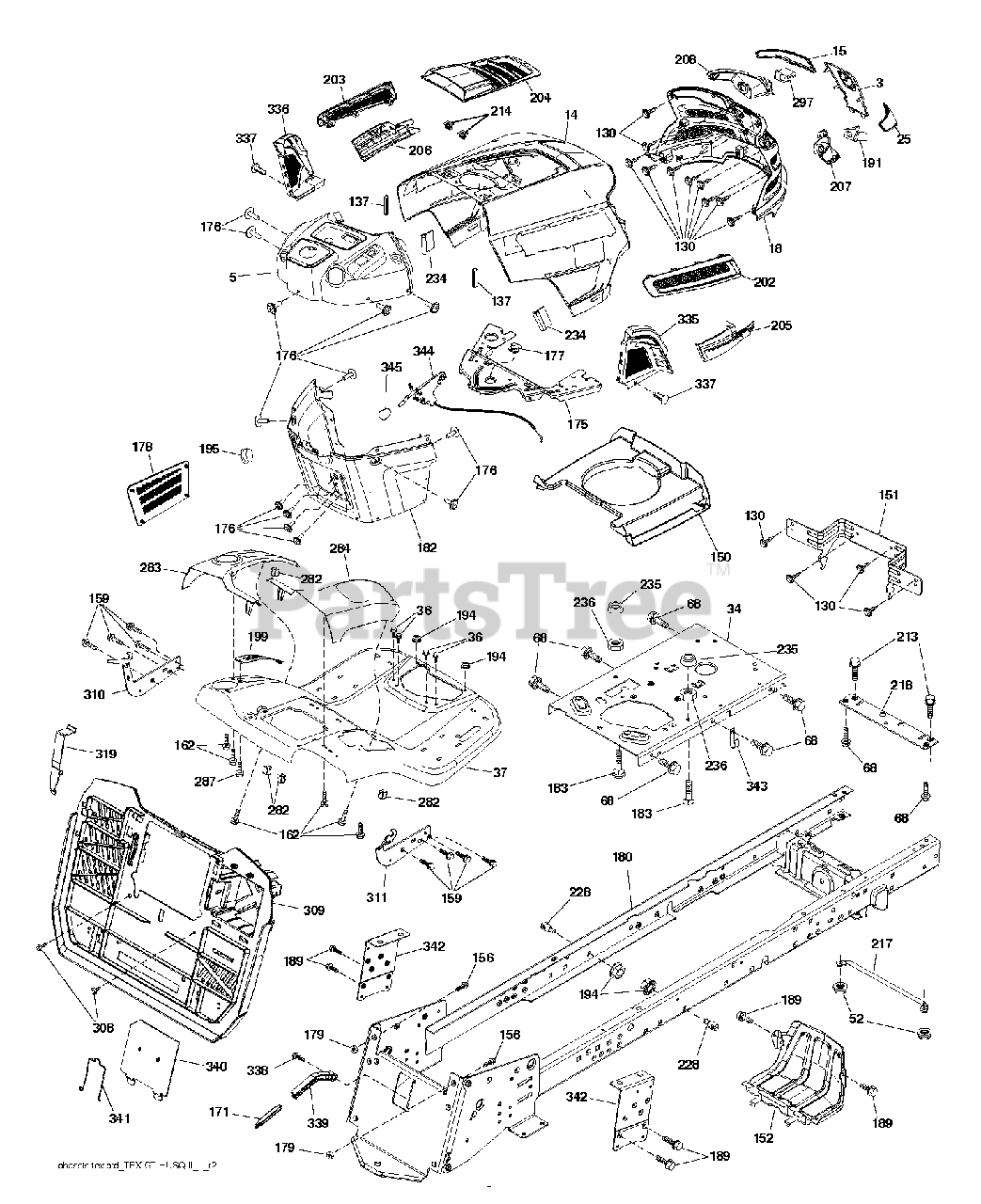

CHASSIS / FRAME Parts Diagram

  • Title

3

Husqvarna 532439752

APPLIQUE.SUBASM.GT.HUSQ.II
(Superseded to 532444481)

$40.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532437474

$

$

Currently unavailable

14

Husqvarna 532441177

HOOD.ASM.HUSQVARNA.GT.TEX.ORAN
(Superseded to 587483301)

$80.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532439733

LENS.HEADLIGHT.LH.GTII.2011

Note: LH

$13.99

$

In Stock, only 1 left!

0

18

Husqvarna 532437762

GRILLE.SUBASM.GT.HUSQ.II
(Superseded to 597247201)

$100.99

$

In Stock, only 1 left!

0

25

Husqvarna 532439732

LENS.HEADLIGHT.RH.GTII.2011
(Superseded to 532443385)

Note: RH

$13.99

$

In Stock, only 2 left!

0

34

Husqvarna 532196125

PLATE.ENGINE.WELDED.CHASSIS
(Superseded to 580910801)

$49.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532440529

FENDER.PNT.SRD.30R

$122.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

68

Husqvarna 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

137

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 12

0

150

Husqvarna 532439731

AIR DUCT.GTV2(1.66"RING HEIGHT

$48.99

$

Usually ships in 3-10 days

0

151

Husqvarna 532436670

BRACKET.PIVOT.HOOD.GT.HUSQ.II

$54.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532439870

SHIELD.BROWNING.PNT.GT.V2

$12.99

$

In Stock, Qty 20+

0

156

Husqvarna 872140614

BOLT

$4.99

$

Usually ships in 3-10 days

0

159

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

171

Husqvarna 532441289

EXTENSION.BAGGER.FULL.
(Superseded to 583510301)

$8.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532196304

PLATE.CROSSMEMBER.HUSQ
(Superseded to 590607702)

$24.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$11.99

$

In Stock, Qty 5

0

177

Husqvarna 532195227

BUSHING, STEERING

$6.49

$

In Stock, Qty 20+

0

178

Husqvarna 532199782

CARGO.ASM.NET.TXGT.W/C

$30.99

$

Usually ships in 3-10 days

0

179

Husqvarna 532168937

NUT

$4.99

$

In Stock, only 1 left!

0

180

Husqvarna 532435472

$

$

Not available

182

Husqvarna 532438967

DASH DASH LOWER
(Superseded to 583536501)

$72.99

$

Usually ships in 3-10 days

0

183

Husqvarna 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

191

Husqvarna 532437455

INSERT.REFLECTIVE.RH.HUSQ.GTII

$18.99

$

Usually ships in 3-10 days

0

194

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

195

Husqvarna 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

199

Husqvarna 532418739

PLATE DECK LIFT
(Superseded to 583371401)

$9.99

$

Usually ships in 3-10 days

0

202

Husqvarna 532439728

VENT.SIDE.RH.GT.HUSQ.II.

Note: RH

$17.99

$

In Stock, Qty 9

0

203

Husqvarna 532439727

VENT.SIDE.LH.GT.HUSQ.II.498

Note: LH

$17.99

$

In Stock, Qty 14

0

204

Husqvarna 532435715

$

$

Currently unavailable

205

Husqvarna 532439730

SIDE.TRIM.RH.GT.HUSQ.II

Note: RH

$13.99

$

In Stock, only 1 left!

0

206

Husqvarna 532439729

SIDE.TRIM.LH.GT.HUSQ.II.GRAY

Note: LH

$13.99

$

In Stock, only 1 left!

0

207

Husqvarna 532439734

BEZEL LIGHT.RH.GT.II.MYLAR
(Superseded to 587464801)

Note: RH

$6.99

$

In Stock, Qty 12

0

208

Husqvarna 532439735

BEZEL LIGHT.LH.GT.II.MYLAR
(Superseded to 587464501)

Note: LH

$6.99

$

In Stock, only 3 left!

0

213

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, only 2 left!

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

Usually ships in 3-10 days

0

218

Husqvarna 532196395

X-PIECE.HOOD.STOP.NON/

$4.99

$

Usually ships in 3-10 days

0

228

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

234

Husqvarna 532404742

BUMPER.HOOD.TEX.HUSQVARNA

$6.49

$

In Stock, only 2 left!

0

235

Husqvarna 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 2 left!

0

282

Husqvarna 532414110

CLIP.RETAINER.CONSOLE.LT.HUSQ

$6.49

$

In Stock, Qty 20+

0

283

Husqvarna 532440531

CONSL.DECKLIFT.LH.SRD.TEX.CRD

$66.99

$

Usually ships in 3-10 days

0

284

Husqvarna 532440530

CONSL.SHFT.PEDAL.RH.SRD.TEXCRD

$60.99

$

Usually ships in 3-10 days

0

287

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

In Stock, Qty 5

0

297

Husqvarna 532437456

INSERT.REFLECTIVE.LH.HUSQ.GTII

$18.99

$

Usually ships in 3-10 days

0

308

Husqvarna 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

309

Husqvarna 532436626

$

$

Not available

310

Husqvarna 532436888

$

$

Not available

311

Husqvarna 532436889

$

$

Not available

319

Husqvarna 532174662

BRACKET.ACTUATOR.BAGGER.SRD

$4.99

$

Usually ships in 3-10 days

0

335

Husqvarna 532439847

COVER.RH.CLOSE.OUT.BLACK

$37.99

$

In Stock, only 2 left!

0

336

Husqvarna 532439846

COVER.LH.CLOSE.OUT

$31.99

$

Usually ships in 3-10 days

0

337

Husqvarna 532438137

CLIP.XMAS.TREE.ITW.2622-00

$

$

Not available

338

Husqvarna 532436640

BOLT BOLT SHOULDER
(Superseded to 583510201)

$6.49

$

Usually ships in 3-10 days

0

339

Husqvarna 532441288

LEVER.BAGGER.FULL.TEX.
(Superseded to 583510301)

$8.99

$

Usually ships in 3-10 days

0

340

Husqvarna 532440931

DOOR.PNT.BATTERY.TRY.TEX.CRD.

$10.99

$

Usually ships in 3-10 days

0

341

Husqvarna 532436638

LATCH
(Superseded to 583510101)

$3.99

$

Usually ships in 3-10 days

0

342

Husqvarna 532435938

SUPPORT SUPPORT FENDER
(Superseded to 583507901)

$6.49

$

Usually ships in 3-10 days

0

343

Husqvarna 532440749

CLIP CLIP
(Superseded to 582671501)

$2.99

$

Usually ships in 3-10 days

0

344

Husqvarna 532438970

CONTROL.EZ.MULCH.TEX/CRD
(Superseded to 583536701)

$133.99

$

Usually ships in 3-10 days

0

345

Husqvarna 532440639

RP KNOB.OVAL.TAPERED.3/8-16BLK
(Superseded to 539132624)

$7.49

$

In Stock, Qty 12

0
