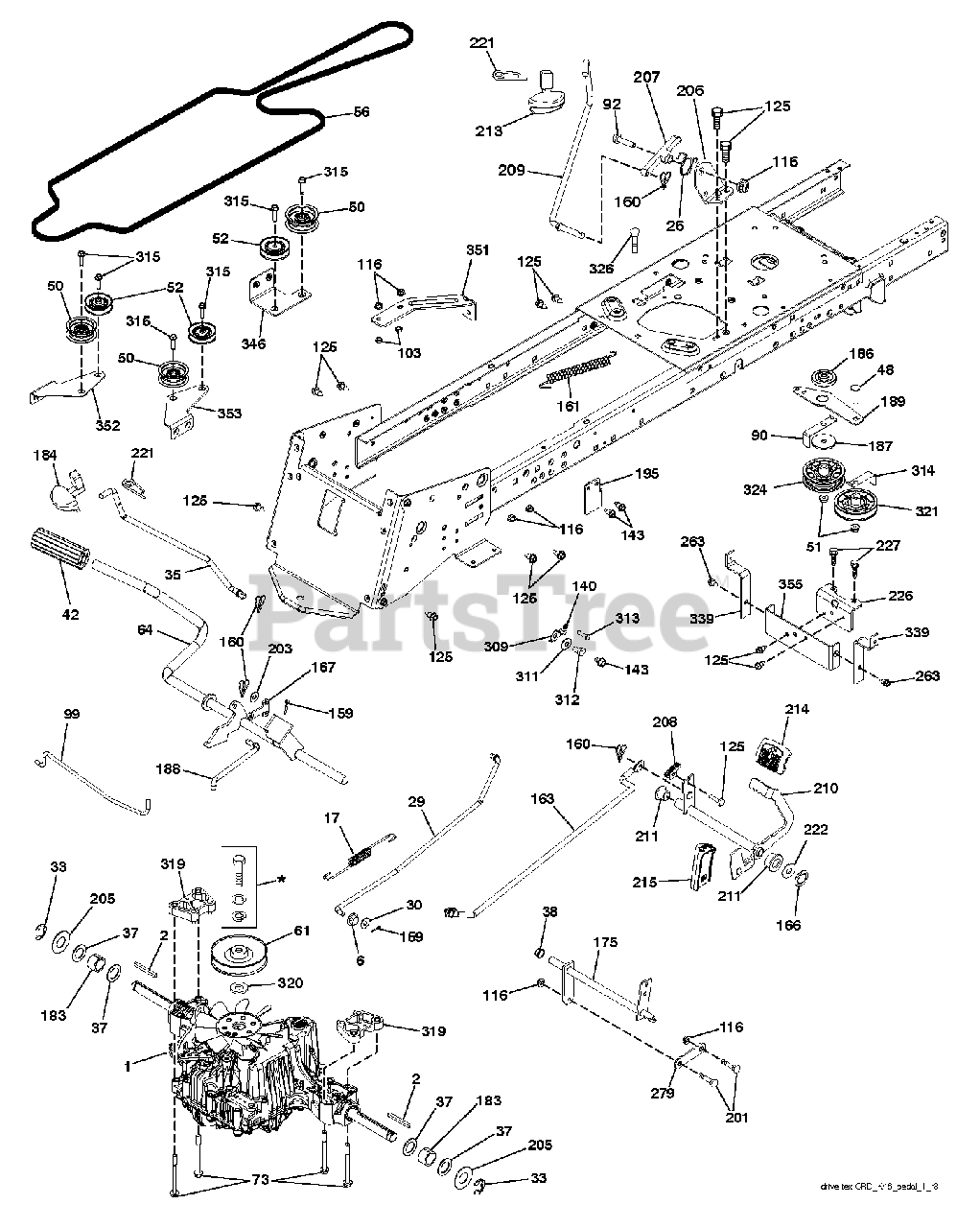

CTH 163 T (960510017-00) - Husqvarna Lawn Tractor (2011-05) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

1

Husqvarna 532436814

Note: Transaxle Tufftorq K46DF (436814)

$

$

Currently unavailable

2

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 7

0

6

Husqvarna 532124028

BUSHING.SNAP.NYL.BLK.

$6.99

$

In Stock, only 3 left!

0

17

Husqvarna 532436227

SPRING
(Superseded to 583508701)

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532199679

SPRING.RETURN.CRUISE

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532435881

ROD
(Superseded to 583507601)

$34.99

$

Usually ships in 3-10 days

0

30

Husqvarna 819131616

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 812000001

E-RING LT

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532435486

ROD.BRAKE.PARTK.HUSQ.TEX
(Superseded to 583864501)

$7.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 532169613

NYLINER SNAP 5/8" ID

$7.49

$

In Stock, Qty 6

0

42

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 17

0

48

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532436812

IDLER.FLAT.2.25.INCH
(Superseded to 583512101)

$31.99

$

Usually ships in 3-10 days

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532199534

PULLEY.V-IDLER.

$37.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532170140

V-BELT 113"
(Superseded to 583036701)

$72.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532437788

PULLEY
(Superseded to 583522801)

$42.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

73

Husqvarna 874490556

BOLT.FLANGED
(Superseded to 583613201)

$

$

Not available

90

Husqvarna 532439848

BRACKET KEEPER BELT CLUTCHING
(Superseded to 583546001)

$6.99

$

Usually ships in 3-10 days

0

92

Husqvarna 874760520

BOLT
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532437210

ROD
(Superseded to 583517401)

$4.99

$

Usually ships in 3-10 days

0

103

Husqvarna 873350500

JAM NUT TI
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$6.49

$

Usually ships in 3-10 days

0

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

140

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

143

Husqvarna 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

159

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

161

Husqvarna 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

163

Husqvarna 532436632

ROD
(Superseded to 583550601)

$33.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532429164

NUT.PUSH.625

$6.49

$

In Stock, Qty 6

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532441823

SHAFT SHAFT CROSS SHIFT REAR F
(Superseded to 583560401)

$26.99

$

Usually ships in 3-10 days

0

183

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, Qty 10

0

184

Husqvarna 532441455

RB HANDLE.PARKG.BRK.HUS/PRED
(Superseded to 532403118)

$12.99

$

In Stock, Qty 20+

0

186

Husqvarna 532194321

SPACER.RETAINER

$7.49

$

In Stock, only 1 left!

0

187

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

188

Husqvarna 532194323

RP LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

189

Husqvarna 532433611

BELLCRANK BELLCRANK GROUNDDRI
(Superseded to 583492701)

$7.49

$

Usually ships in 3-10 days

0

195

Husqvarna 532435865

$

$

Not available

201

Husqvarna 532169612

BOLT SHOULDER 5/16-18 UNC
(Superseded to 596231101)

$3.99

$

In Stock, Qty 11

0

203

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

205

Husqvarna 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

206

Husqvarna 532197867

BRKT.MOUNT.LATCH.CRUIS
(Superseded to 532448596)

$4.99

$

In Stock, only 1 left!

0

207

Husqvarna 532197868

LATCH.CONTROL.CRUISE
(Superseded to 587031401)

$

$

Not available

208

Husqvarna 532197869

GEAR.SECTOR.CONTROL.CR

$6.49

$

Usually ships in 3-10 days

0

209

Husqvarna 532199592

ROD.CONTROL.CRUISE.GT.

$10.99

$

Usually ships in 3-10 days

0

210

Husqvarna 532400980

ROCKER.ASM.PEDAL.CONTR

$34.99

$

In Stock, only 1 left!

0

211

Husqvarna 532120183

BEARING.NYLON

$6.49

$

In Stock, Qty 7

0

213

Husqvarna 532403119

KNOB.CONTROL.CRUSIE.HU

$12.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532421263

PEDAL.FORWARD.PAD.TEX

$8.99

$

In Stock, Qty 5

0

215

Husqvarna 532419482

PEDAL RUBBER REVERSE
(Superseded to 583376501)

$9.99

$

Usually ships in 3-10 days

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 10

0

222

Husqvarna 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 4 left!

0

226

Husqvarna 532401564

BRACKET.MOUNT.TORQUE.K46.TLT

$18.99

$

Usually ships in 3-10 days

0

227

Husqvarna 817490512

SCREW
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

263

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

279

Husqvarna 532437262

LINK
(Superseded to 583517601)

$2.99

$

Usually ships in 3-10 days

0

309

Husqvarna 532165580

PLATE.FASTENING.CROSS.SHAFT

$4.99

$

Usually ships in 3-10 days

0

311

Husqvarna 532169845

WASHER NYL

$4.99

$

Usually ships in 3-10 days

0

312

Husqvarna 532165614

HUB.TAPERED.ROUND.CRD

$6.49

$

Usually ships in 3-10 days

0

313

Husqvarna 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

314

Husqvarna 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

315

Husqvarna 817580520

BOLT.5/16-18X1.25

$5.99

$

In Stock, only 3 left!

0

319

Husqvarna 532436794

SPACER SPACER TRANSAXLE TEX C
(Superseded to 583512001)

$14.99

$

Usually ships in 3-10 days

0

321

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$34.99

$

In Stock, Qty 9

0

324

Husqvarna 532438285

$

$

Not available

326

Husqvarna 872110618

BOLT CARRIAGE

$6.49

$

Usually ships in 3-10 days

0

339

Husqvarna 532436867

STRAP STRAP TORQUE K46 CRD TE
(Superseded to 583512601)

$3.99

$

Usually ships in 3-10 days

0

346

Husqvarna 532430208

$

$

Currently unavailable

351

Husqvarna 532436998

BRACKET BRACKET DECK SWAY
(Superseded to 583515101)

$9.99

$

Usually ships in 3-10 days

0

352

Husqvarna 532435819

BRACKET BRACKET.IDLER
(Superseded to 583507301)

$6.49

$

Usually ships in 3-10 days

0

353

Husqvarna 532436577

BRACKET
(Superseded to 583509501)

$7.49

$

Usually ships in 3-10 days

0

355

Husqvarna 532435669

STRAP STRAP TORQUE K46 CRD TEX
(Superseded to 583506501)

$8.99

$

Usually ships in 3-10 days

0

320

Husqvarna 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0
