CTH 180 - Husqvarna Lawn Tractor (1999-01) CUTTING EQUIPMENT 2 Parts Diagram

Lawn Tractor

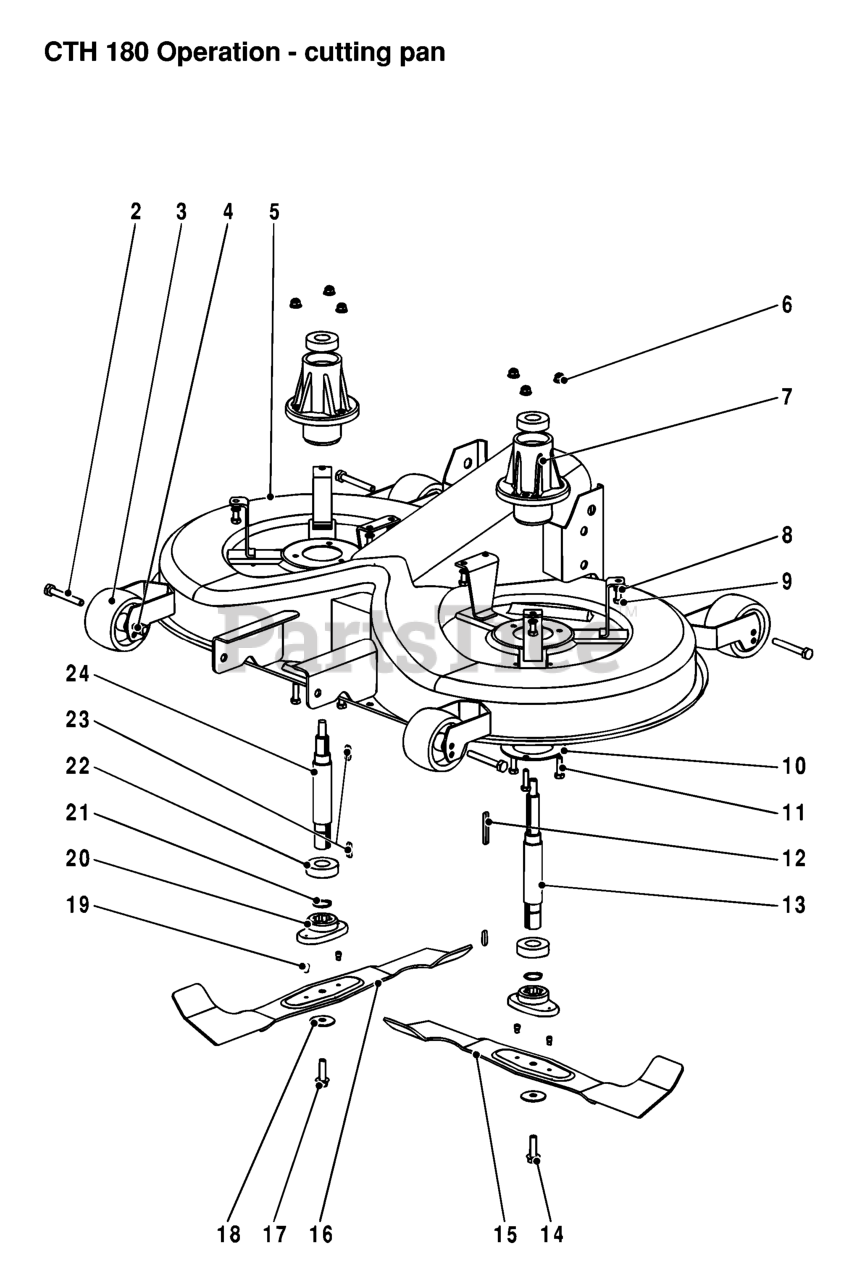

CUTTING EQUIPMENT 2 Parts Diagram

  • Title

18

Husqvarna 531006135

WASHER

$

$

Not available

5

Husqvarna 531006130

COVER CPL.

$

$

Not available

13

Husqvarna 531006208

SHAFT

$

$

Not available

16

Husqvarna 531006134

BLADE

$

$

Not available

15

Husqvarna 531006133

BLADE

$

$

Not available

19

Husqvarna 531005729

PIN

$

$

Not available

21

Husqvarna 531005727

RETAINING RING

$

$

Not available

22

Husqvarna 531005540

BALL BEARING

$

$

Not available

23

Husqvarna 531005544

KEY

$

$

Not available

11

Husqvarna 725245771

SCREW

$

$

Not available

20

Husqvarna 531005728

ADAPTER

$

$

Not available

7

Husqvarna 531005737

HOUSING

$

$

Not available

3

Husqvarna 531006131

WHEEL

$

$

Not available

9

Husqvarna 725245161

BOLT

$

$

Not available

2

Husqvarna 725250971

SCREW

$8.99

$

Usually ships in 3-10 days

0

6

Husqvarna 731711871

NUT

$

$

Not available

14

Husqvarna 531006211

SCREW

$

$

Not available

12

Husqvarna 531005541

KEY

$

$

Not available

17

Husqvarna 531005732

SCREW

$

$

Not available

4

Husqvarna 732252001

NUT

$6.99

$

In Stock, only 3 left!

0

24

Husqvarna 531006136

SHAFT

$

$

Not available

10

Husqvarna 531006210

GROMMET

$

$

Not available

8

Husqvarna 531005824

WASHER

$

$

Not available
