CTH 180 XP (954170091-A) - Husqvarna Lawn Tractor (2003-01) CHASSIS & ENCLOSURES Parts Diagram

Lawn Tractor

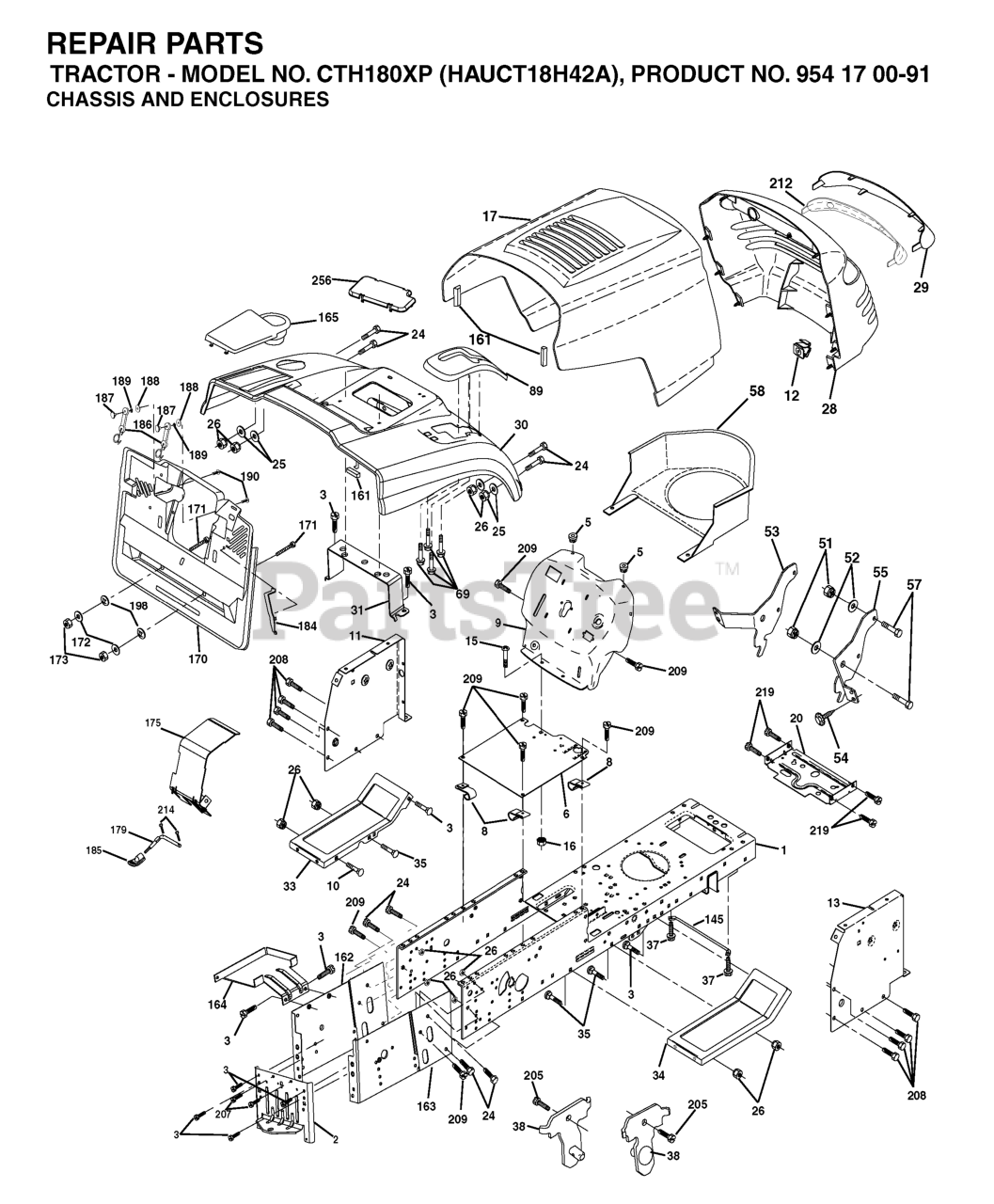

CHASSIS & ENCLOSURES Parts Diagram

  • Title

11

Husqvarna 532174996

PANEL.DASH.LH.LTX

$11.99

$

Usually ships in 3-10 days

0

187

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

165

Husqvarna 532181100

RP.COVER.BATTERY.CRD.GREY
(Superseded to 532441516)

$15.99

$

Usually ships in 3-10 days

0

15

Husqvarna 874180512

Screw, Machine, Truss Head 5/16-18 UNC x 3/4

$4.99

$

Usually ships in 3-10 days

0

170

Husqvarna 532178862

NEEDS DESCRIPTION

$

$

Not available

175

Husqvarna 532180310

NEEDS DESCRIPTION

$

$

Not available

31

Husqvarna 532165156

BRACKET SUPPORT FENDER

$

$

Not available

12

Husqvarna 532145660

CLIP

$3.49

$

In Stock, only 1 left!

0

30

Husqvarna 532179645

NEEDS DESCRIPTION

$

$

Currently unavailable

16

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

209

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

58

Husqvarna 532174930

DUCT, INTAKE AIR

$18.99

$

Usually ships in 3-10 days

0

208

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

In Stock, only 2 left!

0

214

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

162

Husqvarna 532180382

BRACKET
(Superseded to 583100801)

$47.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532176645

LENS
(Superseded to 532146654)

$

$

Not available

55

Husqvarna 532144696

BRACKET

$

$

Not available

198

Husqvarna 532168937

NUT

$4.99

$

Usually ships in 3-10 days

0

186

532160793

LATCH ASSY

$

$

Not available

185

Husqvarna 532181101

$

$

Not available

189

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

173

Husqvarna 873510600

NUT

$6.49

$

Usually ships in 3-10 days

0

207

Husqvarna 817670508

SCREW, 5/16-18 X 1/2

$6.49

$

In Stock, only 2 left!

0

219

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

57

Husqvarna 874780412

BOLT
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532174620

CHASSIS

$136.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532172106

PANEL ASM, DASH RH

$18.99

$

Usually ships in 3-10 days

0

71

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

69

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532180679

PLATE MTG.BATTERY/FUEL TANK

$10.99

$

Usually ships in 3-10 days

0

205

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

190

Husqvarna 871081010

SCREW
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

256

Husqvarna 532181361

COVER FENDER CRD
(Superseded to 532197364)

$133.99

$

Usually ships in 3-10 days

0

51

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

171

Husqvarna 872140620

BOLT

$3.99

$

Usually ships in 3-10 days

0

89

Husqvarna 532181099

COVER.BATTERY.CRD.GREY
(Superseded to 532441516)

$15.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532179845

GRILLE/LENS ASM

$

$

Not available

184

Husqvarna 532174662

BRACKET.ACTUATOR.BAGGER.SRD

$4.99

$

Usually ships in 3-10 days

0

163

Husqvarna 532180383

BRACKET EXTEN CHASSIS RH CRD
(Superseded to 583100901)

$42.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

172

Husqvarna 819132016

WASHER
(Superseded to 819132012)

$3.49

$

In Stock, Qty 20+

0

54

Husqvarna 532161464

SCREW.HEX.WS.HD.8-18 X 7/8

$

$

Not available

34

Husqvarna 532181058

FOOTREST PNT RH
(Superseded to 532442579)

$27.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, Qty 5

0

17

Husqvarna 532162237

HOOD ASM.
(Superseded to 532159639)

$61.99

$

In Stock, only 2 left!

0

53

Husqvarna 532144697

BRACKET.GRILLE.LH

$

$

Not available

3

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 532180384

DRAWBAR
(Superseded to 583101001)

$

$

Not available

38

Husqvarna 532181748

BRACKET ASM PIVOT MOWER REAR
(Superseded to 583117401)

$9.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532181057

FOOTREST PNT LH
(Superseded to 532182507)

$27.99

$

Usually ships in 3-10 days

0

179

Husqvarna 532180376

NEEDS DESCRIPTION

$

$

Not available

9

Husqvarna 532171191

NEEDS DESCRIPTION

$

$

Currently unavailable

164

Husqvarna 532165605

SUPPORT

$

$

Not available

212

Husqvarna 532156229

REPL BY 532 1745-03
(Superseded to 532174503)

$

$

Not available

52

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

161

Husqvarna 532164655

EXTRUSION BUMPER (3 2) (2 2)

$8.99

$

Usually ships in 3-10 days

0

24

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532155923

SADDLE FLAT

$14.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

188

Husqvarna 819061216

WASHER

$4.99

$

In Stock, Qty 16

0
