CTH 182 T (960610310-00) - Husqvarna Lawn Tractor (2010-11) ENGINE Parts Diagram

Lawn Tractor

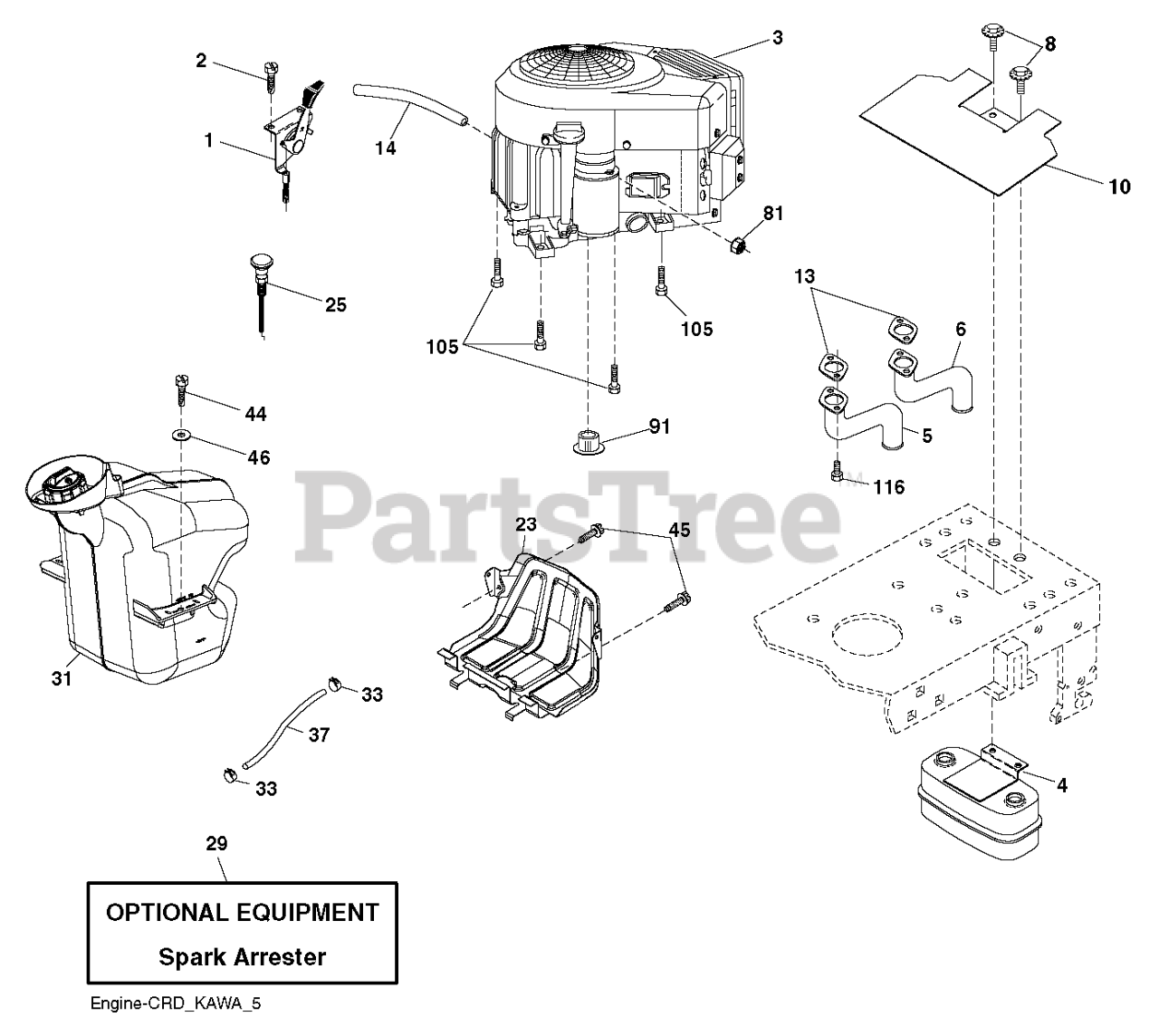

ENGINE Parts Diagram

  • Title

6

Husqvarna 532424766

TUBE.EXHAUST.RH.FR961/FR730
(Superseded to 583955701)

$33.99

$

In Stock, only 2 left!

0

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 11

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

81

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532436086

SHIELD.BROWNING.PNT.GT.V2
(Superseded to 532439870)

$23.99

$

In Stock, Qty 20+

0

105

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

1

Husqvarna 532178385

THROTTLE CABLE
(Superseded to 532175437)

$33.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 9

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$14.99

$

In Stock, Qty 10

0

33

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 10

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 18

0

46

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

31

Husqvarna 532407592

DASH
(Superseded to 532438964)

$51.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

5

Husqvarna 532424765

TUBE.EXHAUST.LH.FR961/FR730
(Superseded to 583955601)

$33.99

$

In Stock, only 4 left!

0

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$53.99

$

In Stock, only 2 left!

0

25

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$41.99

$

In Stock, only 4 left!

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, Qty 10

0

3

000000000

Note: Engine KAWA FS541V-AS51 (437950)

$

$

Not available

10

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

44

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

In Stock, only 2 left!

0

116

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.99

$

In Stock, Qty 5

0
