CTH 182 T (960610318-00) - Husqvarna Lawn Tractor (2010-11) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

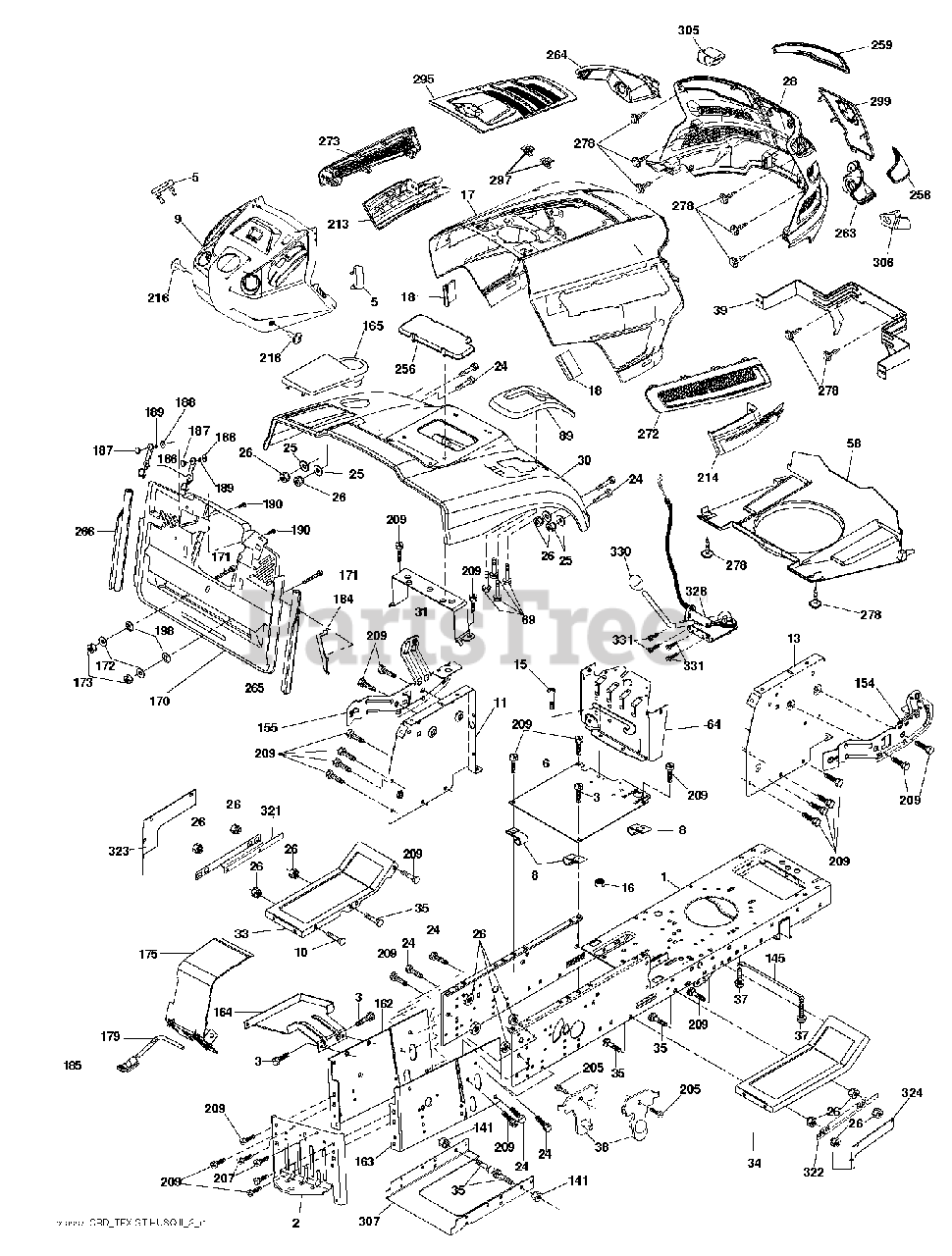

CHASSIS ENCLOSURES Parts Diagram

  • Title

1

Husqvarna 532174620

CHASSIS

$136.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532180384

DRAWBAR
(Superseded to 583101001)

$

$

Not available

3

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 11

0

6

Husqvarna 532184419

PLATE
(Superseded to 583133601)

$12.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532437500

$

$

Currently unavailable

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

11

Husqvarna 532167203

PANEL DASH LH

$24.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532178298

PANEL DASH RH

$

$

Not available

15

Husqvarna 874180512

Bolt

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532441177

HOOD.ASM.HUSQVARNA.GT.TEX.ORAN
(Superseded to 587483301)

$80.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532404742

BUMPER.HOOD.TEX.HUSQVARNA

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532440653

GRILLE.SUBSTRATE.2011.
(Superseded to 597247201)

$100.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532441265

FENDER.PNT.CRD.MS-668

$

$

Not available

31

Husqvarna 532165156

BRACKET SUPPORT FENDER

$

$

Not available

33

Husqvarna 532181057

FOOTREST PNT LH
(Superseded to 532182507)

$27.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532181058

FOOTREST PNT RH
(Superseded to 532442579)

$27.99

$

Usually ships in 3-10 days

0

35

Husqvarna 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532181748

BRACKET ASM PIVOT MOWER REAR
(Superseded to 583117401)

$9.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532436670

BRACKET.PIVOT.HOOD.GT.HUSQ.II

$54.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532439731

AIR DUCT.GTV2(1.66"RING HEIGHT

$48.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532438270

$

$

Not available

69

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

89

Husqvarna 532197377

CONSOLE.CRD.AUTO.GREY.2005
(Superseded to 532441574)

$8.99

$

Usually ships in 3-10 days

0

141

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

145

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

Usually ships in 3-10 days

0

154

Husqvarna 532408690

$

$

Currently unavailable

155

Husqvarna 532408691

$

$

Currently unavailable

162

Husqvarna 532180382

BRACKET
(Superseded to 583100801)

$47.99

$

Usually ships in 3-10 days

0

163

Husqvarna 532180383

BRACKET EXTEN CHASSIS RH CRD
(Superseded to 583100901)

$42.99

$

Usually ships in 3-10 days

0

164

Husqvarna 532165605

SUPPORT

$

$

Not available

165

Husqvarna 532432276

COVER.BATTERY.BGGR.ELE
(Superseded to 532441772)

$

$

Not available

170

Husqvarna 532199489

$

$

Not available

171

Husqvarna 872140620

BOLT

$3.99

$

Usually ships in 3-10 days

0

172

Husqvarna 819132016

WASHER
(Superseded to 819132012)

$3.49

$

In Stock, Qty 20+

0

173

Husqvarna 873510600

NUT **

$6.49

$

Usually ships in 3-10 days

0

175

Husqvarna 532188203

DOOR TRAP
(Superseded to 583707801)

$24.99

$

Usually ships in 3-10 days

0

179

Husqvarna 532188202

ROD PIVOT FBI
(Superseded to 583170601)

$27.99

$

Usually ships in 3-10 days

0

184

Husqvarna 532174662

BRACKET.ACTUATOR.BAGGER.SRD

$4.99

$

Usually ships in 3-10 days

0

185

Husqvarna 532181101

$

$

Not available

186

532160793

LATCH ASSY

$

$

Not available

187

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

188

Husqvarna 819061216

WASHER

$4.99

$

In Stock, Qty 18

0

189

Husqvarna 810071000

LOCKWASHER (3 2)

$4.99

$

In Stock, Qty 20+

0

190

Husqvarna 871081010

SCREW
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

198

Husqvarna 532168937

NUT

$4.99

$

In Stock, only 1 left!

0

205

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

207

Husqvarna 817670508

SCREW, 5/16-18 X 1/2

$6.49

$

In Stock, only 2 left!

0

209

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

213

Husqvarna 532439729

SIDE.TRIM.LH.GT.HUSQ.II.GRAY

$13.99

$

In Stock, only 1 left!

0

214

Husqvarna 532439730

SIDE.TRIM.RH.GT.HUSQ.II

$13.99

$

In Stock, only 1 left!

0

216

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

In Stock, only 2 left!

0

256

Husqvarna 532181361

FENDER.PNT.CRD
(Superseded to 532197364)

$133.99

$

Usually ships in 3-10 days

0

258

Husqvarna 532439732

LENS.HEADLIGHT.RH.GTII.2011
(Superseded to 532443385)

$13.99

$

In Stock, only 2 left!

0

259

Husqvarna 532439733

LENS.HEADLIGHT.LH.GTII.2011

$13.99

$

In Stock, only 1 left!

0

263

Husqvarna 532439734

BEZEL LIGHT.RH.GT.II.MYLAR
(Superseded to 587464801)

$6.99

$

In Stock, Qty 12

0

264

Husqvarna 532439735

BEZEL LIGHT.LH.GT.II.MYLAR
(Superseded to 587464501)

$6.99

$

In Stock, only 3 left!

0

265

Husqvarna 532185704

SEALING
(Superseded to 583146701)

$21.99

$

Usually ships in 3-10 days

0

266

Husqvarna 532185703

SEALING
(Superseded to 583146601)

$21.99

$

Usually ships in 3-10 days

0

272

Husqvarna 532439728

VENT.SIDE.RH.GT.HUSQ.II.

$17.99

$

In Stock, Qty 9

0

273

Husqvarna 532439727

VENT.SIDE.LH.GT.HUSQ.II.498

$17.99

$

In Stock, Qty 14

0

278

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

295

Husqvarna 532440665

VENT.TOP.EXTERNAL.FILL.GT2.GRE
(Superseded to 587485901)

$22.99

$

Usually ships in 3-10 days

0

299

Husqvarna 532439752

APPLIQUE.SUBASM.GT.HUSQ.II
(Superseded to 532444481)

$40.99

$

Usually ships in 3-10 days

0

305

Husqvarna 532437456

INSERT.REFLECTIVE.LH.HUSQ.GTII

$18.99

$

Usually ships in 3-10 days

0

306

Husqvarna 532437455

INSERT.REFLECTIVE.RH.HUSQ.GTII

$18.99

$

Usually ships in 3-10 days

0

307

Husqvarna 532425125

$

$

Not available

321

Husqvarna 532430309

SHIELD INNER LEFT
(Superseded to 583458201)

$17.99

$

Usually ships in 3-10 days

0

322

Husqvarna 532431014

SHIELD INNER RIGHT
(Superseded to 583463601)

$14.99

$

Usually ships in 3-10 days

0

323

Husqvarna 532432400

PLATE LEFT
(Superseded to 583480401)

$24.99

$

Usually ships in 3-10 days

0

324

Husqvarna 532432401

PLATE RIGHT
(Superseded to 583480501)

$17.99

$

Usually ships in 3-10 days

0

328

Husqvarna 532438971

$

$

Not available

330

Husqvarna 532440639

RP KNOB.OVAL.TAPERED.3/8-16BLK
(Superseded to 539132624)

$7.49

$

In Stock, Qty 12

0

331

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$11.99

$

In Stock, Qty 5

0

Husqvarna 532400944

BUMPER.FRONT.BLACK
(Superseded to 531307007)

$83.99

$

Usually ships in 3-10 days

0

297

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, only 2 left!

0
