CTH 182 T (960610318-00) - Husqvarna Lawn Tractor (2010-11) SEAT Parts Diagram

Lawn Tractor

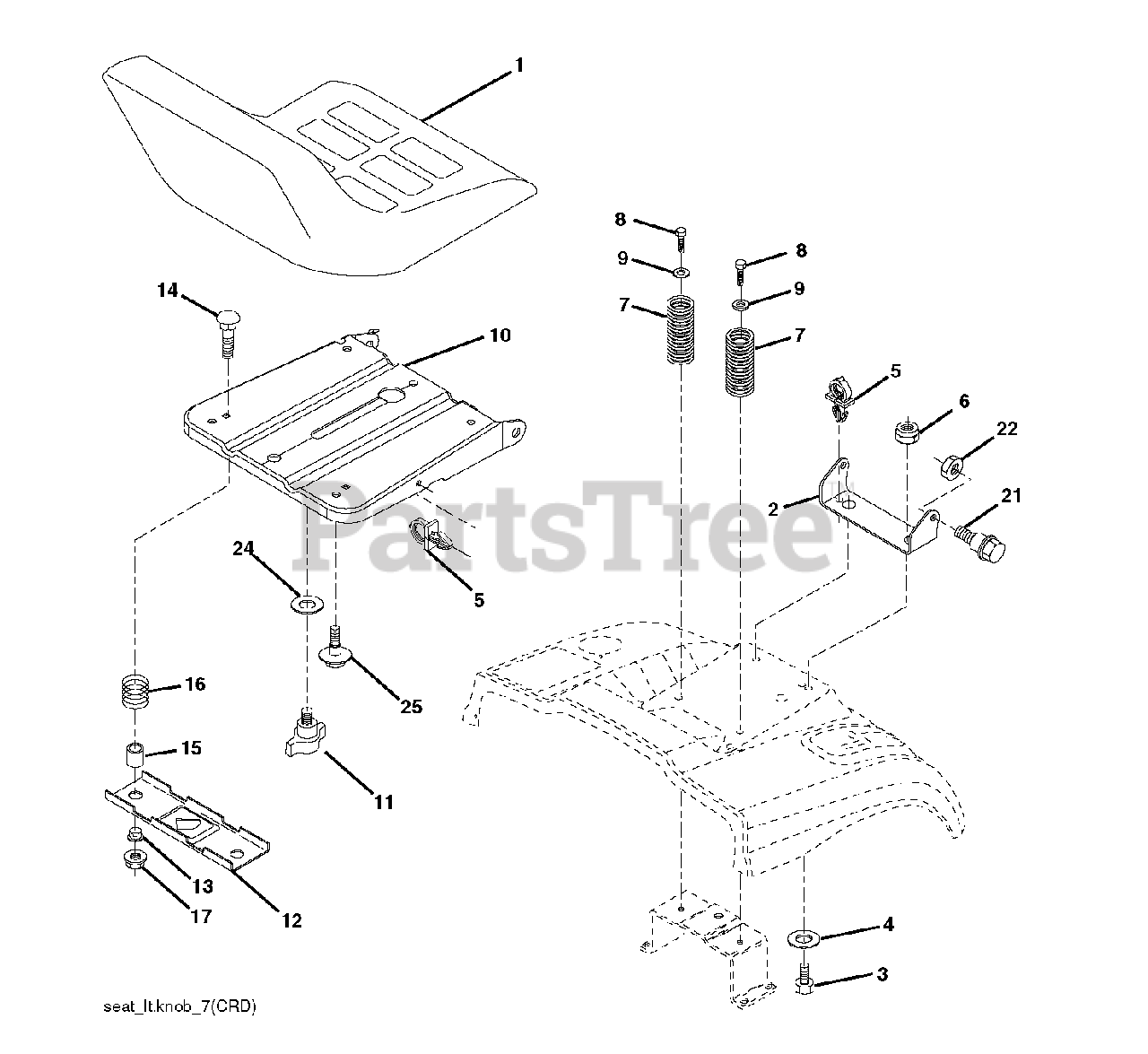

SEAT Parts Diagram

  • Title

1

Husqvarna 532188715

SEAT.XH150.GRY
(Superseded to 532439700)

$

$

Not available

2

Husqvarna 532140551

SEAT PIVOT BRKT

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 871110616

BOLT, HEX 3/8-16X1

$4.99

$

In Stock, only 2 left!

0

4

Husqvarna 819131610

WASHER PM

$6.49

$

In Stock, Qty 7

0

5

Husqvarna 532145006

PUSH CLIP

$6.49

$

In Stock, only 1 left!

0

6

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.49

$

In Stock, Qty 20+

0

8

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 8

0

9

Husqvarna 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532195530

PAN.ASM.SEAT.1SLOT

$21.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532166369

KNOB.SEAT.ADJ.WINGNUT

$10.99

$

In Stock, only 3 left!

0

12

Husqvarna 532174648

BRKT.MNTNG.SWITCH.SEAT.BLACK

$8.99

$

In Stock, only 1 left!

0

13

Husqvarna 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 872050412

BOLT.ROUND.HEAD.SQUARE.NECK

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532121249

SPACER SPLIT

$6.49

$

In Stock, Qty 5

0

16

Husqvarna 532123740

SPRING COMPRESSED

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532123976

NUT T
(Superseded to 873900400)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 532171852

BOLT.SHOULDER.5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 14

0

22

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 819171912

WASHER

$7.49

$

In Stock, only 2 left!

0

25

Husqvarna 532127018

BOLT,SHOULD

$7.49

$

Usually ships in 3-10 days

0
