CTH 2138 R (960510056-01) - Husqvarna Lawn Tractor (2013-01) CHASSIS & ENCLOSURES Parts Diagram

Lawn Tractor

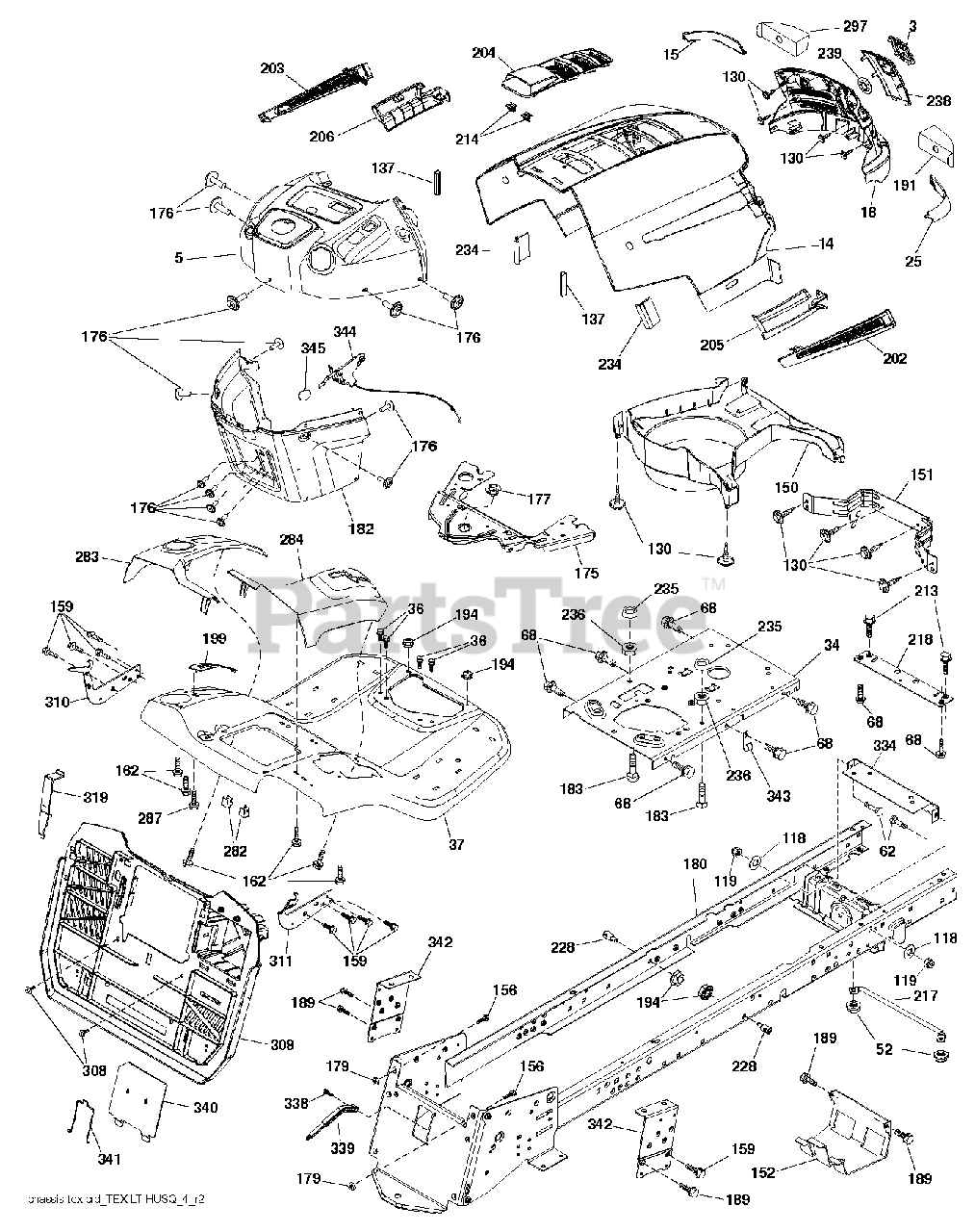

CHASSIS & ENCLOSURES Parts Diagram

  • Title

309

Husqvarna 584441101

BACKPLATE.TEX.CRD
(Superseded to 583509901)

$131.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 13

0

213

Husqvarna 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532441428

LENS.HUSQVARNA LT.RH
(Superseded to 532406664)

$21.99

$

Usually ships in 3-10 days

0

205

Husqvarna 532441344

SKIRT.SIDE.HUSQVARNA.LT.RT

$14.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532195228

BUSHING STEERING

$5.99

$

In Stock, Qty 20+

0

18

Husqvarna 532441368

GRILLE.SVC.HUSQVARNA.GREY
(Superseded to 584382301)

$68.99

$

Usually ships in 3-10 days

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$14.99

$

In Stock, only 2 left!

0

234

Husqvarna 532404742

BUMPER.HOOD.TEX.HUSQVARNA

$7.49

$

Usually ships in 3-10 days

0

118

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

194

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

191

Husqvarna 532416500

INSERT.REFLECTIVE.RH.

$15.99

$

Usually ships in 3-10 days

0

344

Husqvarna 532438970

CONTROL.EZ.MULCH.TEX/CRD
(Superseded to 583536701)

$107.99

$

Usually ships in 3-10 days

0

183

Husqvarna 874520520

BOLT.5/16-18X1-1/4 FULL THD
(Superseded to 595305701)

$4.99

$

In Stock, only 2 left!

0

235

Husqvarna 532406129

SPACER FENDER
(Superseded to 596564201)

$5.99

$

Usually ships in 3-10 days

0

218

Husqvarna 532196395

X-PIECE.HOOD.STOP.NON/

$8.49

$

In Stock, only 1 left!

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$3.99

$

In Stock, Qty 10

0

14

Husqvarna 532441267

HOOD.HUSQVARNA.LT.ORANGE

$143.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532438966

SUBASM.DASH.UPPER.HLT.498
(Superseded to 583536401)

$83.99

$

Usually ships in 3-10 days

0

284

Husqvarna 532440530

CONSL.SHFT.PEDAL.RH.SRD.TEXCRD

$65.99

$

Usually ships in 3-10 days

0

62

Husqvarna 872110608

BOLT D
(Superseded to 596728201)

$4.99

$

In Stock, only 2 left!

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 532171877)

$5.99

$

In Stock, Qty 10

0

228

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE
(Superseded to 593824001)

$4.99

$

In Stock, Qty 9

0

282

Husqvarna 532414110

CLIP.RETAINER.CONSOLE.LT.HUSQ

$3.49

$

In Stock, Qty 14

0

175

Husqvarna 532199472

CROSSMEMBER

$33.99

$

Usually ships in 3-10 days

0

180

Husqvarna 581187101

CHASSIS WLDT TEX CRD
(Superseded to 583902801)

$359.99

$

Usually ships in 3-10 days

0

34

Husqvarna 580910901

PLATE.ENGINE.10GA.CRD.GENII
(Superseded to 593944402)

$101.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532199535

SHIELD.BROWNING.W/TEX
(Superseded to 531169901)

$29.99

$

In Stock, Qty 8

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 581056301

LOGO.HUSQ.GT.LT.CROWN.H
(Superseded to 532430771)

$5.99

$

In Stock, Qty 13

0

199

Husqvarna 532418739

PLATE DECK LIFT
(Superseded to 583371401)

$9.99

$

Usually ships in 3-10 days

0

334

Husqvarna 532442537

BRACKET.ENGINE
(Superseded to 583564401)

$11.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

311

Husqvarna 532446637

RH.ADJUST.HANGER.BRACKET.ASM
(Superseded to 583586601)

$41.99

$

Usually ships in 3-10 days

0

159

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

297

Husqvarna 532406665

INSERT REFLECTIVE

$8.49

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

182

Husqvarna 532436776

DASH DASH. LOWER. PREDATOR. LT
(Superseded to 583511801)

$

$

Not available

308

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, Qty 10

0

--

Husqvarna 532400944

BUMPER.FRONT.BLACK
(Superseded to 531307007)

$81.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$3.49

$

In Stock, only 4 left!

0

137

Husqvarna 532407590

BUMPER DASH

$4.99

$

In Stock, only 2 left!

0

319

Husqvarna 532174662

BRACKET.ACTUATOR.BAGGER.SRD

$5.99

$

Usually ships in 3-10 days

0

119

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

339

Husqvarna 532436641

LEVER LEVER BAGGER
(Superseded to 583510301)

$7.49

$

Usually ships in 3-10 days

0

156

Husqvarna 872140614

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, Qty 10

0

25

Husqvarna 532441427

LENS.HUSQVARNA LT.RH
(Superseded to 532406663)

$21.99

$

Usually ships in 3-10 days

0

283

Husqvarna 532440531

CONSL.DECKLIFT.LH.SRD.TEX.CRD

$51.99

$

Usually ships in 3-10 days

0

338

Husqvarna 532436640

BOLT BOLT SHOULDER
(Superseded to 583510201)

$5.99

$

Usually ships in 3-10 days

0

204

Husqvarna 532441375

SUBASM.TOP.VENT.HUSQ.LT

$22.99

$

In Stock, only 1 left!

0

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE
(Superseded to 596134101)

$3.99

$

In Stock, Qty 14

0

238

Husqvarna 532441374

TRIM.HUSQ LT.668
(Superseded to 532407881)

$27.99

$

Usually ships in 3-10 days

0

341

Husqvarna 532436638

LATCH
(Superseded to 582060801)

$4.99

$

Usually ships in 3-10 days

0

287

Husqvarna 817600406

SCREW 1/4X20

$3.99

$

In Stock, only 2 left!

0

345

Husqvarna 532440639

RP KNOB.OVAL.TAPERED.3/8-16BLK
(Superseded to 539132624)

$7.99

$

In Stock, Qty 10

0

202

Husqvarna 532441342

VENT.SIDE.HUSQVARNA.LT.RT

$14.99

$

Usually ships in 3-10 days

0

179

Husqvarna 532168937

NUT

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532441419

FENDER.TEX.SRD.CRD.BASE

$

$

Not available

203

Husqvarna 532441343

VENT.SIDE.HUSQVARNA.LT.LFT
(Superseded to 532406671)

$11.99

$

In Stock, only 1 left!

0

68

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

150

Husqvarna 532406662

AIR DUCT

$51.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532441345

SKIRT.SIDE.HUSQVARNA.LT.LEFT

$13.99

$

Usually ships in 3-10 days

0

310

Husqvarna 532446636

LH.ADJUST.HANGER.BRACKET.ASM
(Superseded to 583586501)

$41.99

$

Usually ships in 3-10 days

0

151

Husqvarna 532407807

BRACKET PIVOT

$35.99

$

Usually ships in 3-10 days

0

343

Husqvarna 532440749

CLIP CLIP
(Superseded to 582671501)

$

$

Not available

342

Husqvarna 532435938

SUPPORT SUPPORT FENDER
(Superseded to 582826802)

$23.99

$

Usually ships in 3-10 days

0

340

Husqvarna 532440931

DOOR.PNT.BATTERY.TRY.TEX.CRD.

$9.49

$

Usually ships in 3-10 days

0

239

Husqvarna 532404883

IS ITO

$3.99

$

Usually ships in 3-10 days

0
