CTR 61 (5901018) - Ferris CTR Series 61" Rear-Engine Riding Mower, 20hp Kohler 61" Mower Deck - Complete Parts Diagram

CTR Series 61" Rear-Engine Riding Mower, 20hp Kohler

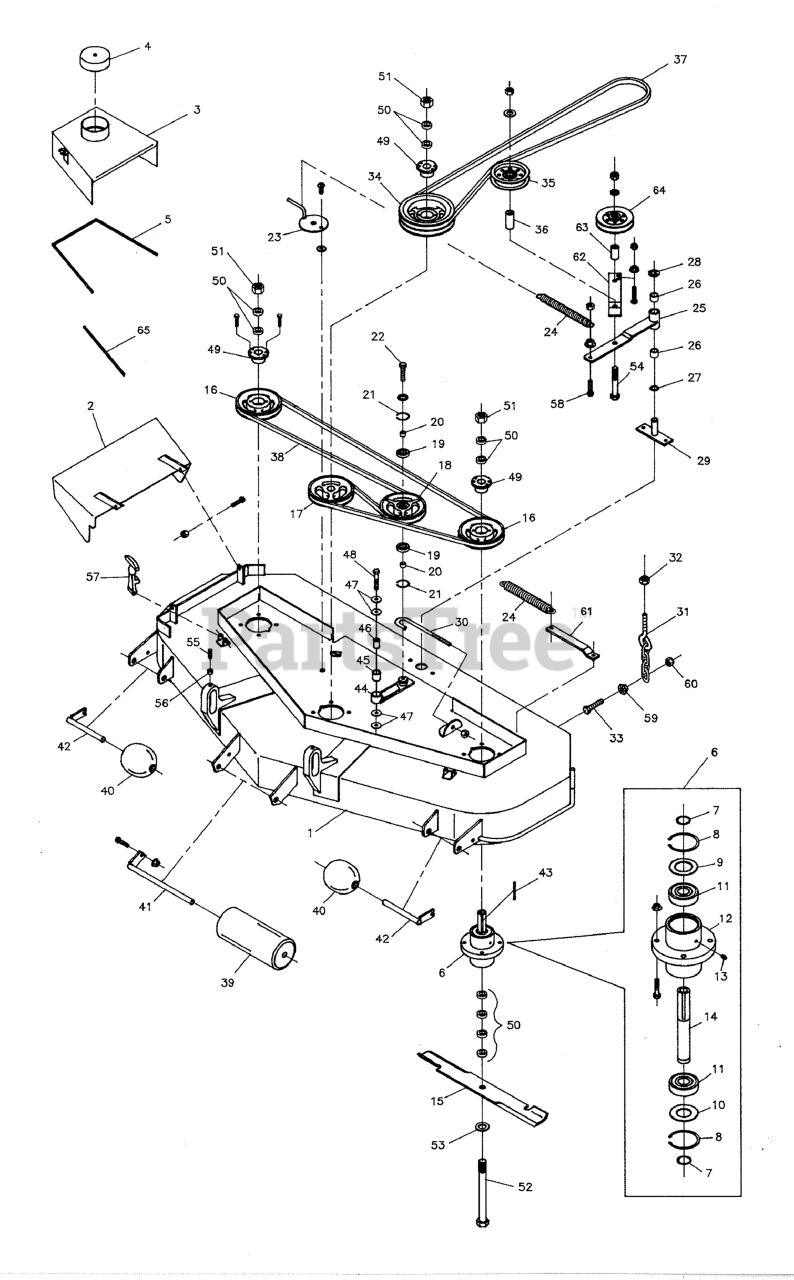

61" Mower Deck - Complete Parts Diagram

  • Title

1

Ferris 30877

61" MOWER HOUSING

$

$

Currently unavailable

2

Ferris 5030883

DISCHARGE CHUTE

$

$

Currently unavailable

3

Ferris 30893R

Deck Guard - RH

$

$

Currently unavailable

3

Ferris 30893L

Deck Guard - LH

Note: (Not Shown)

$

$

Currently unavailable

4

Ferris 5021674

VINYL CAP
(Superseded to 5021674FS)

$7.49

$

Usually ships in 2-12 days

0

5

Ferris 5050853X30

Body Molding

$5.99

$

Usually ships in 2-12 days

0

6

Ferris 5030301

SPINDLE ASSEMBLY, Complete
(Superseded to 5061033SM)

$269.99

$

Usually ships in 2-12 days

0

7

Ferris 5020864

SNAP RING, External

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5020866

SNAP RING, Internal
(Superseded to 5020866SM)

$5.99

$

In Stock, only 2 left!

0

9

Ferris 5041653

SPINDLE WASHER, Top

$10.99

$

Usually ships in 2-12 days

0

10

Ferris 5041672

SPINDLE WASHER, Bottom

$15.99

$

Usually ships in 2-12 days

0

11

Ferris 5020828

BEARING
(Superseded to 5020828SM)

$36.99

$

In Stock, only 2 left!

0

12

Ferris 5030293

SPINDLE HOUSING

$

$

Not available

13

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

14

Ferris 5041480

SPINDLE SHAFT
(Superseded to 5041480SM)

$112.99

$

Usually ships in 2-12 days

0

15

Ferris 5020842

MOWER BLADE, 21"
(Superseded to 5020842ASM)

$28.99

$

In Stock, Qty 12

0

16

Ferris 5020814

PULLEY, Spindle

$82.99

$

Usually ships in 2-12 days

0

17

Ferris 5041478

SPINDLE PULLEY

$106.99

$

Usually ships in 2-12 days

0

18

Ferris 5030819

IDLER PULLEY, Complete

$148.99

$

Usually ships in 2-12 days

0

18

Ferris 5041481

PULLEY, Idler
(Superseded to 5041481FS)

$98.99

$

Usually ships in 2-12 days

0

19

Ferris 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

20

Ferris 5020870

INSERT, Bearing
(Superseded to 5020870SM)

$5.49

$

In Stock, only 3 left!

0

21

Ferris 5020865

SNAP RING, Internal
(Superseded to 5020865FS)

$2.99

$

Usually ships in 2-12 days

0

22

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

Usually ships in 2-12 days

0

23

Ferris 5044518

Spring Tension Base

$

$

Currently unavailable

24

Ferris 5021103

SPRING, Extension
(Superseded to 5021103SM)

$19.99

$

Usually ships in 2-12 days

0

25

Ferris 5044467B

Tension Arm Weldment
(Superseded to 5044467BFS)

$69.99

$

Usually ships in 2-12 days

0

26

Ferris 5020875B

BUSHING, Brass
(Superseded to 5020875BFS)

$3.99

$

Usually ships in 2-12 days

0

27

Ferris 5025520X3

SHIM
(Superseded to 5025520X3SM)

$4.49

$

Usually ships in 2-12 days

0

28

Ferris 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

29

Ferris 5043930

Tension Pivot

$

$

Currently unavailable

30

Ferris 5041671

J-BOLT

$9.49

$

Usually ships in 2-12 days

0

31

Ferris 5044410

Deck Chain Weldment

$

$

Currently unavailable

32

Ferris 44427

Height Adjustment Nut

$

$

Currently unavailable

33

Ferris 5025133X16

BOLT, 7/16-14 x 2, TFL

$

$

Currently unavailable

34

Ferris 5021091

Double Pulley

$168.99

$

Usually ships in 2-12 days

0

35

Ferris 5021002

PULLEY, Backside Idler
(Superseded to 5021002SM)

$40.99

$

In Stock, Qty 5

0

36

Ferris 5043366

SPACER, .50 x 1.00 x 2.25

$13.99

$

Usually ships in 2-12 days

0

37

Ferris 5021753

Belt - Engine #10 Deck
(Superseded to 5021753FS)

$60.99

$

Usually ships in 2-12 days

0

38

Ferris 5020824

BELT, Blade Spindle
(Superseded to 5020824SM)

$112.99

$

Usually ships in 2-12 days

0

39

Ferris 5020785

ROLLER
(Superseded to 5020785SM)

$29.99

$

In Stock, Qty 11

0

40

Ferris 5021745

Small Roller

$

$

Currently unavailable

41

Ferris 5041655A

USE 5105755 - WELD, BRKT,ROLLER PIN,BLK
(Superseded to 5105755)

Note: SECURED W/ 5025013X8 & 5101414

$46.99

$

In Stock, only 1 left!

0

42

Ferris 5044305B

Small Roller Pin

$

$

Currently unavailable

43

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

44

Ferris 5041622

IDLER ARM

$

$

Not available

45

Ferris 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

Usually ships in 2-12 days

0

46

Ferris 5042134

SPACER, .32 x .75 x 1.06
(Superseded to 5042134SM)

$6.49

$

Usually ships in 2-12 days

0

47

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

Usually ships in 2-12 days

0

48

Ferris 5025011X16

BOLT, 5/16-18 X 2
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

49

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

Usually ships in 2-12 days

0

50

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$5.99

$

In Stock, only 4 left!

0

51

Ferris 5025040

NUT, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

Usually ships in 2-12 days

0

52

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

53

Ferris 5025159

WASHER, 5/8" USS

$

$

Currently unavailable

54

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 1 left!

0

55

Ferris 5025063X10

SET SCREW, 3/8-16 x 1-1/4"

$

$

Currently unavailable

56

Ferris 5025034

NUT, 3/8-16 Hex
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

57

Ferris 5020841X1

RUBBER LATCH
(Superseded to 5020841X1SM)

$23.99

$

In Stock, only 1 left!

0

58

Ferris 5025011X10

BOLT, 5/16-18 x 1-1/4
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

59

Ferris 5025129

NUT, 7/16-14 Hex Serrated Flange

$

$

Currently unavailable

60

Ferris 5025125

NUT, 7/16-14 Hex Nylon Lock
(Superseded to 5025125YP)

$3.49

$

In Stock, only 2 left!

0

61

Ferris 5044468

Spring Anchor

$

$

Currently unavailable

62

Ferris 5044462B

Rocker Arm
(Superseded to 5044462BFS)

$33.99

$

Usually ships in 2-12 days

0

63

Ferris 5044463B

Rocker Arm Pivot
(Superseded to 5044463BFS)

$27.99

$

Usually ships in 2-12 days

0

64

Ferris 5021225

Idler Pulley
(Superseded to 5021225FS)

$26.99

$

In Stock, only 1 left!

0

65

Ferris 5050853X14

Body Molding

$

$

Currently unavailable
