Cutter Bar - BCS America 30", 32", 40" Sickle Bar Attachment 30" Cutter Bar Assembly (SN: 024001 - 136014) Parts Diagram

30", 32", 40" Cutter Bar Attachment

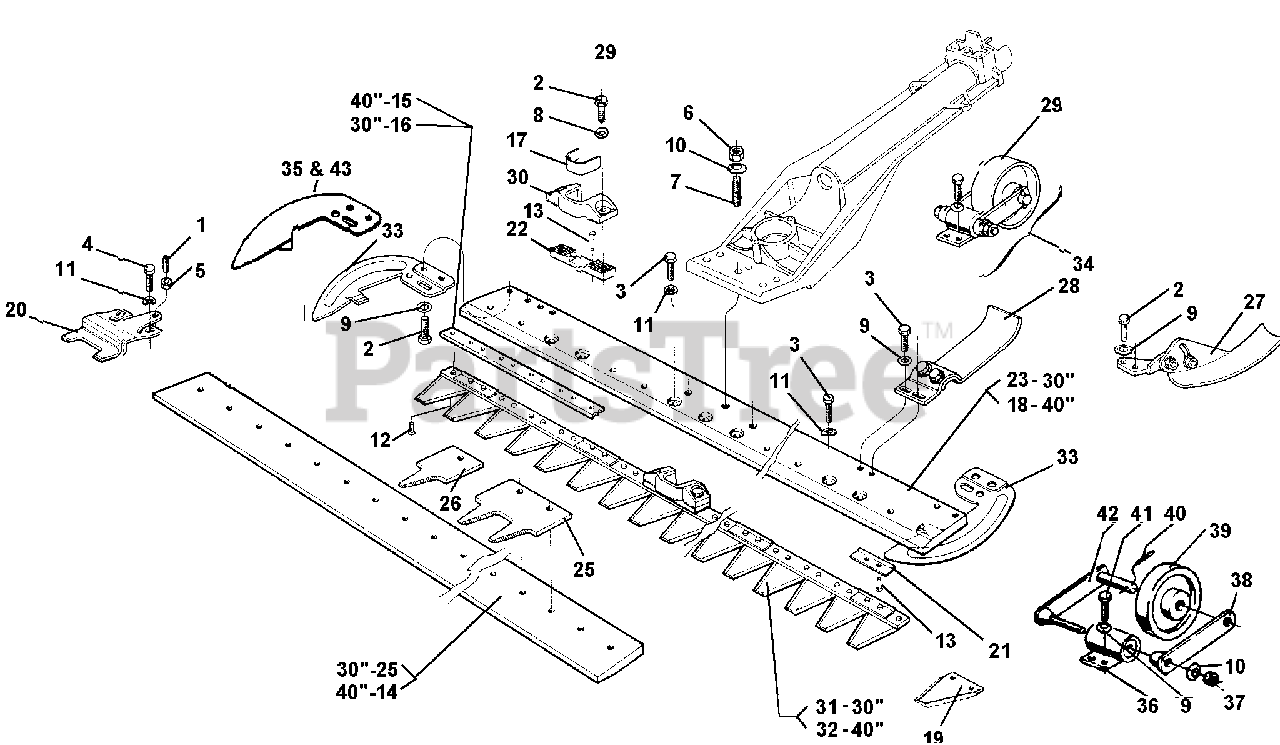

30" Cutter Bar Assembly (SN: 024001 - 136014) Parts Diagram

  • Title

1

BCS America 311.00781

SCREW M8 X 14

$1.99

$

In Stock, Qty 6

0

2

BCS America 311.11151

SCREW M8 X 16

$1.99

$

In Stock, only 4 left!

0

3

BCS America 311.12151

SCREW M8 X 25

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 311.12153

SCREW M8 X 35

$1.49

$

In Stock, Qty 5

0

5

BCS America 312.00124

NUT M8

$1.49

$

Usually ships in 5-8 days

0

6

BCS America 312.41105

SELF LOCKING NUT

$1.99

$

Usually ships in 5-8 days

0

7

BCS America 313.12099

STUD

$2.49

$

Usually ships in 5-8 days

0

8

BCS America 314.11084

WASHER, FLAT 8.4

$0.99

$

In Stock, Qty 5

0

9

BCS America 314.21083

SUPER WASHER 8 DIN 6796

$1.49

$

In Stock, Qty 6

0

10

BCS America 314.21101

SUPER WASHER 10 DIN 6796

$1.99

$

In Stock, Qty 5

0

11

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

12

BCS America 331.12608

RIVET TSV 6.5 X 13

$

$

Not available

13

BCS America 331.12609

RIVET TSV 6.5 X 16

$

$

Not available

14

BCS America 561.50687

SLIDE FOR COMBO BAR 1.00 M

$

$

Currently unavailable

15

BCS America 561.51414

BLADE STRIP

$

$

Currently unavailable

16

BCS America 561.51420

BLADE STRIP

$

$

Currently unavailable

17

BCS America 563.50683

PLATE

$2.99

$

Usually ships in 5-8 days

0

18

BCS America 563.50686

CENTER, CUTTER BAR COMBO 1 M

$172.04

$

Usually ships in 5-8 days

0

19

BCS America 563.50696

SECTION F. NARROW SCORED BLAD

$4.99

$

Usually ships in 5-8 days

0

20

BCS America 563.51400

BLADE HOLDER

$

$

Currently unavailable

21

BCS America 563.51401

PLATE FOR CLEANING

$1.99

$

Usually ships in 5-8 days

0

22

BCS America 563.51403

BLADE COUPLING PLATE

$

$

Currently unavailable

23

BCS America 563.51416

CENTRAL BAR 0.80 MT.

$

$

Currently unavailable

24

BCS America 563.51417

BAR SLIDE

$

$

Currently unavailable

25

BCS America 565.50648

DOUBLE FINGER

$58.99

$

Usually ships in 5-8 days

0

26

BCS America 565.50649

SINGLE FINGER

$34.99

$

Usually ships in 5-8 days

0

27

BCS America 580.43572

SKID NO LONGER AVAILABLE

$

$

Currently unavailable

28

BCS America 580.46677

SLIDE WITH SCREWS

$39.99

$

In Stock, only 2 left!

0

29

BCS America 580.51434

WHEEL D = 100

$21.98

$

Usually ships in 5-8 days

0

30

BCS America 590.50674

BLADE COUPLING

$

$

Not available

31

BCS America 590.59108

SCORED BLADE WITH COUPLING

$156.99

$

Usually ships in 5-8 days

0

32

BCS America 590.49109

SCORED BLADE WITH COUPLING

$

$

Currently unavailable

33

BCS America 922.48918

END GUARD-COMBO BAR (PR)

$37.99

$

In Stock, only 2 left!

0

34

BCS America 922.51425

CUTTER BAR WHEELS - PAIR

$

$

Currently unavailable

35

BCS America 590.48931

LH END GAURD NLA USE REF #33

$

$

Currently unavailable

36

BCS America 590.51426

WHEEL SUPPORT

$30.10

$

Usually ships in 5-8 days

0

37

BCS America 31211100

NUT

$1.49

$

In Stock, only 2 left!

0

38

BCS America 59051430

SUPPORT

$19.68

$

Usually ships in 5-8 days

0

39

BCS America 580.51434

WHEEL D=100

$21.98

$

Usually ships in 5-8 days

0

40

BCS America 342.11042

PIN, LOCKING

$1.49

$

In Stock, Qty 5

0

41

BCS America 313.1215

SREW M8X20

$

$

Currently unavailable

42

BCS America 590.51429

SUPPORT WITH PIN

$

$

Currently unavailable

43

BCS America 590.48932

RH END GAURD NLA USE REF #33

$

$

Currently unavailable
