Cutter Bar - BCS America 30", 32", 40" Sickle Bar Attachment 30" Cutter Bar Control (SN: 74501 & Above) Parts Diagram

30", 32", 40" Cutter Bar Attachment

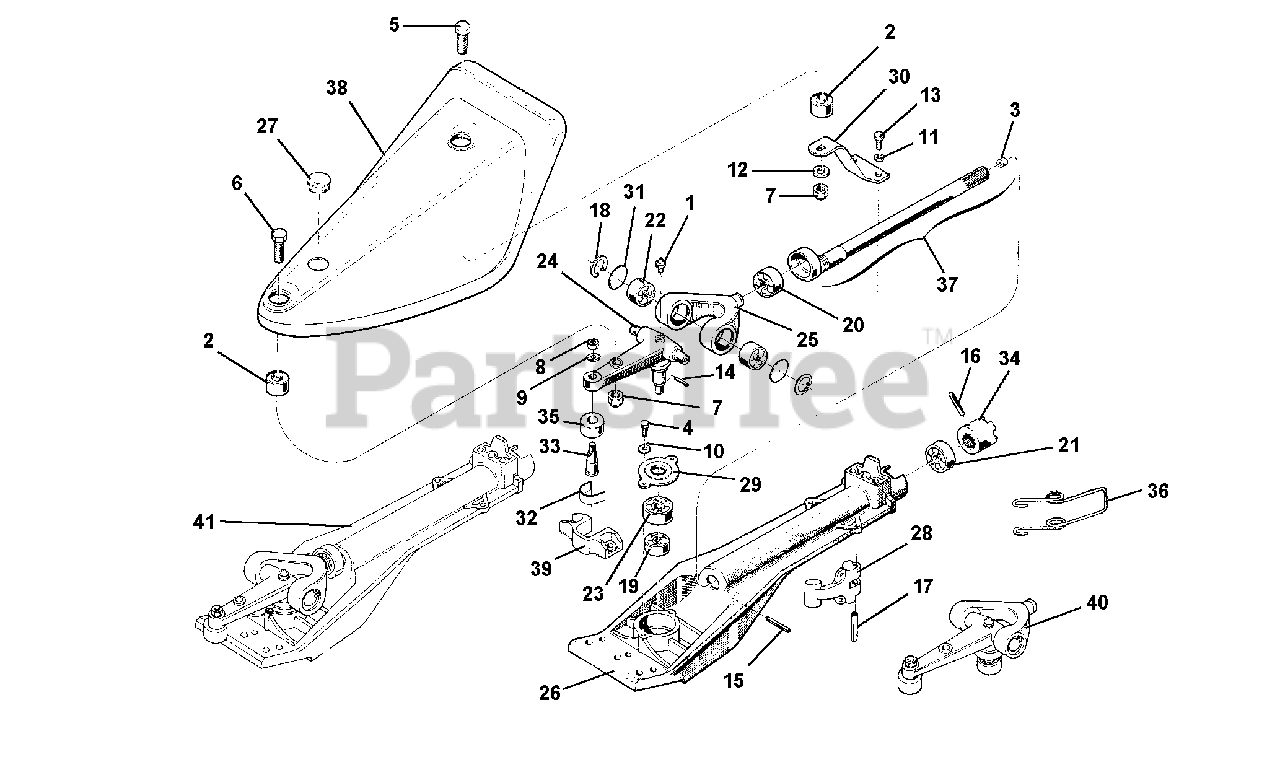

30" Cutter Bar Control (SN: 74501 & Above) Parts Diagram

  • Title

1

BCS America 300.00001

LUBRICATOR M10

$

$

Not available

2

BCS America 300.10102

SILENTBLOC

$68.99

$

In Stock, only 1 left!

0

3

BCS America 30030010

BUSHING

$9.49

$

Usually ships in 5-8 days

0

4

BCS America 311.11091

SCREW TE M6 X 14

$1.49

$

In Stock, only 4 left!

0

5

BCS America 311.12214

SCREW M10 X 45

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 311.12215

SCREW M10 X 60

$1.99

$

Usually ships in 5-8 days

0

7

BCS America 31241100

NUT, SELF LOCKING M10

$1.49

$

Usually ships in 5-8 days

0

8

BCS America 312.41105

SELF LOCKING NUT

$1.99

$

Usually ships in 5-8 days

0

9

BCS America 314.21101

SUPER WASHER 10 DIN 6796

$1.99

$

In Stock, Qty 5

0

10

BCS America 314.22064

WASHER, LOCK 6.4

$0.99

$

Usually ships in 5-8 days

0

11

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 11

0

12

BCS America 314.23105

WASHER, LOCK 10.5

$1.49

$

In Stock, only 3 left!

0

13

BCS America 315.10082

SCREW M8 X 15

$

$

Currently unavailable

14

BCS America 342.11035

PIN, LOCKING 3.5 X 26 DIN 1481

$1.49

$

Usually ships in 5-8 days

0

15

BCS America 342.11055

PIN, LOCKING 5 X 40

$1.49

$

Usually ships in 5-8 days

0

16

BCS America 342.11064

PIN, LOCKING 6 X 40

$1.49

$

Usually ships in 5-8 days

0

17

BCS America 342.13084

SPIRAL PIN 8 X 40

$1.99

$

Usually ships in 5-8 days

0

18

BCS America 351.11036

INSIDE CIRCLIP

$2.49

$

Usually ships in 5-8 days

0

19

BCS America 37111120

BEARING 12 X 37 X 12 6301

$39.99

$

Usually ships in 5-8 days

0

20

BCS America 371.12171

BRNG SKF 17 X 40 X 12 6203 ST

$10.99

$

Usually ships in 5-8 days

0

21

BCS America 371.12203

BEARING 20 X 42 X 12 6004 2RS

$16.99

$

Usually ships in 5-8 days

0

22

BCS America 371.13151

BEARING 6202 Z 15 X 35 X 11

$29.99

$

Usually ships in 5-8 days

0

23

BCS America 37113200

BEARING 6204 Z 20 X 47 X 14

$12.99

$

Usually ships in 5-8 days

0

24

BCS America 525.50655

BLADE CONTROL CRANK

$563.99

$

Usually ships in 5-8 days

0

25

BCS America 525.50656

FORK

$501.99

$

Usually ships in 5-8 days

0

26

BCS America 532.50658

CUTTER BAR SUPPORT

$404.68

$

Usually ships in 5-8 days

0

27

BCS America 551.43593

PLUG FOR D 26 HOLE

$1.49

$

In Stock, only 3 left!

0

28

BCS America 552.50638

LEVER

$17.99

$

Usually ships in 5-8 days

0

29

BCS America 561.50609

BEARING COVER

$11.99

$

Usually ships in 5-8 days

0

30

BCS America 563.50633

ELASTIC CONNECTION

$19.99

$

In Stock, only 1 left!

0

31

BCS America 563.50653

CLOSING DISC

$

$

Currently unavailable

32

BCS America 563.50683

PLATE

$2.99

$

Usually ships in 5-8 days

0

33

BCS America 564.46668

BLADE PIN

$58.99

$

Usually ships in 5-8 days

0

34

BCS America 564.50605

BAR COUPLING

$156.99

$

In Stock, only 1 left!

0

35

BCS America 564.50654

BLADE BUSHING

$84.99

$

Usually ships in 5-8 days

0

36

BCS America 580.50652

LONG SPRING HOOK

$26.99

$

Usually ships in 5-8 days

0

37

BCS America 590.50601

SHAFT WITH BUSH

$394.99

$

Usually ships in 5-8 days

0

38

BCS America 59050640

OSCILLATING PROTECTION

$303.99

$

Usually ships in 5-8 days

0

39

BCS America 590.50674

BLADE COUPLING

$

$

Not available

40

BCS America 592.50676

CRANK WITH COVER

$1463.99

$

Usually ships in 5-8 days

0

41

BCS America 599.90265

CUTTER BAR ASSEMBLY 205

$

$

Currently unavailable
