Cutter Bar - BCS America Duplex Sickle Bar Mower Attachment Front Guard (SN: 000001 - 474945) Parts Diagram

Duplex Cutter Bar Attachment

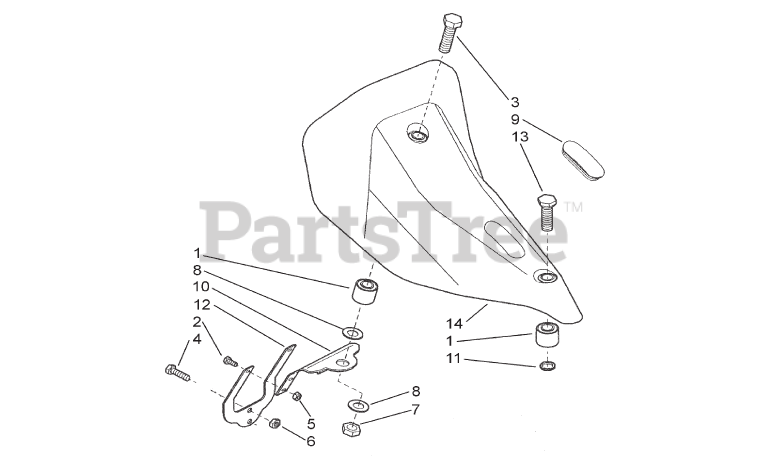

Front Guard (SN: 000001 - 474945) Parts Diagram

  • Title

1

BCS America 300.10144

RUBBER MOUNT, M14X60X25X28

$29.99

$

Usually ships in 5-8 days

0

2

BCS America 311.11091

CAPSCREW, M6X14

$1.49

$

In Stock, Qty 5

0

3

BCS America 311.11331

CAPSCREW, M14X50

$6.99

$

Usually ships in 5-8 days

0

4

BCS America 311.12152

CAPSCREW, M8X30

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 312.41060

LOCKNUT, M6 STANDARD

$0.99

$

In Stock, Qty 8

0

6

BCS America 312.41080

LOCKNUT, M8 STANDARD

$0.99

$

In Stock, Qty 10

0

7

BCS America 312.41140

LOCKNUT, M14 LOW

$1.99

$

Usually ships in 5-8 days

0

8

BCS America 314.23150

WASHER, LOCK

$1.99

$

Usually ships in 5-8 days

0

9

BCS America 551.43495

PLUG OVAL PROTECTION

$8.99

$

Usually ships in 5-8 days

0

10

BCS America 563.58563

COUPLER UPPER

$32.99

$

Usually ships in 5-8 days

0

11

BCS America 563.58566

WASHER, M15X20X2.5

$21.99

$

Usually ships in 5-8 days

0

12

BCS America 563.59180

COUPLING LOWER

$34.99

$

Usually ships in 5-8 days

0

13

BCS America 580.58562

SCREW SPECIAL, M14X45

$18.99

$

In Stock, only 1 left!

0

14

BCS America 592.58592

HOOD, CUTTER BAR DRY TRAN
(Superseded to 592.58861)

$290.99

$

Usually ships in 5-8 days

0
