Cutter Bar - BCS America Duplex Sickle Bar Mower Attachment Transmission (SN: 000001 - 326505) Parts Diagram

Duplex Cutter Bar Attachment

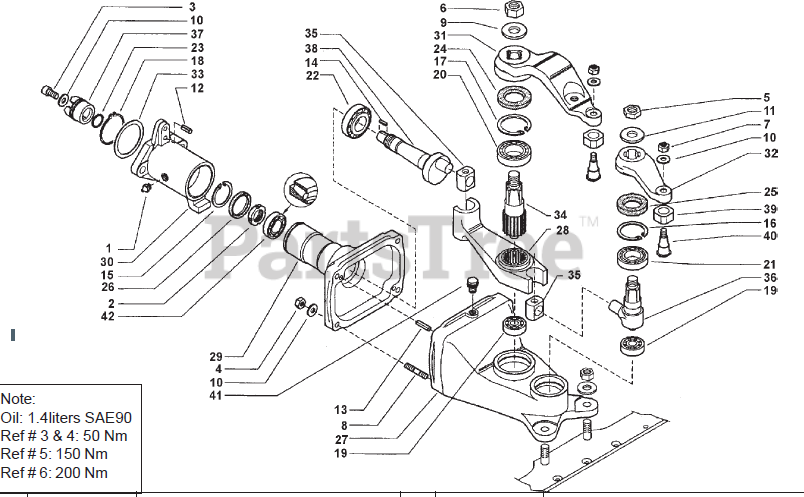

Transmission (SN: 000001 - 326505) Parts Diagram

  • Title

1

BCS America 300.00001

GREASE ZERK

$

$

Not available

2

BCS America 300.90251

NUT RING, M25X1.5

$16.99

$

Usually ships in 5-8 days

0

3

BCS America 311.52098

SCREW, M10X20

$2.99

$

Usually ships in 5-8 days

0

4

BCS America 312.11100

NUT, M10

$1.49

$

In Stock, only 2 left!

0

5

BCS America 312.31181

NUT, M18X1.5

$2.49

$

Usually ships in 5-8 days

0

6

BCS America 312.31184

NUT, M20

$4.49

$

In Stock, only 1 left!

0

7

BCS America 312.41105

LOCKNUT, M10, DEFORMED

$1.99

$

Usually ships in 5-8 days

0

8

BCS America 313.12114

STUD,M10X50X22X14

$10.99

$

Usually ships in 5-8 days

0

9

BCS America 314.21060

WASHER, SUPER, M20

$10.99

$

In Stock, only 1 left!

0

10

BCS America 314.21101

WASHER, SUPER, M10

$1.99

$

In Stock, Qty 5

0

11

BCS America 314.21253

WASHER, SUPER, M18

$9.49

$

Usually ships in 5-8 days

0

12

BCS America 342.11087

PIN, SPLIT, M8X20

$1.49

$

Usually ships in 5-8 days

0

13

BCS America 342.21080

PIN, SPLIT, M8X30

$1.99

$

Usually ships in 5-8 days

0

14

BCS America 343.21072

KEY, 5X3X15

$2.99

$

Usually ships in 5-8 days

0

15

BCS America 351.11050

SNAP RING, D50

$2.49

$

Usually ships in 5-8 days

0

16

BCS America 351.11055

SNAP RING, INTERNAL D 55

$2.49

$

In Stock, only 1 left!

0

17

BCS America 351.11062

SNAP RING, INTERNAL D 62

$2.49

$

Usually ships in 5-8 days

0

18

BCS America 351.21060

CIRCLIP, D 60

$3.49

$

Usually ships in 5-8 days

0

19

BCS America 371.11152

BEARING, M15X42X13

$17.99

$

Usually ships in 5-8 days

0

20

BCS America 371.11349

BEARING, M35X62X14

$28.99

$

Usually ships in 5-8 days

0

21

BCS America 371.12229

BEARING, M30X55X13

$19.99

$

In Stock, only 1 left!

0

22

BCS America 372.21300

BEARING, M30X62X17.25

$

$

Currently unavailable

23

BCS America 381.12200

O-RING

$1.49

$

Usually ships in 5-8 days

0

24

BCS America 382.02499

OIL SEAL, 35X62X7

$18.99

$

Usually ships in 5-8 days

0

25

BCS America 382.13008

OIL SEAL, 30X55X10 BAUSL

$10.99

$

Usually ships in 5-8 days

0

26

BCS America 382.13801

OIL SEAL, M38X50X7

$15.99

$

Usually ships in 5-8 days

0

27

BCS America 513.58500

BLADE CONTROL BOX

$648.99

$

Usually ships in 5-8 days

0

28

BCS America 513.58503

CRANK INSIDE

$520.99

$

Usually ships in 5-8 days

0

29

BCS America 513.58546

DRIVE SUPPORT F/DUPLEX

$507.99

$

Usually ships in 5-8 days

0

30

BCS America 513.58963

SHORT BAR CONTROL BUSHING

$219.99

$

Usually ships in 5-8 days

0

31

BCS America 523.58612

CRANK CONTROL UPPER

$

$

Currently unavailable

32

BCS America 523.58587

CRANK CONTROL LOWER

$292.99

$

Usually ships in 5-8 days

0

33

BCS America 563.58964

SPACER RING 1.5 THICK

$11.99

$

Usually ships in 5-8 days

0

34

BCS America 564.46702

SHAFT CONNECTING ROD

$

$

Currently unavailable

35

BCS America 564.58506

BARREL

$140.99

$

Usually ships in 5-8 days

0

36

BCS America 564.58541

CONTROL SHAFT COMB

$338.99

$

Usually ships in 5-8 days

0

37

BCS America 564.58557

COUPLING CONICAL 3 TOOTH

$169.99

$

In Stock, only 1 left!

0

38

BCS America 564.58558

SHAFT

$291.99

$

Usually ships in 5-8 days

0

39

BCS America 564.58615

BUSHING

$98.99

$

Usually ships in 5-8 days

0

40

BCS America 564.58616

PIN FOR BLADE

$58.99

$

Usually ships in 5-8 days

0

41

BCS America 590.51045

OIL PLUG

$18.99

$

Usually ships in 5-8 days

0

42

BCS America F0812705000

BEARING, 32005 25X47X15

$80.99

$

Usually ships in 5-8 days

0
