Cutter Bar - BCS America Sickle Bar Mower Attachment (1994 & Before) Spline Shaft Combo Bar (SN: 024001 - 138999) Parts Diagram

PTO Cutter Bar Attachment

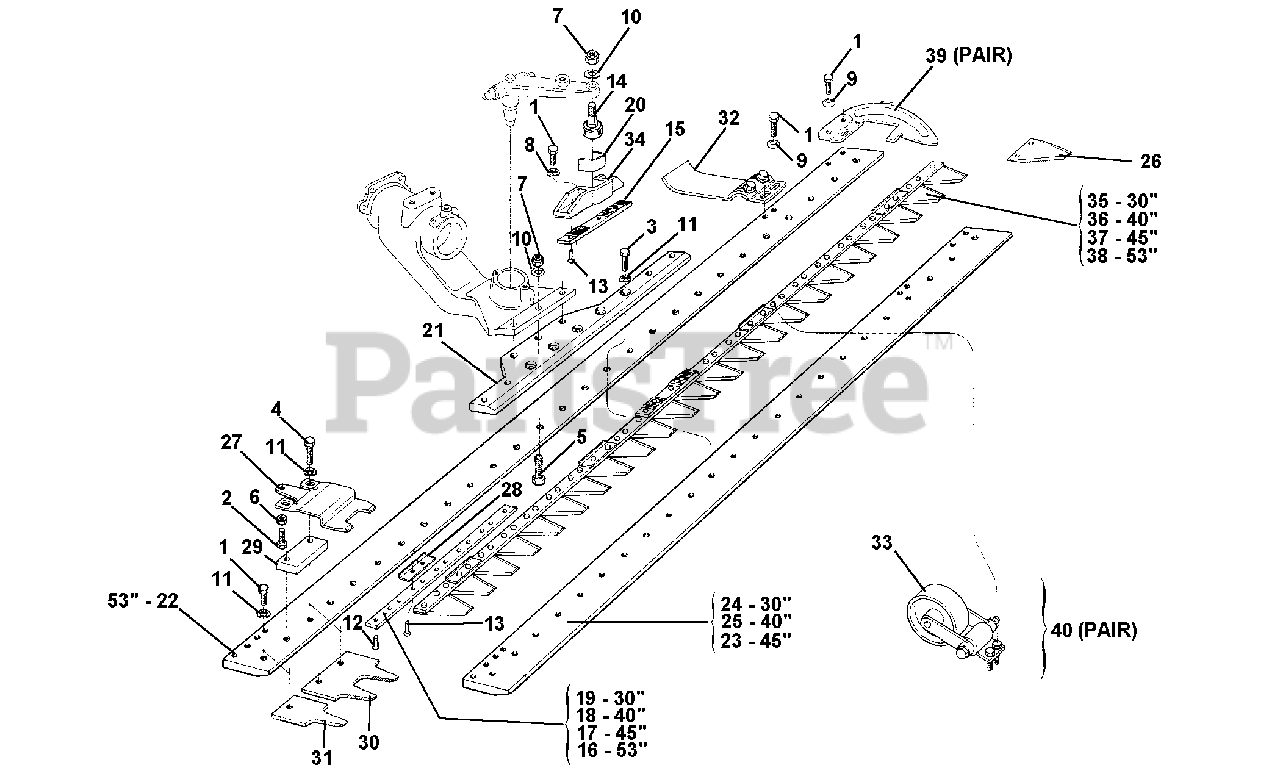

Spline Shaft Combo Bar (SN: 024001 - 138999) Parts Diagram

  • Title

1

BCS America 311.11151

SCREW M8 X 16

$1.99

$

In Stock, only 4 left!

0

2

BCS America 31112150

SCREW M8 X 20

$1.49

$

In Stock, only 2 left!

0

3

BCS America 311.12151

SCREW M8 X 25

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 311.12153

SCREW M8 X 35

$1.49

$

In Stock, Qty 5

0

5

BCS America 311.13097

SCREW

$1.99

$

In Stock, only 3 left!

0

6

BCS America 31211080

NUT M8

$0.99

$

In Stock, Qty 8

0

7

BCS America 312.41105

SELF LOCKING NUT

$1.99

$

Usually ships in 5-8 days

0

8

BCS America 314.11084

WASHER, FLAT 8.4

$0.99

$

In Stock, Qty 5

0

9

BCS America 314.21083

SUPER WASHER 8 DIN 6796

$1.49

$

In Stock, Qty 6

0

10

BCS America 314.21101

SUPER WASHER 10 DIN 6796

$1.99

$

In Stock, Qty 5

0

11

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

12

BCS America 331.12608

RIVET TSV 6.5 X 13

$

$

Not available

13

BCS America 331.12609

RIVET TSV 6.5 X 16

$

$

Not available

14

BCS America 52448920

BLADE CONTROL PIN

$44.99

$

In Stock, only 1 left!

0

15

BCS America 561.48904

PLATE FOR BLADE COUPLING

$

$

Currently unavailable

16

BCS America 561.48907

STRIP FOR BLADE MT. 1.35

$38.99

$

Usually ships in 5-8 days

0

17

BCS America 56148910

STRIP FOR BLADE MT. 1.15

$

$

Not available

18

BCS America 561.51414

BLADE STRIP

$

$

Currently unavailable

19

BCS America 56151420

BLADE STRIP

$

$

Not available

20

BCS America 563.48539

PLATE

$

$

Currently unavailable

21

BCS America 563.48912

BAR COUPLING

$166.99

$

Usually ships in 5-8 days

0

22

BCS America 563.48914

SLIDE FOR CUTTER BAR

$461.99

$

Usually ships in 5-8 days

0

23

BCS America 563.48915

SLIDE BAR

$415.99

$

Usually ships in 5-8 days

0

24

BCS America 563.48929

SLIDE COMBO BAR, 0.80

$257.99

$

Usually ships in 5-8 days

0

25

BCS America 56348930

SLIDE COMBO BAR 1.0 MT

$366.99

$

Usually ships in 5-8 days

0

26

BCS America 563.50696

SECTION F. NARROW SCORED BLADE

$4.99

$

Usually ships in 5-8 days

0

27

BCS America 56351400

BLADE HOLDER

$34.99

$

In Stock, only 1 left!

0

28

BCS America 563.51401

PLATE FOR CLEANING

$1.99

$

Usually ships in 5-8 days

0

29

BCS America 563.51402

BLADE GUIDE BLOCK

$

$

Currently unavailable

30

BCS America 565.50648

DOUBLE FINGER

$58.99

$

Usually ships in 5-8 days

0

31

BCS America 565.50649

SINGLE FINGER

$34.99

$

Usually ships in 5-8 days

0

32

BCS America 580.46677

SLIDE WITH SCREWS

$39.99

$

In Stock, only 2 left!

0

33

BCS America 580.51434

WHEEL D = 100

$21.98

$

Usually ships in 5-8 days

0

34

BCS America 590.48536

BLADE CONNECTION

$

$

Currently unavailable

35

BCS America 590.59063

SCORED COMBO BLADE 0.80 M.

$

$

Currently unavailable

36

BCS America 590.59064

SCORED COMBO BLADE 1M.

$

$

Currently unavailable

37

BCS America 590.59065

SCORED CENTRAL BLADE 1.15 MT.

$

$

Currently unavailable

38

BCS America 590.59066

SCORED CENTRAL KNIFE 1.35

$

$

Currently unavailable

39

BCS America 922.48918

END GUARD-COMBO BAR (PR)

$37.99

$

In Stock, only 2 left!

0

40

BCS America 922.51425

CUTTER BAR WHEELS - PAIR

$

$

Currently unavailable
