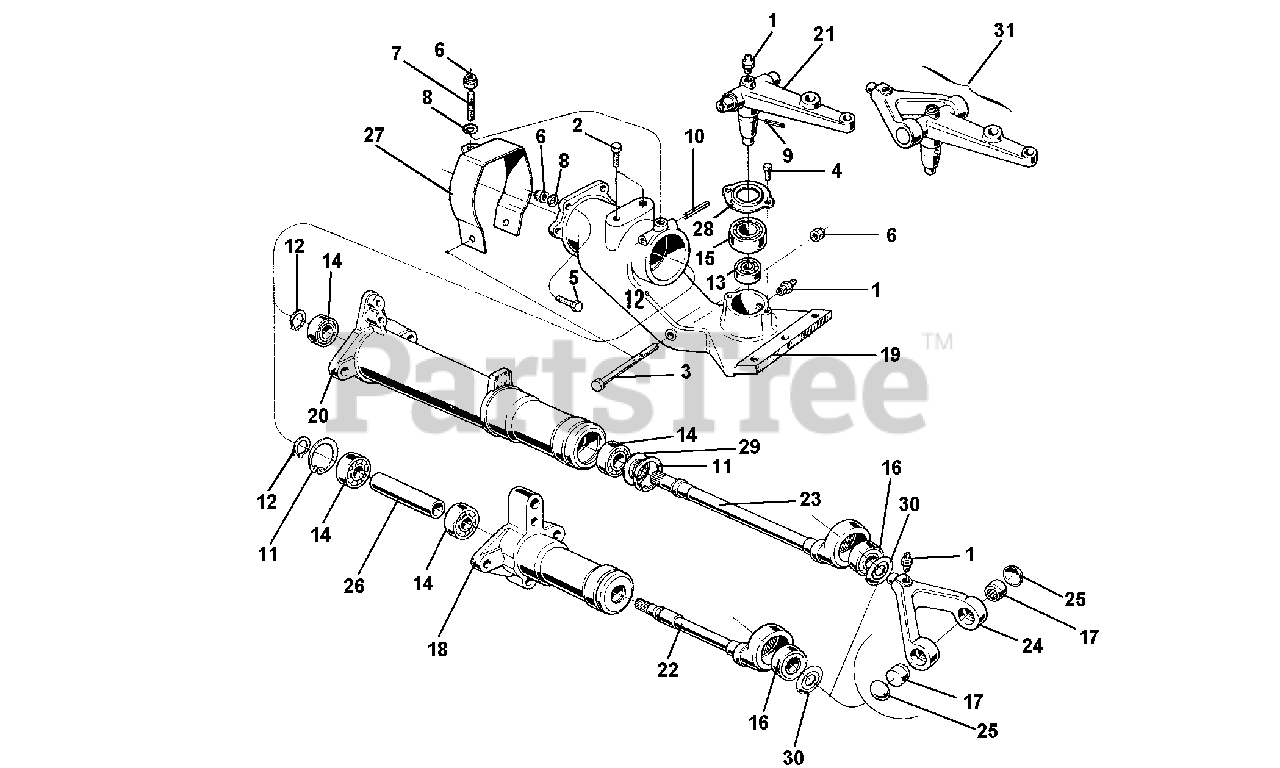

Cutter Bar - BCS America Sickle Bar Mower Attachment (1994 & Before) Spline Shaft Cutter Bar Control (SN: 74001 - 92050) Parts Diagram

PTO Cutter Bar Attachment

Spline Shaft Cutter Bar Control (SN: 74001 - 92050) Parts Diagram

  • Title

1

BCS America 300.00001

LUBRICATOR M10

$

$

Not available

2

BCS America 311.11150

SCREW TE M8 X 12

$

$

Currently unavailable

3

BCS America 311.11165

SCREW TE M8 X 100

$1.99

$

Usually ships in 5-8 days

0

4

BCS America 31112090

SCREW TE M6 X 16

$0.99

$

In Stock, Qty 10

0

5

BCS America 311.12151

SCREW M8 X 25

$1.49

$

Usually ships in 5-8 days

0

6

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

7

BCS America 313.12076

STUD

$3.99

$

Usually ships in 5-8 days

0

8

BCS America 314.11084

WASHER, FLAT 8.4

$0.99

$

In Stock, only 4 left!

0

9

BCS America 342.11041

PIN, LOCKING 4 X 35

$1.49

$

In Stock, only 4 left!

0

10

BCS America 342.13066

LOCKING PIN 6 X 60

$2.49

$

Usually ships in 5-8 days

0

11

BCS America 351.11047

CIRCLIP, INTERN. D 47

$1.99

$

In Stock, only 3 left!

0

12

BCS America 35121020

CIRCLIP, EXTERN. D 20

$1.49

$

In Stock, Qty 8

0

13

BCS America 37111150

BEARING 15 X 35 X 11 6202

$

$

Not available

14

BCS America 37112200

BEARING 20 X 47 X 14 6204 2RS ST

$

$

Not available

15

BCS America 371.12253

BEARING

$

$

Currently unavailable

16

BCS America 371.13201

BEARING

$19.99

$

Usually ships in 5-8 days

0

17

BCS America 373.32001

BUSH PIT VIOL 44855000

$47.99

$

In Stock, only 2 left!

0

18

BCS America 512.43501

BUSHING WITH FLANGE

$

$

Not available

19

BCS America 512.43512

BAR SUPPORT

$1217.99

$

Usually ships in 5-8 days

0

20

BCS America 51249390

BUSHING

$848.99

$

Usually ships in 5-8 days

0

21

BCS America 524.48502

REINFORCED BLADE CRANK

$

$

Currently unavailable

22

BCS America 524.48512

ECCENTRIC SHAFT

$154.68

$

Usually ships in 5-8 days

0

23

BCS America 524.49392

LONG ECCENTRIC SHAFT

$420.99

$

Usually ships in 5-8 days

0

24

BCS America 52548510

FORK

$176.99

$

Usually ships in 5-8 days

0

25

BCS America 561.43497

BOTTOM

$2.99

$

In Stock, only 2 left!

0

26

BCS America 561.43506

SPACER

$33.99

$

Usually ships in 5-8 days

0

27

BCS America 561.43507

ECCENTRIC PROTECTION

$34.99

$

Usually ships in 5-8 days

0

28

BCS America 561.43516

COVER, BEARING

$7.99

$

In Stock, only 1 left!

0

29

BCS America 561.49389

GUARD END

$5.99

$

Usually ships in 5-8 days

0

30

BCS America 571.40533

END, LOWER

$10.99

$

In Stock, only 1 left!

0

31

BCS America 590.48501

CRANK WITH FORK

$

$

Currently unavailable
