Cutter Bar - BCS America Sickle Bar Mower Attachment (1994 & Before) Spline Shaft Cutter Bar Hood (SN: 10000 - 74000) Parts Diagram

PTO Cutter Bar Attachment

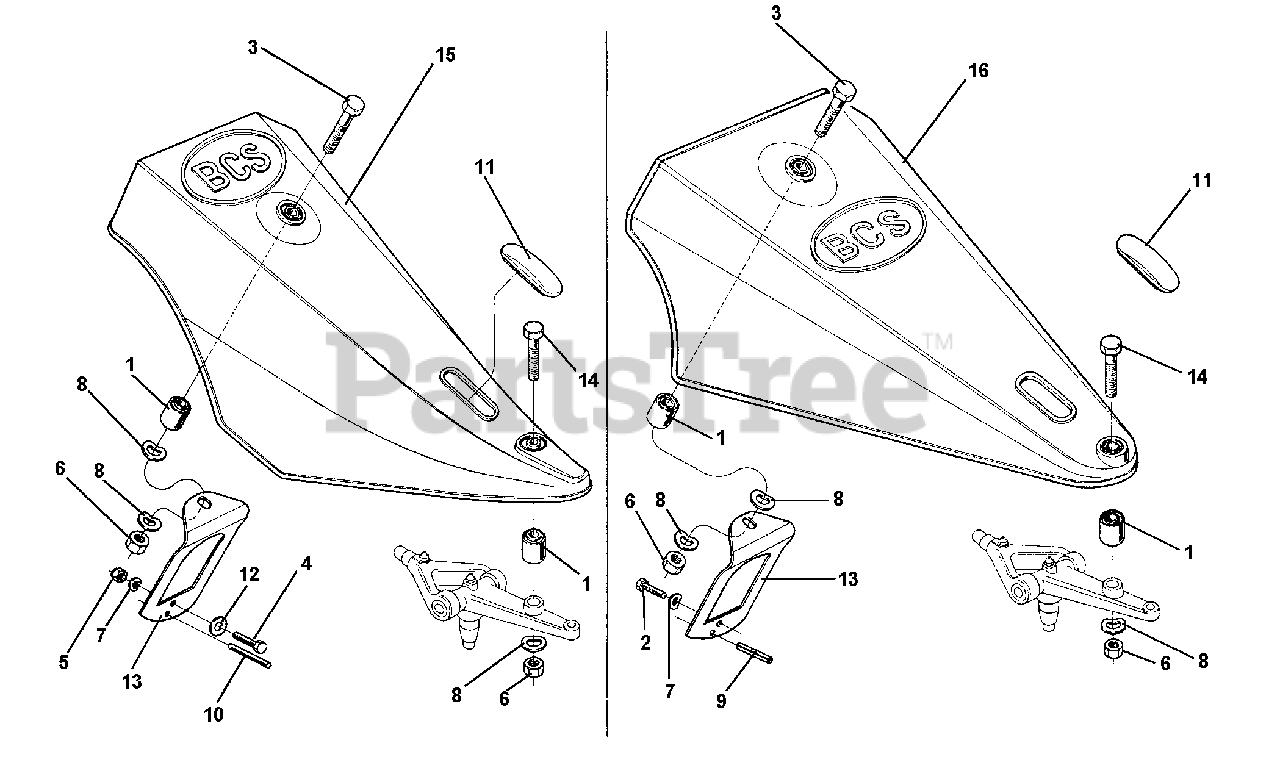

Spline Shaft Cutter Bar Hood (SN: 10000 - 74000) Parts Diagram

  • Title

1

BCS America 30010140

SILENTBLOC 14 X 30 X 25 X 28

$

$

Not available

2

BCS America 311.11151

SCREW M8 X 16

$1.99

$

In Stock, only 4 left!

0

3

BCS America 311.11331

SCREW TE M14 X 50

$6.99

$

Usually ships in 5-8 days

0

4

BCS America 311.12157

SCREW M8 X 50

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

6

BCS America 31241140

NUT, SELF LOCKING M14 LOW

$1.99

$

Usually ships in 5-8 days

0

7

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

8

BCS America 31423150

WASHER, LOCK 15

$1.99

$

Usually ships in 5-8 days

0

9

BCS America 342.11081

SPRING PIN

$

$

Currently unavailable

10

BCS America 342.11083

PIN, LOCKING 8 X 36

$1.99

$

Usually ships in 5-8 days

0

11

BCS America 551.43495

OVAL PLUG FOR PROTECTION

$8.99

$

Usually ships in 5-8 days

0

12

BCS America 56143010

WASHER 8.5 X 24 X 4

$1.49

$

Usually ships in 5-8 days

0

13

BCS America 563.43842

HOOK SPRING

$

$

Currently unavailable

14

BCS America 580.43542

SCREW, SPECIAL M14

$27.99

$

Usually ships in 5-8 days

0

15

BCS America 590.43567

FT PROTECTION COMPL. POLYES.

$199.99

$

Usually ships in 5-8 days

0

16

BCS America 592.49399

GUARD

$

$

Currently unavailable
