Cutter Bar - BCS America Sickle Bar Mower Attachment (1994 & Before) Spline Shaft Oil Bath Control (SN: 10000 - 31109) Parts Diagram

PTO Cutter Bar Attachment

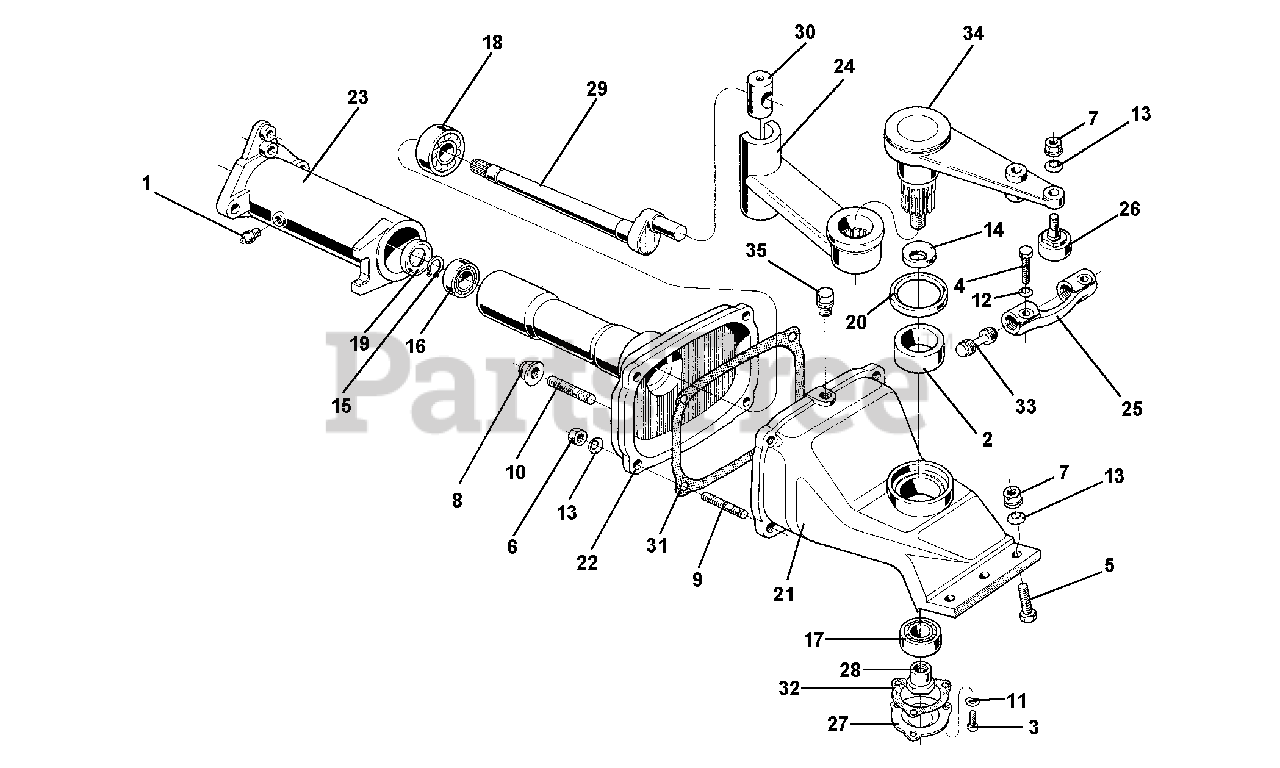

Spline Shaft Oil Bath Control (SN: 10000 - 31109) Parts Diagram

  • Title

1

BCS America 300.00001

LUBRICATOR M10

$

$

Not available

2

BCS America 30030050

BUSHING

$62.99

$

Usually ships in 5-8 days

0

3

BCS America 311.12082

SCREW M6 X 12

$0.99

$

Usually ships in 5-8 days

0

4

BCS America 311.12153

SCREW M8 X 35

$1.49

$

In Stock, Qty 5

0

5

BCS America 311.13097

SCREW

$1.99

$

In Stock, only 3 left!

0

6

BCS America 31211100

NUT M10

$1.49

$

In Stock, only 2 left!

0

7

BCS America 312.41105

SELF LOCKING NUT

$1.99

$

Usually ships in 5-8 days

0

8

BCS America 312.41125

NUT

$

$

Currently unavailable

9

BCS America 313.12099

STUD

$2.49

$

Usually ships in 5-8 days

0

10

BCS America 313.12118

STUD M12 X 50 X 30 X 15 8G

$8.49

$

Usually ships in 5-8 days

0

11

BCS America 314.21064

SUPER WASHER 6 DIN 6796

$1.49

$

Usually ships in 5-8 days

0

12

BCS America 314.21083

SUPER WASHER 8 DIN 6796

$1.49

$

In Stock, Qty 6

0

13

BCS America 314.21101

SUPER WASHER 10 DIN 6796

$1.99

$

In Stock, Qty 5

0

14

BCS America 314.21253

SUPER WASHER 18 DIN 6796

$9.49

$

Usually ships in 5-8 days

0

15

BCS America 35121020

CIRCLIP EXTERN. D 20

$1.49

$

In Stock, Qty 8

0

16

BCS America 37111200

BEARING 20 X 42 X 12 6004

$16.99

$

In Stock, only 1 left!

0

17

BCS America 371.11255

BEARING 25 X 52 X 16 6205

$15.99

$

In Stock, only 1 left!

0

18

BCS America 371.11251

BEARING 25 X 62 X 17 6305

$

$

Currently unavailable

19

BCS America 382.12003

SEAL, OIL 20 X 42 X 7 STANDARD

$7.49

$

In Stock, only 1 left!

0

20

BCS America 382.15501

OIL SEAL

$22.99

$

Usually ships in 5-8 days

0

21

BCS America 513.4665

BLADE CONTROL BOX

$

$

Currently unavailable

22

BCS America 513.46651

BAR CONTROL SUPPORT

$

$

Currently unavailable

23

BCS America 513.46652

BAR CONTROL BUSH

$

$

Not available

24

BCS America 513.46653

CONTROL CRANK

$

$

Currently unavailable

25

BCS America 521.46665

STEEL BLADE COUPLING

$

$

Currently unavailable

26

BCS America 52448920

BLADE CONTROL PIN

$44.99

$

In Stock, only 1 left!

0

27

BCS America 561.46656

LOWER COVER

$17.99

$

Usually ships in 5-8 days

0

28

BCS America 563.46657

SPECIAL NUT

$15.99

$

Usually ships in 5-8 days

0

29

BCS America 564.46655

CRANK CAM

$307.99

$

Usually ships in 5-8 days

0

30

BCS America 572.46654

BARREL

$

$

Currently unavailable

31

BCS America 580.46661

BOX GASKET

$2.99

$

Usually ships in 5-8 days

0

32

BCS America 580.46662

GASKET

$1.99

$

Usually ships in 5-8 days

0

33

BCS America 580.46666

BLADE COUPLING SCREW

$32.99

$

Usually ships in 5-8 days

0

34

BCS America 590.46658

CONNECTING ROD

$520.99

$

Usually ships in 5-8 days

0

35

BCS America 590.51045

BREATHER CAP 1/4 GAS

$18.99

$

Usually ships in 5-8 days

0
