Cutter Bar - BCS America Sickle Bar Mower Attachment (1995 - 2012) Combo Bar w/ New Version 1 Style Blade Coupler Parts Diagram

3-Dog PTO Cutter Bar Attachment

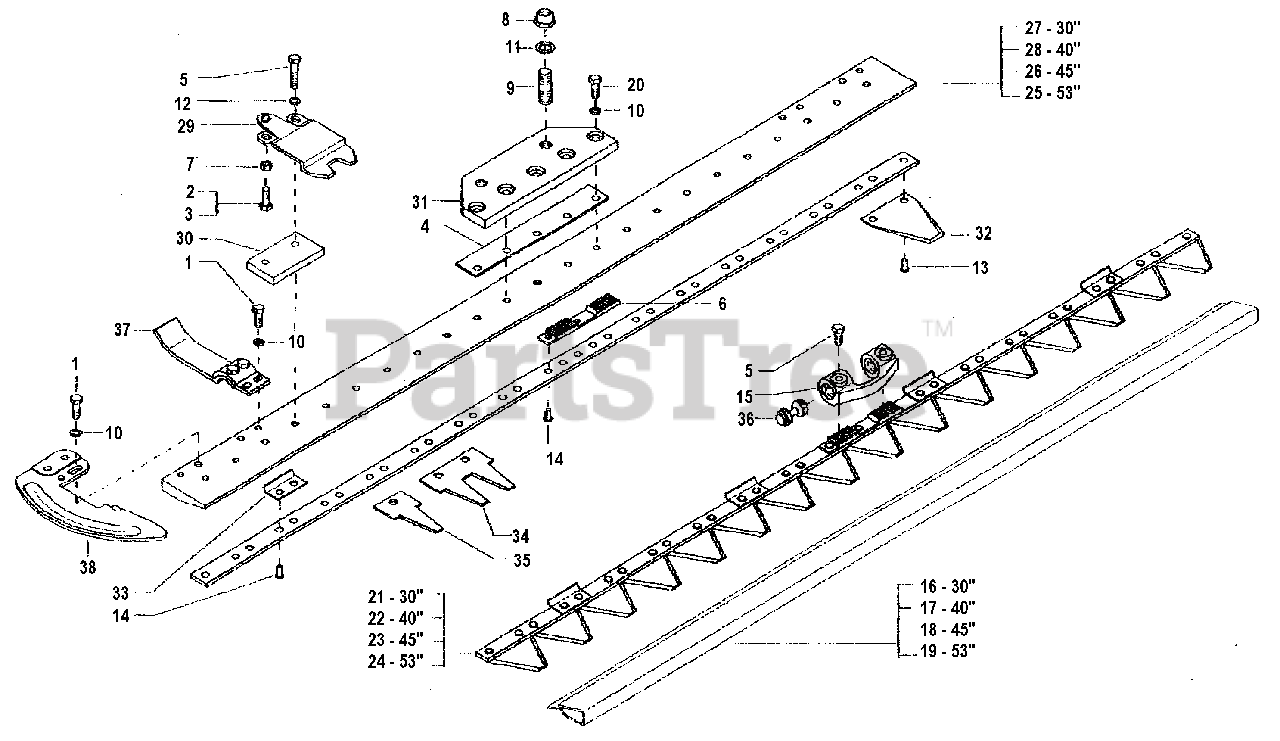

Combo Bar w/ New Version 1 Style Blade Coupler Parts Diagram

  • Title

1

BCS America 311.11151

SCREW, M8X16

$1.99

$

In Stock, only 4 left!

0

2

BCS America 311.12150

SCREW, M8X20

$1.49

$

In Stock, only 2 left!

0

3

BCS America 311.12151

SCREW, M8X25

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 561.58982

SPACER PLATE

$15.99

$

Usually ships in 5-8 days

0

5

BCS America 311.12153

SCREW, M8X35

$1.49

$

In Stock, Qty 5

0

6

BCS America 561.48904

MOUNTING PLATE

$

$

Currently unavailable

7

BCS America 312.11080

NUT, M8

$0.99

$

In Stock, Qty 8

0

8

BCS America 312.21151

SPECIAL NUT, M14

$1.99

$

In Stock, only 1 left!

0

9

BCS America 313.12139

STUD, M14X1.5X44

$16.99

$

In Stock, only 1 left!

0

10

BCS America 314.21083

SUPER WASHER, M8

$1.49

$

In Stock, Qty 6

0

11

BCS America 314.21251

SUPER WASHER, M14

$3.99

$

Usually ships in 5-8 days

0

12

BCS America 314.21083

WASHER, LOCK, M8

$1.49

$

In Stock, Qty 6

0

13

BCS America 331.12608

RIVET M6.5X13

$

$

Not available

14

BCS America 331.12609

RIVET M6.5X16

$

$

Not available

15

BCS America 521.46665

BLADE COUPLER

$

$

Currently unavailable

16

BCS America 552.59131

BLADE GUARD 30"

$55.99

$

Usually ships in 5-8 days

0

17

BCS America 552.59132

BLADE GUARD 40"

$32.99

$

Usually ships in 5-8 days

0

18

BCS America 552.59133

BLADE GUARD 45"

$85.99

$

Usually ships in 5-8 days

0

19

BCS America 552.59134

BLADE GUARD 53"

$67.99

$

Usually ships in 5-8 days

0

20

BCS America 311.14830

BOLT

$1.99

$

Usually ships in 5-8 days

0

21

BCS America 590.48928

BLADE ASSEMBLY, SERAT

$

$

Currently unavailable

22

BCS America 590.48926

BLADE ASSEMBLY, SERAT

$

$

Currently unavailable

23

BCS America 590.48909

BLADE ASSEMBLY, SERAT

$

$

Currently unavailable

24

BCS America 590.48906

BLADE ASSEMBLY, SERAT

$

$

Currently unavailable

25

BCS America 563.48914

SLIDE FOR CUTTER BAR

$461.99

$

Usually ships in 5-8 days

0

26

BCS America 563.48915

SLIDE FOR CUTTER BAR

$415.99

$

Usually ships in 5-8 days

0

27

BCS America 563.48929

SLIDE FOR CUTTER BAR

$257.99

$

Usually ships in 5-8 days

0

28

BCS America 563.48930

SLIDE FOR CUTTER BAR

$366.99

$

Usually ships in 5-8 days

0

29

BCS America 563.59003

BLADE HOLDER

$32.99

$

In Stock, only 1 left!

0

30

BCS America 563.51402

BLADE GUIDE BLOCK

$

$

Currently unavailable

31

BCS America 563.58981

BAR COUPLING

$

$

Currently unavailable

32

BCS America 563.50696

INDIVIDUAL BLADE, SERATED

$4.99

$

Usually ships in 5-8 days

0

33

BCS America 563.59061

CLEANER

$3.99

$

In Stock, only 4 left!

0

34

BCS America 565.50648

DOUBLE FINGER

$58.99

$

Usually ships in 5-8 days

0

35

BCS America 565.50649

SINGLE FINGER

$34.99

$

Usually ships in 5-8 days

0

36

BCS America 580.46666

SCREW, BLADE COUPLING

$32.99

$

Usually ships in 5-8 days

0

37

BCS America 580.46677

SKID WITH SCREW

$39.99

$

In Stock, only 2 left!

0

38

BCS America 922.48918

END GUARD, PAIR

$37.99

$

In Stock, only 2 left!

0
