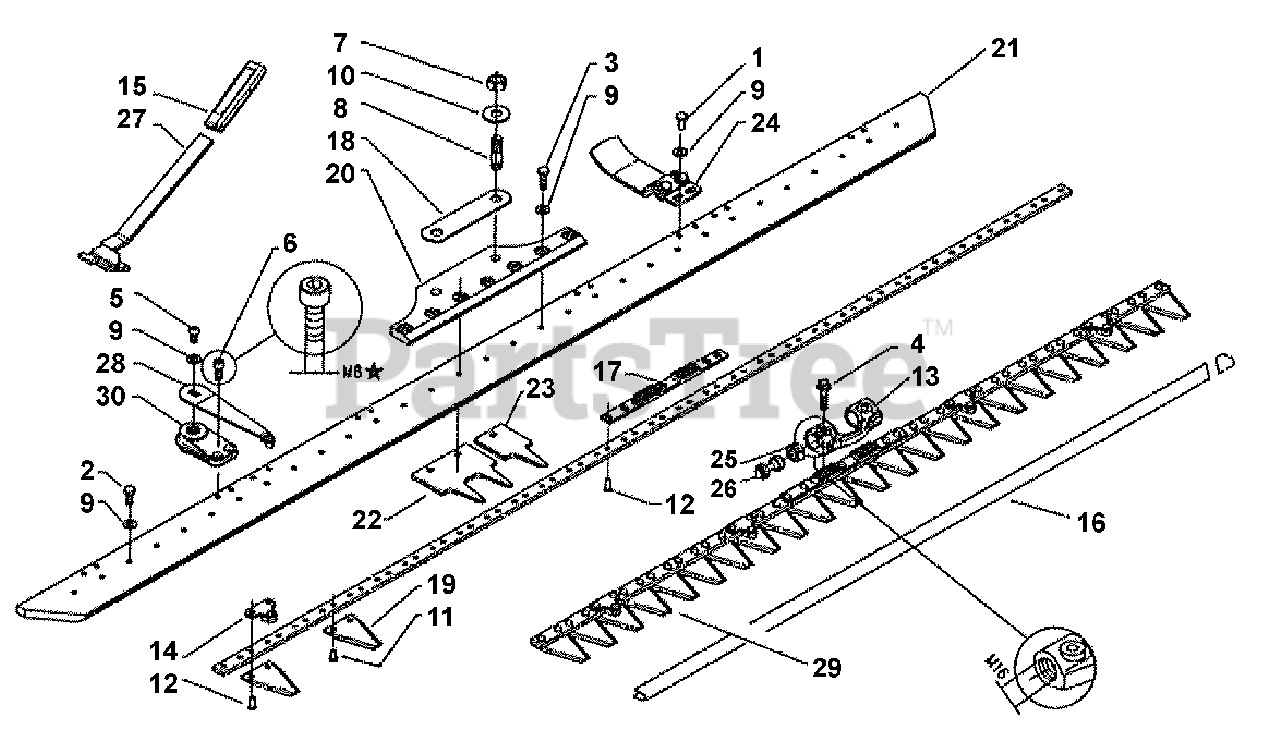

Cutter Bar - BCS America Sickle Bar Mower Attachment (1995 - 2012) Combo Bar w/ New Version 2 Style w/ Elastic Holddowns Parts Diagram

3-Dog PTO Cutter Bar Attachment

Combo Bar w/ New Version 2 Style w/ Elastic Holddowns Parts Diagram

  • Title

1

BCS America 311.11151

SCREW, M8X16

$1.99

$

In Stock, only 4 left!

0

2

BCS America 311.12150

SCREW, M8X20

$1.49

$

In Stock, only 2 left!

0

3

BCS America 311.12151

SCREW, M8X25

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 311.12165

SCREW

$1.99

$

In Stock, only 3 left!

0

5

BCS America 311.21013

SCREW, M8X16 7380-8G

$3.99

$

Usually ships in 5-8 days

0

6

BCS America 311.52077

SCREW

$1.49

$

Usually ships in 5-8 days

0

7

BCS America 312.21151

NUT, M14X1.5

$1.99

$

In Stock, only 1 left!

0

8

BCS America 313.12141

STUD, M14X1.5X48X12X20

$5.49

$

Usually ships in 5-8 days

0

9

BCS America 314.21083

WASHER, M8

$1.49

$

In Stock, Qty 6

0

10

BCS America 314.21251

WASHER, M14 SUPER

$3.99

$

Usually ships in 5-8 days

0

11

BCS America 331.12608

RIVET, M6.5X13

$

$

Not available

12

BCS America 331.12609

RIVET, M6.5X16

$

$

Not available

13

BCS America 521.58660

CONNECTION

$

$

Currently unavailable

14

BCS America 524.58678

CONNECTION

$45.99

$

Usually ships in 5-8 days

0

15

BCS America 551.02714

KNOB

$14.99

$

Usually ships in 5-8 days

0

16A

BCS America 552.59134

GUARD 45"

$67.99

$

Usually ships in 5-8 days

0

16B

BCS America 552.59135

GUARD 53"

$

$

Currently unavailable

17

BCS America 561.58677

SMALL PLATE

$84.99

$

Usually ships in 5-8 days

0

18

BCS America 561.59137

SHIM

$16.99

$

Usually ships in 5-8 days

0

19

BCS America 563.50696

BLADE SECTION

$4.99

$

Usually ships in 5-8 days

0

20

BCS America 563.58679

CONNECTION

$

$

Currently unavailable

21A

BCS America 563.58705

CONVEYING CHUTE 45"

$

$

Currently unavailable

21B

BCS America 563.58706

CONVEYING CHUTE 53"

$

$

Currently unavailable

22

BCS America 565.50648

DOUBLE TOOTH

$58.99

$

Usually ships in 5-8 days

0

23

BCS America 565.50649

SIMPLE TOOTH

$34.99

$

Usually ships in 5-8 days

0

24

BCS America 580.46677

SLIDE

$39.99

$

In Stock, only 2 left!

0

25

BCS America 580.58661

CONICAL NUT

$5.99

$

Usually ships in 5-8 days

0

26

BCS America 580.58662

SCREW FOR BLADE CONNECTION

$12.99

$

Usually ships in 5-8 days

0

27

BCS America 590.58593

SPRING LIFTER

$70.99

$

Usually ships in 5-8 days

0

28

BCS America 590.58601

SPRING

$

$

Not available

29A

BCS America 590.58684

BLADE 45"

$

$

Currently unavailable

29B

BCS America 590.58681

BLADE 53"

$

$

Not available

30

BCS America 592.58715

SUPPORT

$162.99

$

Usually ships in 5-8 days

0
