Cutter Bar - BCS America Sickle Bar Mower Attachment (1995 - 2012) Combo Bar w/ Old Style Blade Coupler (SN: 10000 & Above) Parts Diagram

3-Dog PTO Cutter Bar Attachment

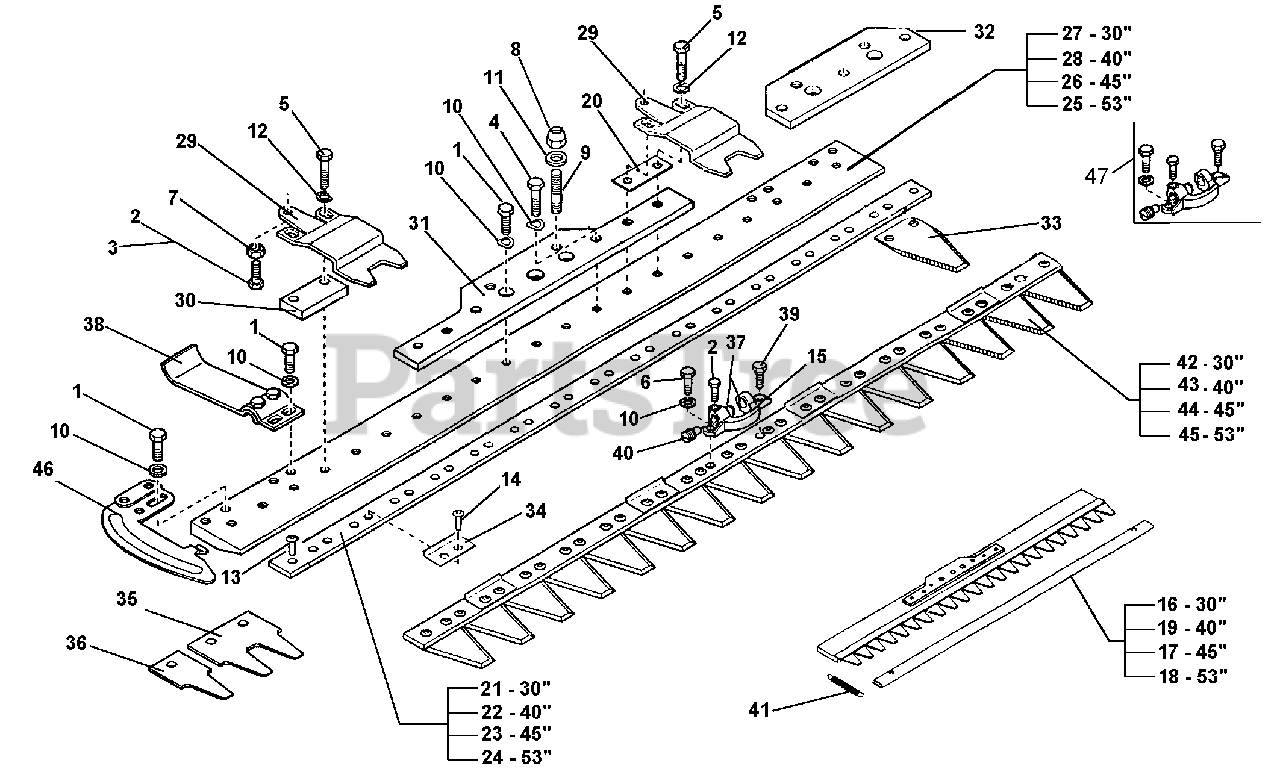

Combo Bar w/ Old Style Blade Coupler (SN: 10000 & Above) Parts Diagram

  • Title

1

BCS America 311.11151

SCREW, M8X16

$1.99

$

In Stock, only 4 left!

0

2

BCS America 31112150

SCREW, M8X20

$1.49

$

In Stock, only 2 left!

0

3

BCS America 311.12151

SCREW, M8X25

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 311.12152

SCREW, M8X30

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 311.12153

SCREW, M8X35

$1.49

$

In Stock, Qty 5

0

6

BCS America 311.13093

SCREW, M8X1X16

$1.49

$

In Stock, only 4 left!

0

7

BCS America 31211080

NUT, M8

$0.99

$

In Stock, Qty 8

0

8

BCS America 312.21151

SPECIAL NUT, M14

$1.99

$

In Stock, only 1 left!

0

9

BCS America 313.12139

STUD, M14X1.5X44

$16.99

$

In Stock, only 1 left!

0

10

BCS America 314.21083

SUPER WASHER, M8

$1.49

$

In Stock, Qty 6

0

11

BCS America 314.21251

SUPER WASHER, M14

$3.99

$

Usually ships in 5-8 days

0

12

BCS America 314.23084

WASHER, LOCK, M8.4

$0.99

$

In Stock, Qty 10

0

13

BCS America 33112530

RIVET 5.3X14

$

$

Not available

14

BCS America 331.12534

RIVET 5.3X16

$

$

Not available

15

BCS America 523.46697

BLADE COUPLER

$

$

Currently unavailable

16

BCS America 56149920

BLADE GUARD 30"

$

$

Not available

17

BCS America 561.49928

BLADE GUARD 45"

$

$

Currently unavailable

18

BCS America 56149940

BLADE GUARD 53"

$

$

Not available

19

BCS America 561.51015

BLADE GUARD 40"

$

$

Currently unavailable

20

BCS America 561.59011

SPACER, BLADE ADJUSTER

$3.49

$

Usually ships in 5-8 days

0

21

BCS America 561.5902

BLADE STRIP, 30"

$

$

Currently unavailable

22

BCS America 561.59021

BLADE STRIP, 40"

$

$

Currently unavailable

23

BCS America 561.59022

BLADE STRIP, 45"

$

$

Currently unavailable

24

BCS America 561.59023

BLADE STRIP, 53"

$

$

Currently unavailable

25

BCS America 563.48914

SLIDE FOR CUTTER BAR 53"

$461.99

$

Usually ships in 5-8 days

0

26

BCS America 563.48915

SLIDE FOR CUTTER BAR 45"

$415.99

$

Usually ships in 5-8 days

0

27

BCS America 563.48929

SLIDE FOR CUTTER BAR 30"

$257.99

$

Usually ships in 5-8 days

0

28

BCS America 56348930

SLIDE FOR CUTTER BAR 40"

$366.99

$

Usually ships in 5-8 days

0

29

BCS America 56351400

BLADE HOLDER

$34.99

$

In Stock, only 1 left!

0

30

BCS America 563.51402

BLADE GUIDE BLOCK

$

$

Currently unavailable

31

BCS America 563.59009

BAR COUPLING

$156.99

$

Usually ships in 5-8 days

0

32

BCS America 56359010

BAR COUPLING (EARLY STYLE)

$

$

Not available

33

BCS America 563.59015

INDIVIDUAL BLADE, SERRATED

$4.99

$

Usually ships in 5-8 days

0

34

BCS America 563.59061

CLEANER

$3.99

$

In Stock, only 4 left!

0

35

BCS America 565.50648

DOUBLE FINGER

$58.99

$

Usually ships in 5-8 days

0

36

BCS America 565.50649

SINGLE FINGER

$34.99

$

Usually ships in 5-8 days

0

37

BCS America 580.02976

BLADE PIN HOLDER

$5.49

$

In Stock, only 3 left!

0

38

BCS America 580.46677

SKID

$39.99

$

In Stock, only 2 left!

0

39

BCS America 580.46698

BOLT

$6.99

$

Usually ships in 5-8 days

0

40

BCS America 580.46699

ADJUSTING SCREW

$33.99

$

Usually ships in 5-8 days

0

41

BCS America 580.49942

SPRING, BLADE GUARD

$20.99

$

Usually ships in 5-8 days

0

42

BCS America 59059030

BLADE ASSEMBLY, SERATED, 30"

$119.99

$

Usually ships in 5-8 days

0

43

BCS America 590.59031

BLADE ASSEMBLY, SERATED, 40"

$156.99

$

Usually ships in 5-8 days

0

44

BCS America 590.59032

BLADE ASSEMBLY, SERATED, 45"

$156.99

$

Usually ships in 5-8 days

0

45

BCS America 590.59033

BLADE ASSEMBLY, SERATED, 53"

$156.99

$

In Stock, only 1 left!

0

46

BCS America 922.48918

END GUARD, PAIR

$37.99

$

In Stock, only 2 left!

0

47

BCS America 592.46663

BLADE COUPLER, COMPLETE

$186.99

$

Usually ships in 5-8 days

0
