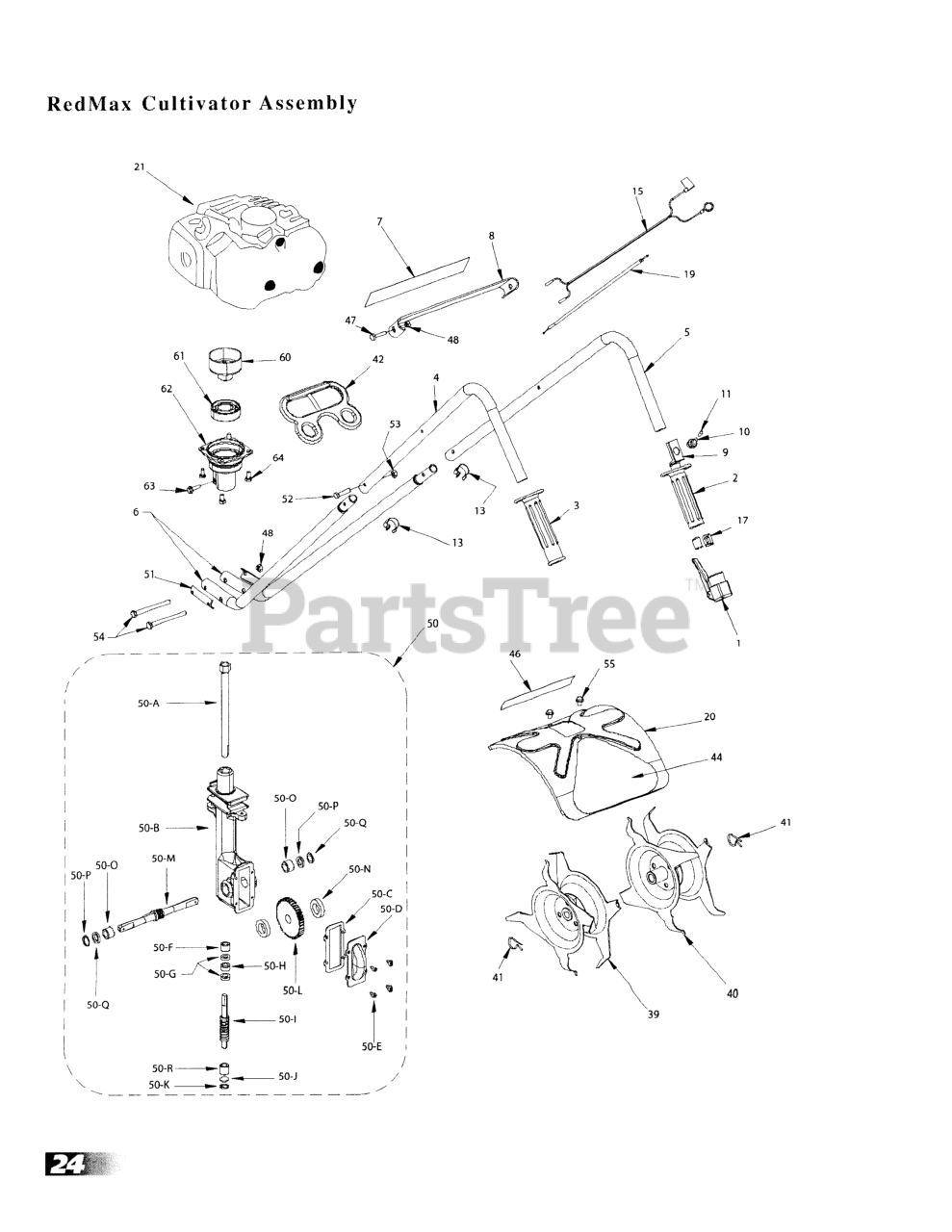

CV 225 - RedMax Cultivator (SN: 108000 & Above) (2002-10) > Parts Diagrams (2) > 024 - CULTIVATOR ASSEMBLY

  • Title
400215

1

THROTTLE LEVER

Part# 400215

OEM Warranty Repair Part for RedMax

Not available

400220

2

GRIP-THRU

Part# 400220

OEM Warranty Repair Part for RedMax

Not available

400218

3

CARRYING HANDLE

Part# 400218

OEM Warranty Repair Part for RedMax

Not available

400243

4

UPPER HANDLE

Part# 400243

OEM Warranty Repair Part for RedMax

Not available

400242

5

UPPER HANDLE THROTTLE SIDE

Part# 400242

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $34.67

400244

6

LOWER HANDLE

Part# 400244

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $27.16

400613

7

LABEL

Part# 400613

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.27

400113

8

420113

Part# 400113

OEM Warranty Repair Part for RedMax

Not available

464

9

SWITCH BRACKET

Part# 464

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.31

479

10

SWITCH

Part# 479

OEM Warranty Repair Part for RedMax

Not available

161270A

11

SWITCH COVER

Part# 161270A

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.45

478

13

THROTTLE CLIP

Part# 478

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.65

400239

15

CONNECTOR WIRE

Part# 400239

OEM Warranty Repair Part for RedMax

Not available

379

17

CABLE RETAINER

Part# 379

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.26

T172383100

19

THROTTLE CABLE ASSY.

Part# T172383100

OEM Warranty Repair Part for RedMax

Not available

465

20

FENDER GUARD

Part# 465

OEM Warranty Repair Part for RedMax

Not available

21

ENGINE (1.08HP, MODEL ZENOAH)

Part#

Not available

400210

39

TINE ASSEMBLY - LT

Part# 400210

OEM Warranty Repair Part for RedMax

Not available

400211

40

TINE ASSEMBLY - RT

Part# 400211

OEM Warranty Repair Part for RedMax

Not available

4181

41

TINE RETAINING HAIR PIN

Part# 4181

OEM Warranty Repair Part for RedMax

Not available

400218

42

CARRYING HANDLE

Part# 400218

OEM Warranty Repair Part for RedMax

Not available

4043

44

TINE LABEL

Part# 4043

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.83

400615

46

KOMATSU / REDMAX LABEL

Part# 400615

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.33

400010

50

TRANSMISSION ASSY. W/ DRV.SHFT

Part# 400010

OEM Warranty Repair Part for RedMax

Not available

468

50-A

DRIVE SHAFT

Part# 468

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $37.32

466

50-B

WORM GEAR HOUSING

Part# 466

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $104.94

436

50-C

GASKET

Part# 436

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.40

437A

50-D

HOUSING COVER

Part# 437A

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.80

651

50-E

RD. HD. SELF TAPPING SCREW

Part# 651

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.49

423

50-F

ROLLER BEARING

Part# 423

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $8.89

425

50-G

WORM BEARING RACE

Part# 425

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.54

424

50-H

WORM THRUST BEARING

Part# 424

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.58

422

50-I

WORM SHAFT

Part# 422

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $98.46

426

50-J

WORM DISK

Part# 426

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.02

428

50-K

RETAINING RING

Part# 428

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.76

429

50-L

WORM GEAR

Part# 429

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $118.93

431

50-M

TINE SHAFT

Part# 431

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $60.20

430

50-N

WORM GEAR THRUST WASHER

Part# 430

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.78

432

50-O

WORM GEAR BEARING

Part# 432

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $9.66

434

50-P

BEARING SEAL

Part# 434

OEM Warranty Repair Part for RedMax

Not available

435

50-Q

BEARING SEAL RETAINER

Part# 435

OEM Warranty Repair Part for RedMax

Not available

458

50-R

ROLLER BEARING

Part# 458

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $10.67

410

52

CAPSCREW 1/4-20 X 1

Part# 410

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.85

972

53

LOCK NUT 1/4-20

Part# 972

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.85

4049

54

BOLT 1/4-20 X 3 1/4

Part# 4049

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.72

140

55

BOLT 1/4-20 X 3/8

Part# 140

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.76

400131

60

CLUTCH DRUM

Part# 400131

OEM Warranty Repair Part for RedMax

Not available

400132

61

BEARING 25MM

Part# 400132

OEM Warranty Repair Part for RedMax

Not available

400130

62

TRANSMISSION ADAPTER

Part# 400130

OEM Warranty Repair Part for RedMax

Not available

910502

63

FLANGE BOLT 10-32 X 3/4

Part# 910502

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.88

400511

64

FLANGE BOLT M6 X 12

Part# 400511

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $11.14
