CV 225 - RedMax Cultivator (SN: 108000 & Above) (2002-10)

Cultivator

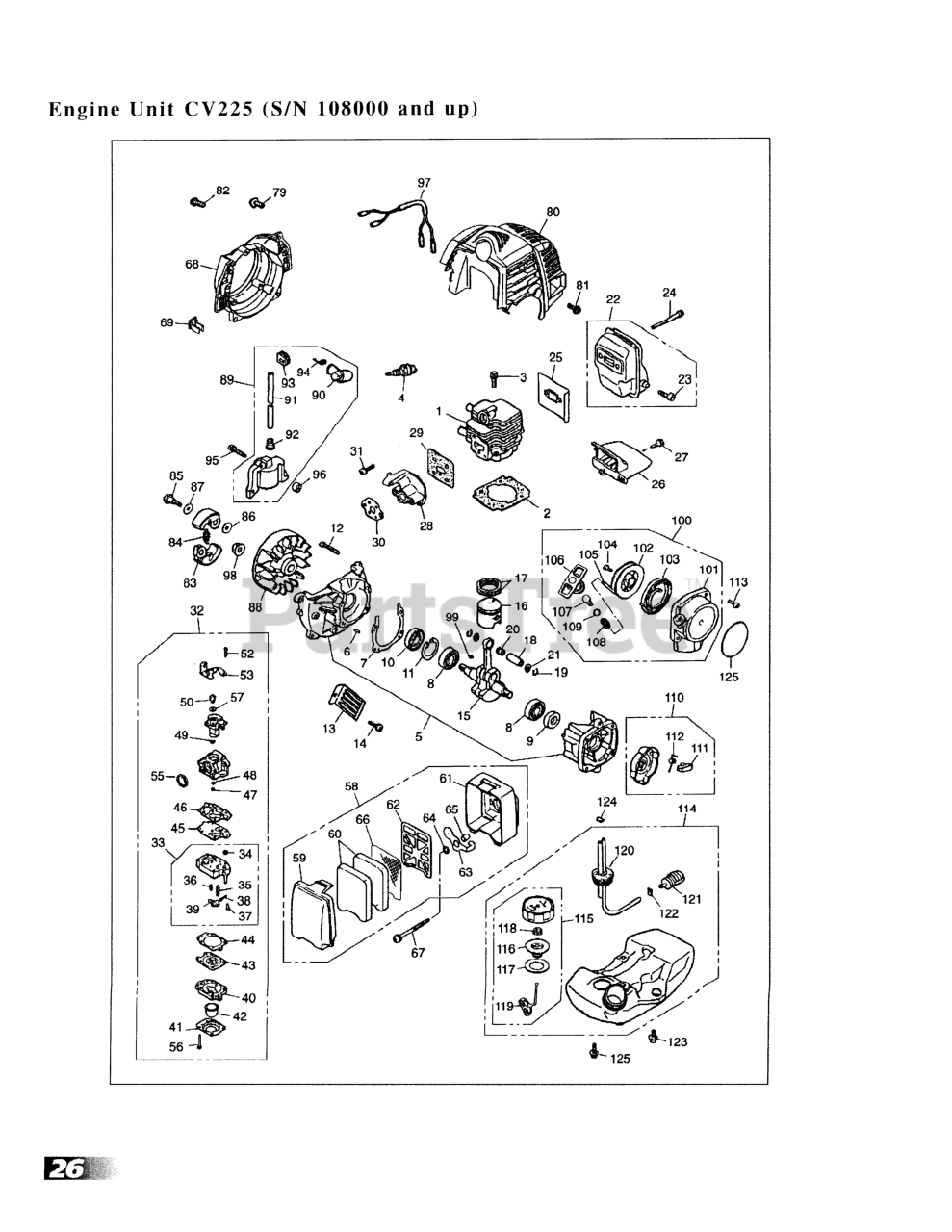

CV 225 - RedMax Cultivator (SN: 108000 & Above) (2002-10) > Parts Diagrams (2) > 026 - ENGINE UNIT

  • Title
558012110

1

CYLINDER

Part# 558012110

OEM Warranty Repair Part for RedMax

Not available

550012213

2

GASKET, BASE (RPLS -12212)

Part# 550012213

OEM Warranty Repair Part for RedMax

Not available

185012130

3

BOLT, M5 X 22

Part# 185012130

OEM Warranty Repair Part for RedMax

Not available

560273110

4

3699-90419-10

Part# 560273110

OEM Warranty Repair Part for RedMax

Not available

550021100

5

CRANKCASE

Part# 550021100

OEM Warranty Repair Part for RedMax

Not available

262921130

6

PIN

Part# 262921130 (Superseded to 516762801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

550021141

7

GASKET (RPLS -21140)

Part# 550021141

OEM Warranty Repair Part for RedMax

Not available

0603006001

8

BEARING

Part# 0603006001

OEM Warranty Repair Part for RedMax

Not available

216921210

9

SEAL, OIL (RPLS 1100-21210)

Part# 216921210

OEM Warranty Repair Part for RedMax

Not available

185021220

10

SEAL, OIL (RPLS 1140-21220)

Part# 185021220

OEM Warranty Repair Part for RedMax

Not available

0406502812

11

RING, SNAP, M28 x 1.2

Part# 0406502812

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.67

0125230530

12

BOLT, M5 X 30

Part# 0125230530

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.47

550022110

13

GUARD

Part# 550022110

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.28

026390514

14

SCREW,M5 X 14 (RPLS 1400-15510

Part# 026390514

OEM Warranty Repair Part for RedMax

Not available

550042001

15

CRANKSHAFT (RPLS 1850-42000)

Part# 550042001 (Superseded to 521358201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $72.66

560041111

16

PISTON (REPLACES 1140-41110)

Part# 560041111

OEM Warranty Repair Part for RedMax

Not available

110041210

17

RING, PISTON (RPLS 1850-41210)

Part# 110041210

OEM Warranty Repair Part for RedMax

Not available

110141310

18

PIN, PISTON 5x8x26

Part# 110141310

OEM Warranty Repair Part for RedMax

Not available

126041320

19

RING, SNAP (RPLS 1101-41320)

Part# 126041320

OEM Warranty Repair Part for RedMax

Not available

550041410

20

BEARING (RPLS 1140-41330)

Part# 550041410

OEM Warranty Repair Part for RedMax

Not available

110141340

21

WASHER

Part# 110141340 (Superseded to 516181201)

OEM Warranty Repair Part for RedMax

Not available

T170215100

22

MUFFER ASSEMBLY

Part# T170215100

OEM Warranty Repair Part for RedMax

Not available

160115120

23

ARRESTER (RPLS 5850-15140)

Part# 160115120

OEM Warranty Repair Part for RedMax

Not available

0125230550

24

BOLT, M5 x 50

Part# 0125230550

OEM Warranty Repair Part for RedMax

Not available

T160015210

25

GASKET

Part# T160015210

OEM Warranty Repair Part for RedMax

Not available

550015221

26

PLATE, MUFFLER (RPLS -15220)

Part# 550015221

OEM Warranty Repair Part for RedMax

Not available

026390416

27

SCREW, M4 X 16

Part# 026390416

OEM Warranty Repair Part for RedMax

Not available

T170013160

28

INSULATOR

Part# T170013160

OEM Warranty Repair Part for RedMax

Not available

550013121

29

GASKET (RPLS -13120)

Part# 550013121

OEM Warranty Repair Part for RedMax

Not available

550013131

30

GASKET (REPLACES -13130)

Part# 550013131

OEM Warranty Repair Part for RedMax

Not available

026390520

31

SCREW, M5X20 (RPLS.1400-75510)

Part# 026390520

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.25

T172381000

32

CARBURETOR ASSY.

Part# T172381000 (Superseded to 512370001)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $100.72

185081450

33

BODY, PUMP

Part# 185081450

OEM Warranty Repair Part for RedMax

Not available

330681380

34

SCREEN

Part# 330681380

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.22

335681310

35

VALVE, INLET

Part# 335681310

OEM Warranty Repair Part for RedMax

Not available

185081270

36

SPRING, METERING LEVER

Part# 185081270

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.54

185081220

37

SCREW, METERING LEVER PIN

Part# 185081220

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.54

331081250

38

PIN, METERING LEVER

Part# 331081250

OEM Warranty Repair Part for RedMax

Not available

331081230

39

LEVER

Part# 331081230

OEM Warranty Repair Part for RedMax

Not available

185081490

40

BODY, PURGE

Part# 185081490

OEM Warranty Repair Part for RedMax

Not available

185081520

41

COVER, PUMP

Part# 185081520 (Superseded to 516543901)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $4.46

175181510

42

PUMP, PRIMING

Part# 175181510

OEM Warranty Repair Part for RedMax

Not available

331081260

43

DIAPHRAGM (USE 4810-81260)

Part# 331081260

OEM Warranty Repair Part for RedMax

Not available

185081470

44

GASKET, DIAPHRAGM

Part# 185081470

OEM Warranty Repair Part for RedMax

Not available

106581420

45

DIAPHRAGM

Part# 106581420

OEM Warranty Repair Part for RedMax

Not available

106581410

46

GASKET, PUMP

Part# 106581410

OEM Warranty Repair Part for RedMax

Not available

550081251

47

JET

Part# 550081251

OEM Warranty Repair Part for RedMax

Not available

175181240

48

RING, O

Part# 175181240

OEM Warranty Repair Part for RedMax

Not available

175181130

49

RING

Part# 175181130 (Superseded to 516523601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

188181140

50

SWIVEL

Part# 188181140 (Superseded to 516597701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.82

175281110

52

SCREW

Part# 175281110 (Superseded to 516528701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

550081120

53

BRACKET

Part# 550081120

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.42

188181130

55

RING, PACKING

Part# 188181130

OEM Warranty Repair Part for RedMax

Not available

185081530

56

SCREW

Part# 185081530

OEM Warranty Repair Part for RedMax

Not available

550081160

57

WASHER

Part# 550081160

OEM Warranty Repair Part for RedMax

Not available

191882001

58

CLEANER ASSY (RPLS -82000)

Part# 191882001

OEM Warranty Repair Part for RedMax

Not available

191882110

59

COVER

Part# 191882110

OEM Warranty Repair Part for RedMax

Not available

191882120

60

FILTER

Part# 191882120

OEM Warranty Repair Part for RedMax

Not available

191882130

61

HOUSING

Part# 191882130

OEM Warranty Repair Part for RedMax

Not available

191882140

62

PLATE

Part# 191882140

OEM Warranty Repair Part for RedMax

Not available

191882150

63

VALVE

Part# 191882150

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.32

191882160

64

WASHER

Part# 191882160

OEM Warranty Repair Part for RedMax

Not available

191882170

65

SLEEVE (REPLACES 1750-82060)

Part# 191882170

OEM Warranty Repair Part for RedMax

Not available

191882180

66

SCREEN

Part# 191882180

OEM Warranty Repair Part for RedMax

Not available

026390560

67

SCREW, M5 x 60

Part# 026390560

OEM Warranty Repair Part for RedMax

Not available

T181531110

68

COVER, FAN

Part# T181531110

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $22.04

T160072210

69

CLAMP

Part# T160072210 (Superseded to 521758801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

026390520

79

SCREW, M5X20 (RPLS.1400-75510)

Part# 026390520

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.25

T181532110

80

COVER, ENGINE (USE -32111)

Part# T181532110

OEM Warranty Repair Part for RedMax

Not available

T170032162

81

SCREW (RPLS-32161)

Part# T170032162

OEM Warranty Repair Part for RedMax

Not available

026390510

82

SCREW, M5 X 10

Part# 026390510

OEM Warranty Repair Part for RedMax

Not available

T170051110

83

SHOE

Part# T170051110

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $10.13

T170051220

84

SPRING

Part# T170051220

OEM Warranty Repair Part for RedMax

Not available

114051250

85

BOLT

Part# 114051250

OEM Warranty Repair Part for RedMax

Not available

114051230

86

WASHER, FLAT (USE 182303)

Part# 114051230

OEM Warranty Repair Part for RedMax

Not available

197051241

87

182304

Part# 197051241 (Superseded to 516626501)

OEM Warranty Repair Part for RedMax

Not available

T170071110

88

ROTOR

Part# T170071110 (Superseded to 521769301)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $33.53

T170071201

89

COIL-A (REPLACES -71200)

Part# T170071201

OEM Warranty Repair Part for RedMax

Not available

550072110

90

CAP

Part# 550072110

OEM Warranty Repair Part for RedMax

Not available

T170071220

91

CORD

Part# T170071220

OEM Warranty Repair Part for RedMax

Not available

261671320

92

CAP

Part# 261671320 (Superseded to 516744001)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

550072130

93

GROMMET

Part# 550072130

OEM Warranty Repair Part for RedMax

Not available

550072120

94

SPRING

Part# 550072120

OEM Warranty Repair Part for RedMax

Not available

331072150

95

BOLT

Part# 331072150

OEM Warranty Repair Part for RedMax

Not available

T170071260

96

SPACER

Part# T170071260 (Superseded to 521769701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

T170073200

97

CORD COMP

Part# T170073200

OEM Warranty Repair Part for RedMax

Not available

165043230

98

182301

Part# 165043230 (Superseded to 516437401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

100043240

99

KEY

Part# 100043240 (Superseded to 516147801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

T170075100

100

RECOIL ASSEMBLY

Part# T170075100

OEM Warranty Repair Part for RedMax

Not available

550075110

101

CASE

Part# 550075110

OEM Warranty Repair Part for RedMax

Not available

185075120

102

REEL

Part# 185075120

OEM Warranty Repair Part for RedMax

Not available

185075130

103

SPRING, SPIRAL

Part# 185075130

OEM Warranty Repair Part for RedMax

Not available

185075151

104

SCREW (RPLS -75150)

Part# 185075151

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

T160075160

105

ROPE

Part# T160075160 (Superseded to 521759401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

T160075310

106

KNOB

Part# T160075310 (Superseded to 521759701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

T160075321

107

COLLAR

Part# T160075321 (Superseded to 521759801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.11

T160075330

108

SPRING

Part# T160075330 (Superseded to 521759901)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

T160075210

109

WASHER

Part# T160075210 (Superseded to 521759601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

185075201

110

PULLEY ASSY (RPLS -75210)

Part# 185075201

OEM Warranty Repair Part for RedMax

Not available

185075221

111

RATCHET (RPLS 1850-75220)

Part# 185075221

OEM Warranty Repair Part for RedMax

Not available

185075230

112

SPRING, RETURN

Part# 185075230

OEM Warranty Repair Part for RedMax

Not available

T170032162

113

SCREW (RPLS-32161)

Part# T170032162

OEM Warranty Repair Part for RedMax

Not available

T170085001

114

TANK ASSY (RPLS -85000)

Part# T170085001 (Superseded to 521770601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $58.13

560785201

115

CAP ASSY (RPLS. 5601-85201)

Part# 560785201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $13.41

560185300

116

HOLDER - A (RPLS 5601-85230)

Part# 560185300

OEM Warranty Repair Part for RedMax

Not available

550085220

117

PACKING

Part# 550085220

OEM Warranty Repair Part for RedMax

Not available

560185260

118

FILTER

Part# 560185260

OEM Warranty Repair Part for RedMax

Not available

482085260

119

STOPPER

Part# 482085260

OEM Warranty Repair Part for RedMax

Not available

550085300

120

PIPE COMPLETE

Part# 550085300

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $22.35

550085400

121

FILTER (RPLS 1850-85300)

Part# 550085400

OEM Warranty Repair Part for RedMax

Not available

126085460

122

CLIP (REPLACES 2841-31280)

Part# 126085460

OEM Warranty Repair Part for RedMax

Not available

591085510

123

SCREW W/ WASHER

Part# 591085510

OEM Warranty Repair Part for RedMax

Not available

195086120

124

CLIP

Part# 195086120

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

550085510

125

SCREW

Part# 550085510

OEM Warranty Repair Part for RedMax

Not available

T171631120

126

LABEL

Part# T171631120 (Superseded to 521771601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23
