RedMax CV 54 (970465101) - RedMax 54" Stand-On Mower, Kawasaki FX (2020-02) ENGINE PLATE Parts Lookup with Diagrams

1

RedMax 589721601

MUFFLER.ASSY.STAND.ON.VERTICAL

Note: Muffler Assy.

$241.99

$

Usually ships in 3-10 days

2

RedMax 589721001

MUFFLER.LH.HEADER.751V

Note: Muffler Header LH

$27.99

$

Usually ships in 3-10 days

3

RedMax 589721101

MUFFLER.RH.HEADER.751V

Note: Muffler Header RH

$30.99

$

Usually ships in 3-10 days

4

RedMax 590003301

BOLT

Note: Bolt M8 x 1.25 x 16

$3.99

$

Usually ships in 3-10 days

5

RedMax 592858701

BOLT 5/16-18 X .75 HEX FLANGE

Note: Bolt5/16-18 x 3/4

$6.49

$

Usually ships in 3-10 days

6

RedMax 590907402

MUFFLER MOUNTING BRACKET

Note: Bracket

$14.99

$

Usually ships in 3-10 days

7

RedMax 596038101

CLAMP 33 MM EXHAUST TUBE

Note: Clamp

$13.99

$

In Stock, only 2 left!

8

RedMax 532184362

NUT.HEX.FLANGE.TOPLOCK

Note: Nut

$6.49

$

Usually ships in 3-10 days

9

RedMax 539102593

WASHER, 3/8 DISC SPRING SPEC

Note: Washer

$3.99

$

Usually ships in 3-10 days

11

RedMax 584825501

HOSE.ASSEMBLY.OIL.DRAIN

Note: Hose Assy. Oil Drain

$29.99

$

Usually ships in 3-10 days

12

RedMax 522599002

ADAPTER, OIL DRAIN

(Superseded to 522599003) 

Note: "Adapter, Oil Drain"

$10.99

$

Usually ships in 3-10 days

15

RedMax 590812902

PLATE

Note: "Plate, Engine Weldment"

$157.99

$

Usually ships in 3-10 days

16

RedMax 596564402

Bolts

Note: Bolt 3/8-16 UNC x 1-1/4

$2.49

$

Usually ships in 3-10 days

17

RedMax 596564403

Screws

Note: Bolt 3/8-16 UNC x 2

$2.49

$

Usually ships in 3-10 days

18

RedMax 539912063

CONE WASHER

Note: "Wash, Cone"

$4.99

$

Usually ships in 3-10 days

19

RedMax 817000616

SCREW 3/8-16X1

Note: Screw 3/8-16 x 1

$7.49

$

In Stock, Qty 7

20

RedMax 596584303

Screws

Note: Bolt 3/8

$2.49

$

Usually ships in 3-10 days

21

RedMax 596136201

Bolts

Note: Bolt 3/8-16 UNC x 1-3/4 Gr. 5

$3.99

$

In Stock, Qty 8

22

RedMax 521996502

GSPW Nuts

Note: Nut 3/8-16

$3.99

$

In Stock, Qty 20+

23

RedMax 590003301

BOLT

Note: Bolt M8 x 1.25 x 16

$3.99

$

Usually ships in 3-10 days

24

RedMax 590635601

BLOCK STANDON DECK DRIVE TENSI

Note: Drive Tensioner Block

$

Not available 

25

RedMax 589813601

SHAFT.TNSNR.DRIVE.DECK.STANDON

Note: Drive Tensioner Shaft

$22.99

$

Usually ships in 3-10 days

26

RedMax 589807302

BRACKET STANDON LH DRIVE TENSI

Note: Drive Tensioner Bracket LH

$14.99

$

Usually ships in 3-10 days

27

RedMax 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: Nut 5/16-18 Nyloc

$4.99

$

In Stock, Qty 20+

28

RedMax 589603801

PULLEY.5"X2.03".FLAT.IDLER

Note: "Pulley, Flat Idler 5/16-18"

$100.99

$

Usually ships in 3-10 days

29

RedMax 872140628

BOLT.RDHD SQNK 3/8-16 X 3-1/2

Note: "Screw 3/8-16 x 3.5"""

$4.99

$

Usually ships in 3-10 days

30

RedMax 521996502

GSPW Nuts

Note: Nut 3/8-16 Nyloc

$3.99

$

In Stock, Qty 20+

31

RedMax 589807501

SPRING STANDON DECK DRIVE EXTE

Note: "Spring, Extension"

$

Not available 

32

RedMax 589807402

BRACKET STANDON RH DRIVE TENSI

Note: Drive Tensioner Bracket

$37.99

$

Usually ships in 3-10 days

33

RedMax 539115574

EYE BOLT 5/16 X 3.50

(Superseded to 596240801) 

Note: "Eyebolt 5/16-18 x 3.5"""

$4.99

$

In Stock, Qty 11

34

RedMax 590646801

BUSHING SLEEVE; PLASTIC

Note: "Bushing, Sleeve"

$3.49

$

Usually ships in 3-10 days

35

RedMax 872140610

BOLT.3/8-14X1.25

(Superseded to 583611601) 

Note: "Shield, Dust"

$3.99

$

Usually ships in 3-10 days

36

RedMax 596039201

GSPW Hardware

Note: Nut 5/16-18 Lock

$3.99

$

In Stock, Qty 20+

37

RedMax 581332806

Bolts

Note: Bolt 7/16-20

$8.99

$

In Stock, Qty 5

38

RedMax 596238901

Washers

Note: Washer

$3.99

$

In Stock, Qty 20+

39

RedMax 525749901

KEY, 1/4 SQ X 3.5

Note: Key 1/4 x 3.5

$4.99

$

Usually ships in 3-10 days

40

RedMax 599224302

Brackets

Note: "Bracket, Clutch Stop"

$10.99

$

Usually ships in 3-10 days

41

RedMax 582478602

NUT FLG, NYLOCK, 1/4-20 GR G C

Note: Nut 1/4-20

$2.49

$

In Stock, Qty 6

42

RedMax 592807801

BOLT CUP HEAD SQUARE NECK 1/4-

Note: "Bolt 1/4-20 x 1"""

$4.99

$

Usually ships in 3-10 days

43

RedMax 510019801

PULLEY, ENGINE

Note: "Pulley, Engine"

$53.99

$

In Stock, only 1 left!

44

RedMax 590500901

Clutches

Note: Clutch

$605.99

$

Usually ships in 3-10 days

45

RedMax 596770301

Washers

Note: Washer

$4.99

$

In Stock, Qty 20+

46

RedMax 590680602

Spacers

Note: "Spacer, Engine Pulley"

$20.99

$

Usually ships in 3-10 days

47

RedMax 593009101

Pulleys

Note: Pulley

$24.99

$

Usually ships in 3-10 days

48

RedMax 599283801

Bolts

Note: Bolt M8 x 15

$3.99

$

Usually ships in 3-10 days

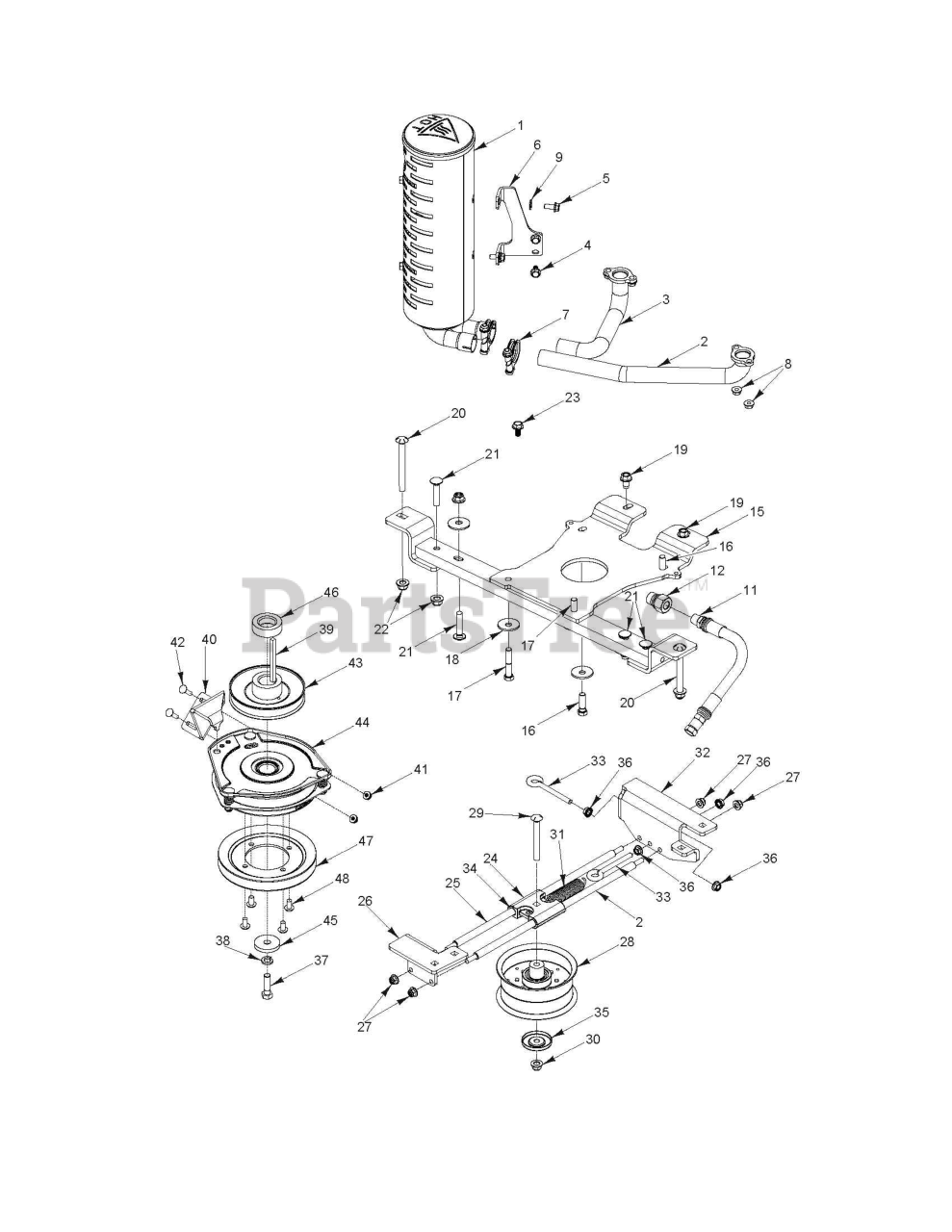

CV 54 (970465101) - RedMax 54" Stand-On Mower, Kawasaki FX (2020-02) ENGINE PLATE Parts Diagram
