CV 54 (970465101) - RedMax 54" Stand-On Mower, Kawasaki FX (2020-02) FRAME 2 Parts Diagram

54" Stand-On Mower, Kawasaki FX

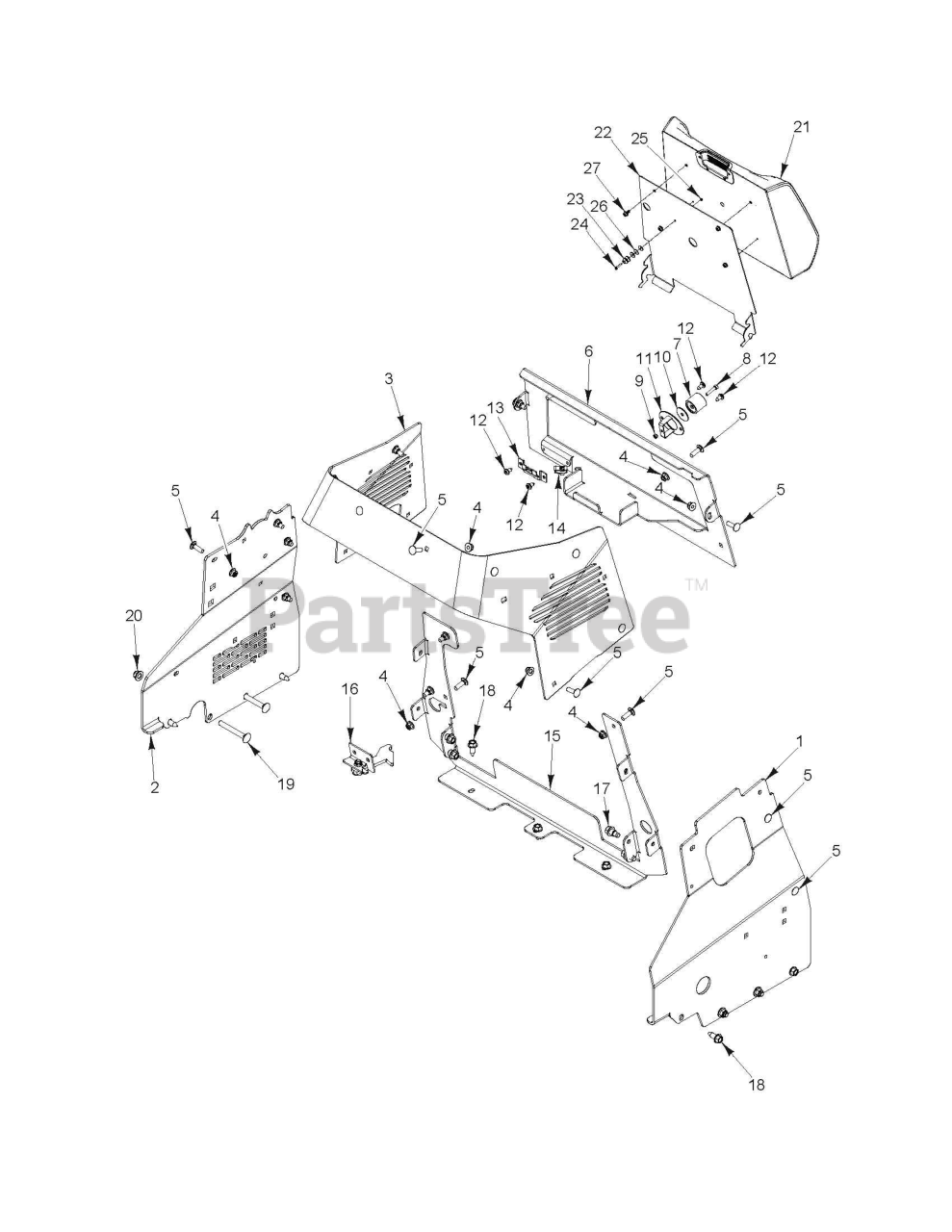

FRAME 2 Parts Diagram

  • Title

1

RedMax 501863303

Columns

Note: Column, Side Right

$203.99

$

Usually ships in 3-10 days

0

2

RedMax 501863403

Columns

Note: Column, Side Left

$203.99

$

Usually ships in 3-10 days

0

3

RedMax 599151202

Columns

Note: Column, Front Stand-On

$167.99

$

Usually ships in 3-10 days

0

4

RedMax 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: Nut, 5/16-18 Nyloc

$7.49

$

In Stock, Qty 20+

0

5

RedMax 596435701

Bolts

Note: Screw

$3.99

$

In Stock, Qty 20+

0

6

RedMax 590742507

Columns

Note: Column, Rear Top

$89.99

$

Usually ships in 3-10 days

0

7

RedMax 582461701

HOLDER.ASM.STEM.BASE.WASHER

Note: Holder Assembly

$27.99

$

In Stock, only 2 left!

0

8

RedMax 593167401

SCREW.HEXAGON.HD.M5X25.8.8.ZPB

Note: Screw

$3.99

$

In Stock, only 2 left!

0

9

RedMax 593167301

NUT.LOCK.M5.8.ZP-Y

Note: Nut, Lock

$3.99

$

In Stock, only 4 left!

0

10

RedMax 590686001

WASHER FENDER 1/4"X1.25"X0.08"

Note: "Washer, Fender"

$3.99

$

In Stock, only 4 left!

0

11

RedMax 592857801

HOLDER HOLDBACK CRADLE

Note: "Holder, Holdback, Cradle"

$45.99

$

In Stock, only 1 left!

0

12

RedMax 532199855

SCREW T-30 1/4-20 X
(Superseded to 583254901)

Note: "Screw 1/4-20 x 1/2"""

$3.49

$

Usually ships in 3-10 days

0

13

RedMax 589500702

BRACKET FUSE RELAY HOUSING ST

Note: "Bracket, Fuse, Relay, Housing"

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 539104763

U-CLIP 5/16-18 NUT RETAINER

Note: Clip

$4.99

$

In Stock, Qty 20+

0

15

RedMax 590742407

Columns

Note: "Column, Rear Lower"

$275.99

$

Usually ships in 3-10 days

0

16

RedMax 590783602

Latch

Note: Latch Assembly

$65.99

$

Usually ships in 3-10 days

0

17

RedMax 532196539

BOLT.SHOULDER

Note: Bolt 5/16 x 5/8 w/ Loctite

$1.49

$

In Stock, Qty 20+

0

18

RedMax 817000616

SCREW 3/8-16X1

Note: Screw

$7.49

$

In Stock, Qty 20+

0

19

RedMax 596917501

Bolts

Note: Bolt 3/8-16 x 3 Carriage

$3.99

$

Usually ships in 3-10 days

0

20

RedMax 521996502

GSPW Nuts

Note: "Nut 3/8-16 Hex, Flange, Nyloc"

$3.49

$

In Stock, Qty 11

0

21

RedMax 590783002

Pads

Note: "Pad, Operator Cushion"

$478.99

$

Usually ships in 3-10 days

0

22

RedMax 590742604

Doors

Note: Door

$263.99

$

Usually ships in 3-10 days

0

23

RedMax 582461702

Holders
(Superseded to 582461701)

Note: Holder Assy

$27.99

$

In Stock, only 2 left!

0

24

RedMax 593167401

SCREW.HEXAGON.HD.M5X25.8.8.ZPB

Note: Screw

$3.99

$

In Stock, only 2 left!

0

25

RedMax 593167301

NUT.LOCK.M5.8.ZP-Y

Note: Nut, Lock

$3.99

$

In Stock, only 4 left!

0

26

RedMax 593175101

WASHER.ROUND.5X20X1.5.ZPB

Note: Washer

$3.99

$

Usually ships in 3-10 days

0

27

RedMax 592858101

BOLT 5/16 - 18 X .625 HEX FL L
(Superseded to 596584601)

Note: Screw 5/16 x .625

$4.99

$

Usually ships in 3-10 days

0
