CV 54 (970465101) - RedMax 54" Stand-On Mower, Kawasaki FX (2020-02) FUEL SYSTEM Parts Diagram

54" Stand-On Mower, Kawasaki FX

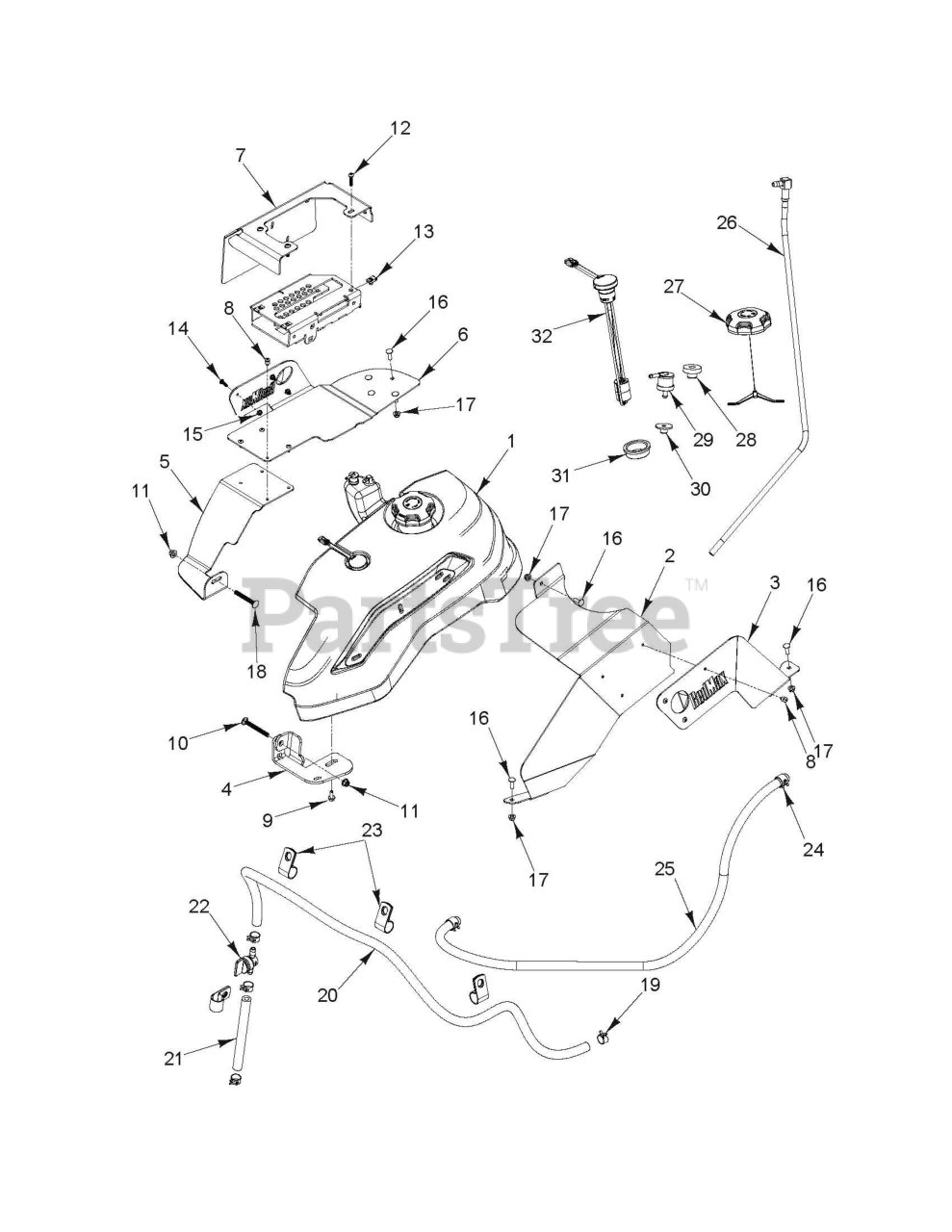

FUEL SYSTEM Parts Diagram

  • Title

1

RedMax 598936101

Tanks
(Superseded to 598936102)

Note: "Assembly, Fuel Tank Stand-On"

$

$

Not available

2

RedMax 599206502

Covers

Note: "Cover, Front Fuel Tank"

$101.99

$

Usually ships in 3-10 days

0

3

RedMax 599206602

Covers

Note: "Cover, Rear Fuel Tank"

$45.99

$

Usually ships in 3-10 days

0

4

RedMax 599299202

Brackets

Note: Bracket

$33.99

$

Usually ships in 3-10 days

0

5

RedMax 599206202

Fenders

Note: "Fender, RedMax, Front"

$41.99

$

Usually ships in 3-10 days

0

6

RedMax 599206302

Fenders

Note: "Fender, RedMax, Rear"

$71.99

$

Usually ships in 3-10 days

0

7

RedMax 599206402

Fenders

Note: "Fender, RedMax, Top"

$83.99

$

Usually ships in 3-10 days

0

8

RedMax 588119401

Rivets

Note: Rivet

$3.99

$

Usually ships in 3-10 days

0

9

RedMax 592858701

BOLT 5/16-18 X .75 HEX FLANGE

Note: "Bolt, 5/16-18 unc x .75 Gr. 8"

$5.99

$

In Stock, Qty 7

0

10

RedMax 596584302

Screws

Note: "Screw, 3/8-16 x 1"""

$3.99

$

Usually ships in 3-10 days

0

11

RedMax 521996502

GSPW Nuts

Note: "Nut, 3/8-16"

$3.49

$

In Stock, Qty 11

0

12

RedMax 578296403

SCREW.BUTTHEAD.5/16-18X1-1.25

Note: "Screw, 5/16-18 unc x 1.25"

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 539104763

U-CLIP 5/16-18 NUT RETAINER

Note: "U-Clip, 5/16-18 Nut Retainer"

$4.99

$

In Stock, Qty 20+

0

14

RedMax 599372301

Screws

Note: Screw, 1/4"-10 x .75

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 585691401

NUT.HEX.LRG.FLANGE.1/4-20.LOCK

Note: "Nut, Hex Flange"

$3.49

$

In Stock, only 2 left!

0

16

RedMax 596435701

Bolts

Note: "Bolt, 5/16-18 x 1.02"""

$3.99

$

In Stock, Qty 20+

0

17

RedMax 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: "Nut, 5/16-18 Hex Flange"

$7.49

$

In Stock, Qty 20+

0

18

RedMax 596917501

Bolts

Note: "Bolt, 3/8-16 x 3"" Cup Head Square Neck"

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 532123487

HOSE CLAMP

Note: "Clamp, Hose"

$3.99

$

In Stock, Qty 8

0

20

RedMax 587044837

HOSE.1/4".LOW.PERM.FUEL.LN.37"

Note: "Hose, Fuel 1/4"" x 37"""

$17.99

$

Usually ships in 3-10 days

0

21

RedMax 587044805

HOSE.1/4".LOW.PERM.FUEL.LN.5"

Note: "Hose, Fuel 1/4"" x 5"""

$3.99

$

In Stock, only 4 left!

0

22

RedMax 539916325

FUEL VALVE

Note: "Valve, Fuel"

$13.99

$

In Stock, only 1 left!

0

23

RedMax 592724301

CLAMP

Note: Clamp

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 575436501

CLAMP, HOSE

Note: "Clamp, Hose"

$3.99

$

In Stock, only 3 left!

0

25

RedMax 587044522

Hoses

Note: Hose 3/16 X 22"

$4.99

$

Usually ships in 3-10 days

0

26

RedMax 582688101

VALVE.ASM.P-UP.W/SHUTOFF.STNDN

Note: Fuel Pickup Tube Assembly

$14.99

$

Usually ships in 3-10 days

0

27

RedMax 575018102

CAP 3.5IN SEALED

Note: Fuel Cap

$

$

Not available

28

RedMax 532003645

BUSHING OUTLET T

Note: Fuel Tank Pickup Tube Grommet

$4.99

$

In Stock, Qty 20+

0

29

RedMax 576618101

VALVE.FUEL.CHECK

Note: Roll over Valve

$30.99

$

Usually ships in 3-10 days

0

30

RedMax 584648201

GROMMET.CHECK.FUEL

Note: Roll over Valve Grommet

$4.99

$

In Stock, Qty 20+

0

31

RedMax 590209101

GROMMET, FUEL SENSOR

Note: Fuel Sender Grommet

$5.99

$

Usually ships in 3-10 days

0

32

RedMax 590638801

SENSOR.FUEL.LVL.FLOAT.V500

Note: Fuel Level Sensor

$179.99

$

Usually ships in 3-10 days

0
