CV 54 (970465101) - RedMax 54" Stand-On Mower, Kawasaki FX (2020-02) HYDRAULIC PUMP - MOTOR 2 Parts Diagram

54" Stand-On Mower, Kawasaki FX

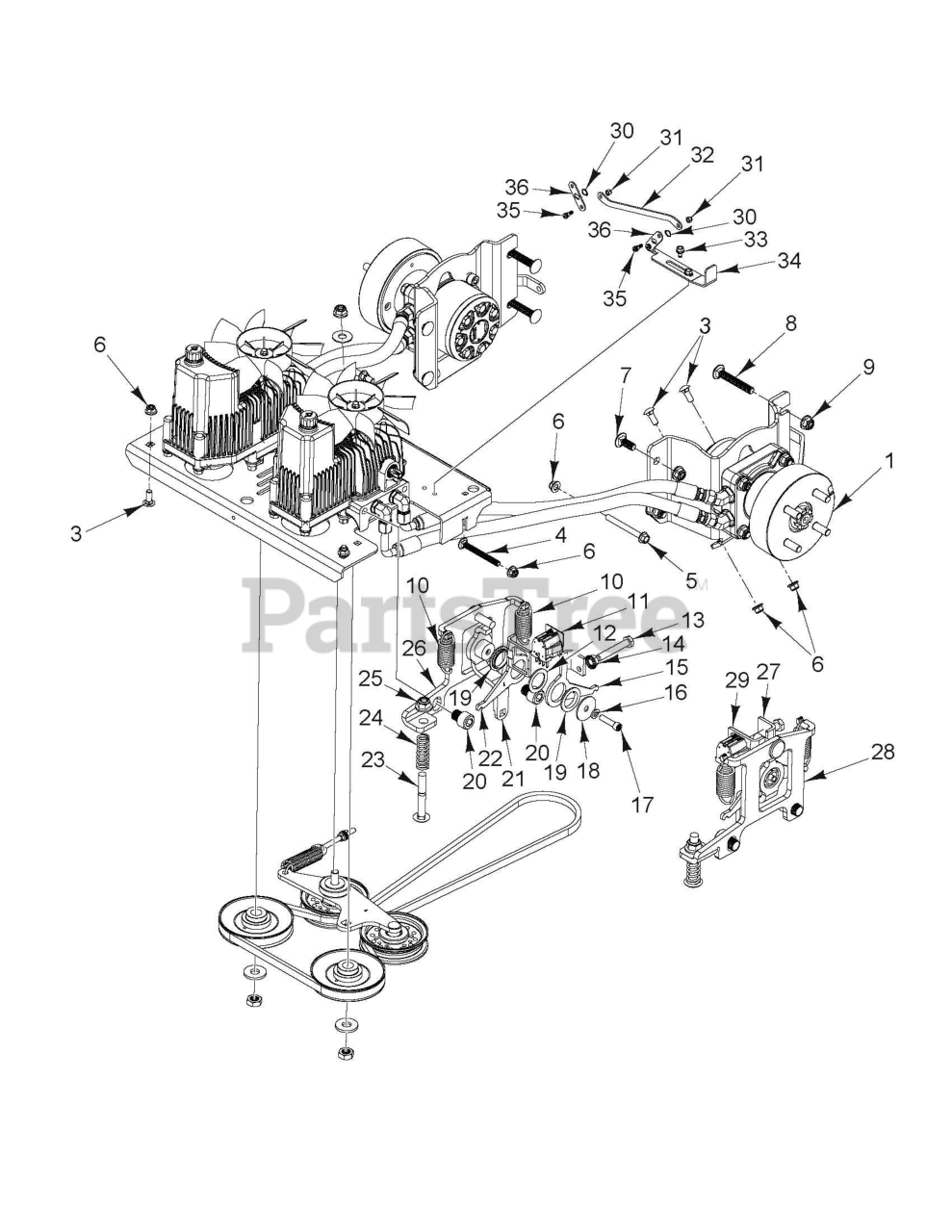

HYDRAULIC PUMP - MOTOR 2 Parts Diagram

  • Title

3

RedMax 595316801

Bolts

Note: "Screw RHSNB 3/8-16 x 1"""

$4.99

$

In Stock, only 2 left!

0

4

RedMax 596584301

Screws

Note: "Screw RHSNB 3/8-16 x 3.5"""

$7.49

$

Usually ships in 3-10 days

0

5

RedMax 596637401

Screws

Note: "Screw HHFS 3/8-16 x 3.5"""

$3.99

$

Usually ships in 3-10 days

0

6

RedMax 521996502

GSPW Nuts

Note: Nut 3/8-16 Hex Flange Nyloc

$3.49

$

In Stock, Qty 11

0

7

RedMax 596584201

Screws
(Superseded to 592808001)

Note: "Screw RHSNB 1/2-13 1-1/4"" L Gr. 5"

$5.99

$

Usually ships in 3-10 days

0

8

RedMax 596584202

Screws

Note: "Screw RHSNB 1/2-13 3-1/4"" L Gr. 5"

$7.49

$

Usually ships in 3-10 days

0

9

RedMax 521991102

NUT 1/2-13 HEX FLANGE NYLOK CL

Note: Nut 1/2-13 Hex Flange Nyloc

$4.99

$

In Stock, Qty 20+

0

10

RedMax 589569601

SPRING RTN; STAND ON

Note: "Spring, RTN"

$4.99

$

Usually ships in 3-10 days

0

11

RedMax 587648401

SWITCH SEAT, 4 PIN NC/NO

Note: "Switch, Seat"

$23.99

$

Usually ships in 3-10 days

0

12

RedMax 590778801

WASHER PLAIN 0.88"X1.28"X0.062

Note: Washer

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 539108395

HCS 5/16-18 X 2 TPBLT GR 5 ZD
(Superseded to 596565201)

Note: "HCS 5/16-18 UNC x 2"" Gr. 5"

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 539990585

NUT 5/16C WHIZ

Note: Nut 5/16

$

$

Not available

15

RedMax 590626401

ARM.RTN.BRACKET.L.SCREW.LH
(Superseded to 590626403)

Note: "Arm, RTN, Bracket, Screw"

$45.99

$

Usually ships in 3-10 days

0

16

RedMax 810040400

LOCKWASHER
(Superseded to 596029801)

Note: Washer

$3.99

$

Usually ships in 3-10 days

0

17

RedMax 590680801

SCREW HEXALOBULAR SOCKET HEAD

Note: "Screw 1/4-20 UNC x 1"" Gr. 8"

$11.99

$

Usually ships in 3-10 days

0

18

RedMax 590686001

WASHER FENDER 1/4"X1.25"X0.08"

Note: "Washer 1/4"" x 1.25"""

$3.99

$

In Stock, only 4 left!

0

19

RedMax 582688801

BUSHING FLANGE; PLASTIC; IGUS

Note: Bushing

$8.49

$

Usually ships in 3-10 days

0

20

RedMax 582681801

SCREW SOCKET HEAD CAP SCREW 1/

Note: "Screw, 1/2-20 UNF x .5"" Internal, Hex Gr.8"

$3.99

$

Usually ships in 3-10 days

0

21

RedMax 589524701

ARM CONTROL; STAND ON; RTN

Note: "Arm, Control"

$27.99

$

Usually ships in 3-10 days

0

22

RedMax 589569401

ARM.RTN.BRACKET.L.SWITCH.LH
(Superseded to 589569403)

Note: "Arm, RTN, Bracket, LH, Switch"

$47.99

$

Usually ships in 3-10 days

0

23

RedMax 872110620

BOLT
(Superseded to 596435101)

Note: "Bolt 3/8-16 x 2.5"" Gr. 5"

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 575230301

SPRING, ENGAGEMENT

Note: "Spring, Engagement"

$5.99

$

In Stock, Qty 14

0

25

RedMax 521996502

GSPW Nuts

Note: Nut 3/8-16 Hex Flange

$3.49

$

In Stock, Qty 11

0

26

RedMax 590626002

BRACKET STATIONARY; RTN; WELDM

Note: "Bracket, Stationary, Weldment, LH"

$33.99

$

Usually ships in 3-10 days

0

27

RedMax 590626402

ARM.RTN.BRACKET.L.SCREW.RH
(Superseded to 590626404)

Note: "Arm, RTN, Bracket, Screw"

$45.99

$

Usually ships in 3-10 days

0

28

RedMax 590626004

BRACKET STATIONARY; RTN; WELDM

Note: "Bracket, Stationary, Weldment, RH"

$47.99

$

Usually ships in 3-10 days

0

29

RedMax 589569402

ARM.RTN.BRACKET.L.SWITCH.RH
(Superseded to 589569404)

Note: "Arm, RTN, Bracket, RH, Switch"

$47.99

$

Usually ships in 3-10 days

0

30

RedMax 592857501

CLIP C; EXTERNAL .461 ID X .03

Note: Clip

$3.99

$

In Stock, only 1 left!

0

31

RedMax 595086601

NUT HEXAGON 1/4-20 ST ZPB

Note: Nut

$

$

Not available

32

RedMax 582688503

LINK.PNT.CROSS.PUMP.BYPAS.EDIP

Note: "Link, Cross"

$11.99

$

Usually ships in 3-10 days

0

33

RedMax 532165492

BOLT.SHOULDER.5/16-18X

Note: Bolt

$9.49

$

In Stock, only 2 left!

0

34

RedMax 582688603

PULL.ROD.BYPASS.MS.X431

Note: "Pull Rod, Pump Bypass"

$21.99

$

Usually ships in 3-10 days

0

35

RedMax 592858301

BOLT 5/16 X .25 SHOULDER

Note: Bolt 5/16 x .25 Shoulder

$3.99

$

Usually ships in 3-10 days

0

36

RedMax 582688403

PIVOTING.PNT.ARM.PMP.BYPS.EDIP

Note: Pivoting Arm

$5.99

$

Usually ships in 3-10 days

0
