RedMax CV 54 (970465101) - RedMax 54" Stand-On Mower, Kawasaki FX (2020-02) MOWER DECK / CUTTING DECK Parts Lookup with Diagrams

1

RedMax 593125602

Decks

Note: "Kit, Deck"

$3419.99

$

Usually ships in 3-10 days

2

RedMax 580943306

SPINDLE.ASSY.IRON

Note: "Spindle Assy. 10"""

$341.99

$

In Stock, only 1 left!

3

RedMax 574210602

Screws

Note: Screw 1/2-13 UNC x 1 Gr. 5

$3.49

$

In Stock, Qty 5

4

RedMax 539130646

PULLEY - 6.57

Note: Pulley

$31.99

$

In Stock, Qty 12

5

RedMax 596433301

Bolts

Note: "Bolt 5/16-18 x 1/2"" Gr. 5"

$3.49

$

In Stock, Qty 6

6

RedMax 596565001

Washers

Note: Washer 5/16

$3.49

$

Usually ships in 3-10 days

7

RedMax 582107702

BLADE STANDON 54 CCC DISCHARGE

Note: Blade

$37.99

$

Usually ships in 3-10 days

8

RedMax 539119007

BLADE BOLT/WASHER

Note: "Screw, Blade Bolt/Washer"

$13.99

$

In Stock, Qty 20+

9

RedMax 590185902

ARM STANDON 54 CCC RH DRWBR

Note: "Arm, Weldment RH"

$398.99

$

Usually ships in 3-10 days

10

RedMax 590185802

ARM STANDON LH DRAWBAR WELDMEN

Note: "Arm, Weldment LH"

$398.99

$

Usually ships in 3-10 days

11

RedMax 590325201

SPACER STANDON DRAWBAR BEARING

(Superseded to 590325202) 

Note: "Spacer, Drawbar Bearing"

$9.49

$

Usually ships in 3-10 days

12

RedMax 580754602

Bolts

Note: "Bolt 5/8-11 UNC x 3,5"

$9.49

$

Usually ships in 3-10 days

13

RedMax 596320001

Washers

Note: Washer

$3.49

$

In Stock, Qty 8

14

RedMax 525829102

Nuts

Note: Nut 5/8-11 Flange Nyloc

$3.49

$

In Stock, only 1 left!

15

RedMax 589418704

Brackets

Note: "Bracket, RH Pulley Cover"

$68.99

$

Usually ships in 3-10 days

16

RedMax 589418504

Covers

Note: "Cover, RH Pulley"

$51.99

$

Usually ships in 3-10 days

17

RedMax 589603704

Brackets

Note: "Bracket, LH Pulley Cover"

$51.99

$

Usually ships in 3-10 days

18

RedMax 590183804

Covers

Note: "Cover, LH Pulley"

$68.99

$

Usually ships in 3-10 days

19

RedMax 532196539

BOLT.SHOULDER

Note: Bolt

$1.49

$

In Stock, Qty 20+

20

RedMax 539104763

U-CLIP 5/16-18 NUT RETAINER

Note: U-Clip 5/16-18 Nut Retainer

$4.99

$

In Stock, Qty 20+

21

RedMax 597783101

GSPW Knobs

Note: Knob

$4.99

$

In Stock, Qty 10

22

RedMax 589418202

Brackets

Note: "Bracket, Upper Deflector"

$51.99

$

Usually ships in 3-10 days

23

RedMax 592797401

DEFLECTOR STANDON MOLDED DECK

Note: "Deflector, Molded Deck"

$96.99

$

In Stock, only 1 left!

24

RedMax 589418102

Brackets

Note: "Bracket, Lower Deflector"

$34.99

$

Usually ships in 3-10 days

25

RedMax 595901101

Bolts

Note: "Bolt 3/8-16 UNC x 1,25"" Gr. 5"

$4.99

$

Usually ships in 3-10 days

26

RedMax 521996502

GSPW Nuts

Note: Nut 3/8-16 Flange

$3.49

$

In Stock, Qty 20+

27

RedMax 590542501

PULLEY.IDLER.FLAT.4"

Note: "Pulley 4"" Flat Idler"

$51.99

$

Usually ships in 3-10 days

28

RedMax 596564404

Bolts

Note: "Bolt 3/8-16 x 2-1/4"" Gr. 5"

$3.49

$

In Stock, only 2 left!

29

RedMax 596770301

Washers

Note: Washer

$5.99

$

In Stock, Qty 20+

30

RedMax 590185302

Spacers

Note: "Spacer, Deck Tensioner Arm"

$11.99

$

In Stock, only 1 left!

31

RedMax 590185402

Spacers

Note: "Spacer, Stacked Pulley Arm"

$13.99

$

In Stock, only 2 left!

32

RedMax 590185502

Spacers

Note: "Spacer, Stacked Pulley Upper"

$22.99

$

In Stock, only 1 left!

34

RedMax 599568701

Bearings

Note: Stacker Bearing Kit

$68.99

$

Usually ships in 3-10 days

34

RedMax 589595701

PULLEY.STANDON.54CCC.STACKED

Note: Stacker Pulley ASM w/ Bearings

$205.99

$

Usually ships in 3-10 days

35

RedMax 574169601

ROLLER, GAUGE .635 BORN

Note: Roller

$20.99

$

In Stock, Qty 16

36

RedMax 574196502

Tubes

Note: "Tube, Roller Axle Long"

$22.99

$

In Stock, Qty 15

37

RedMax 594944501

Bolts

Note: Bolt 1/2-13 x 8.0 Cup Head Square Neck

$9.49

$

In Stock, Qty 13

38

RedMax 521991102

NUT 1/2-13 HEX FLANGE NYLOK CL

Note: Nut 1/2-13 Hex Flange Nylok

$4.99

$

In Stock, Qty 9

39

RedMax 510022302

Screws

Note: Screw 1/2-13 x 4-3/4 Gr. 5 Cup Head Square Neck

$6.99

$

In Stock, Qty 9

40

RedMax 574196402

Tubes

Note: "Tube, Gage Roller Axle"

$6.99

$

In Stock, Qty 14

41

RedMax 539106850

SPRING

(Superseded to 596645601) 

Note: "Spring, Idler"

$11.99

$

In Stock, only 2 left!

42

RedMax 501851401

BELT STANDON 54 CCC DECK

Note: Belt

$102.99

$

In Stock, only 2 left!

43

RedMax 525834202

Screws

Note: "Screw 3/8-16 UNC x 1,25"" Gr. 5"

$4.99

$

Usually ships in 3-10 days

44

RedMax 596584401

Bolts

Note: "Bolt 3/8-16 x 4-1/4"" Gr. 5"

$3.49

$

In Stock, only 2 left!

45

RedMax 590644601

DECAL BELT ROUTING DECAL DECAL

Note: "Decal, Belt Routing"

$3.49

$

Usually ships in 3-10 days

46

RedMax 501603705

BEARING FLANGED;PLASTIC 7/8" I

Note: "Bushing, Flange 7/8 x 1.5"""

$7.99

$

Usually ships in 3-10 days

47

RedMax 521996502

GSPW Nuts

Note: Nut 3/8-16 Nyloc

$3.49

$

In Stock, Qty 20+

48

RedMax 590542401

PULLEY.IDLER.FLAT.3.06"

Note: "Pulley, Flat Idler"

$45.99

$

Usually ships in 3-10 days

49

RedMax 596136201

Bolts

Note: "Bolt 3/8-16 x 3/4"""

$4.99

$

In Stock, Qty 6

50

RedMax 589808502

ARM STANDON WELDMENT; DECK TEN

Note: Tensioner Arm

$45.99

$

Usually ships in 3-10 days

51

RedMax 501603706

BEARING FLANGED; PLASTIC 5/8"

Note: "Bushing 5/8 x .375"""

$4.99

$

In Stock, only 2 left!

52

RedMax 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: Nut 5/16-18 Nyloc

$6.99

$

In Stock, Qty 20+

53

RedMax 596240801

GSPW Bolts

Note: "Eyebolt 5/16 x 3.5"""

$4.99

$

In Stock, only 2 left!

56

RedMax 594944601

Bolts

Note: "Bolt 7/16 x 1.5"" Gr. 5"

$3.49

$

In Stock, only 3 left!

57

RedMax 595901901

Nuts

Note: Nut 7/16-14

$3.49

$

In Stock, Qty 17

58

RedMax 590678701

BOLT HEXAGON HEAD WITH FLANGE

Note: Bolt 5/8-11 x 6 Gr. 8

$7.99

$

Usually ships in 3-10 days

59

RedMax 590325301

TUBE STANDON DRAWBAR SPACER

(Superseded to 590325302) 

Note: Tube

$5.99

$

Usually ships in 3-10 days

60

RedMax 525829102

Nuts

Note: Nut 5/8-11 Flange Nyloc

$3.49

$

In Stock, only 1 left!

61

RedMax 592873501

BELT.DECK.DRIVE.STAND-ON

Note: Belt

$56.99

$

In Stock, only 2 left!

64

RedMax 594946401

Washers

$5.99

$

In Stock, only 1 left!

65

RedMax 819131016

WASHER

$3.49

$

In Stock, only 4 left!

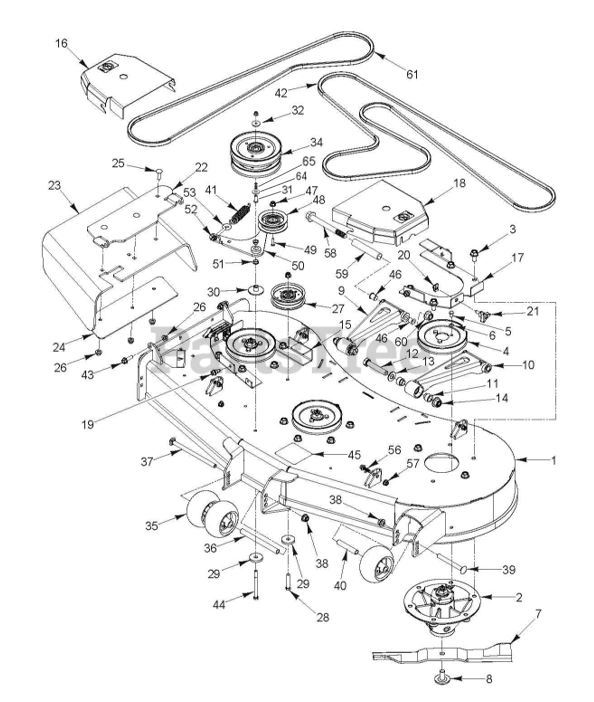

CV 54 (970465101) - RedMax 54" Stand-On Mower, Kawasaki FX (2020-02) MOWER DECK / CUTTING DECK Parts Diagram

MOWER DECK / CUTTING DECK Parts Diagram
