CV 54 (970465101) - RedMax 54" Stand-On Mower, Kawasaki FX (2020-02) MOWER LIFT / DECK LIFT Parts Diagram

54" Stand-On Mower, Kawasaki FX

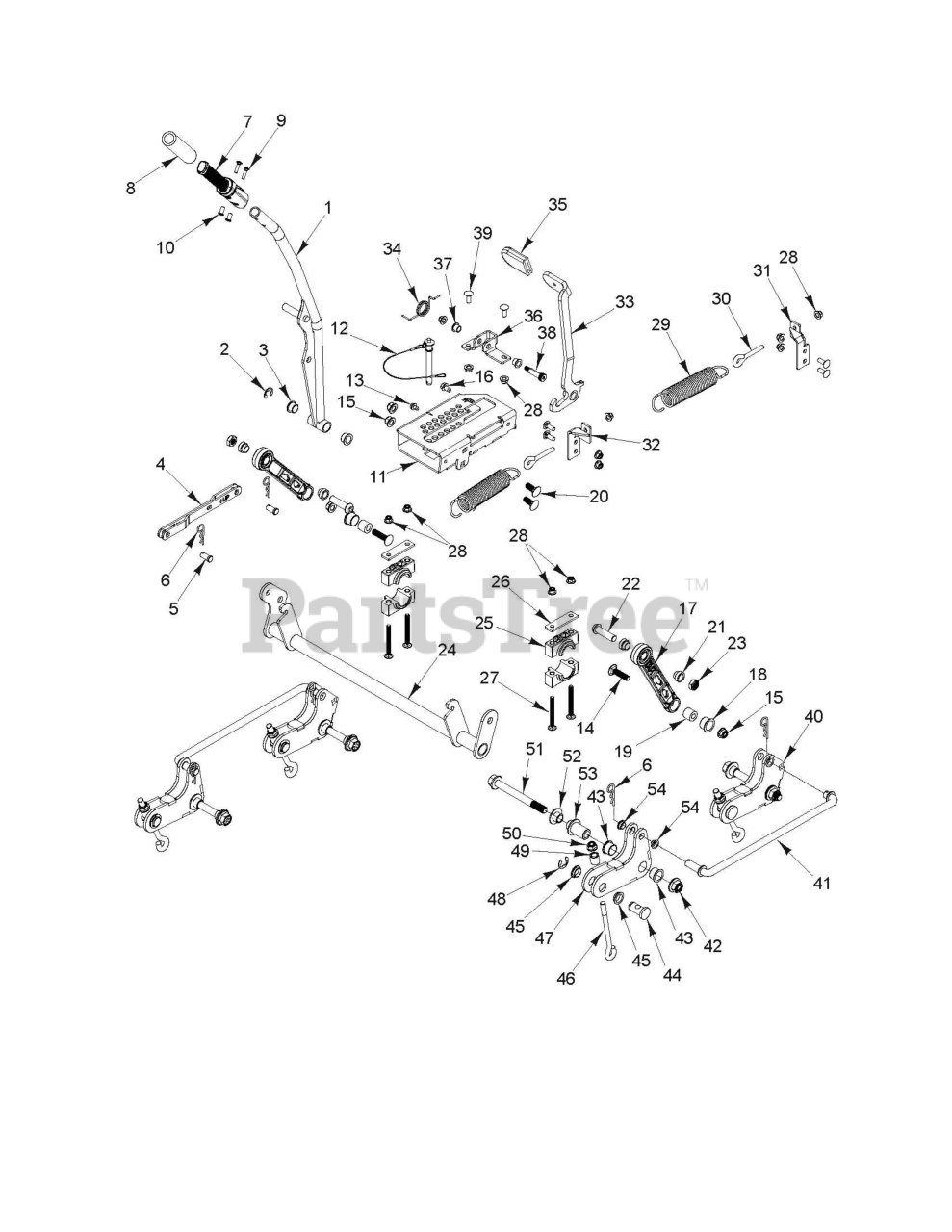

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

1

RedMax 590897803

Levers

Note: "Lever, Assembly Weldment"

$250.99

$

Usually ships in 3-10 days

0

2

RedMax 590002901

RING E-CLIP 3/4" ID

Note: "Ring, E-Clip 3/4"" ID"

$9.49

$

Usually ships in 3-10 days

0

3

RedMax 539131518

BEARING, FLANGE

Note: "Bearing, Flange"

$13.99

$

In Stock, Qty 11

0

4

RedMax 590662401

STRAP
(Superseded to 590662402)

Note: "Strap, Weldment"

$68.99

$

Usually ships in 3-10 days

0

5

RedMax 590866401

PIN CLEVIS; 1/2 X 1

Note: "Pin, Clevis"

$5.99

$

Usually ships in 3-10 days

0

6

RedMax 596273101

Pins

Note: "Pin, Hairpin, Cotter"

$3.49

$

In Stock, Qty 20+

0

7

RedMax 590960302

HANDLE DECK LIFT LEVER ARM HUS

Note: "Handle, Deck Lift Lever Arm"

$68.99

$

Usually ships in 3-10 days

0

8

RedMax 592723901

GRIP FOAM; DECK LIFT HANDLE

Note: "Grip, Foam"

$9.99

$

Usually ships in 3-10 days

0

9

RedMax 592807801

BOLT CUP HEAD SQUARE NECK 1/4-

Note: "Bolt, 1/4-20"" x 1"""

$3.49

$

In Stock, Qty 7

0

10

RedMax 592808201

NUT HEXAGON SOCKET CAP 1/4-20"

Note: "Nut, 1/4-20"""

$3.49

$

Usually ships in 3-10 days

0

11

RedMax 599265602

Plates

Note: "Plate, Deck Height Selection"

$136.99

$

Usually ships in 3-10 days

0

12

RedMax 590465502

Pins

Note: "Pin, Push Button Detent 1/2"" x 3-1/2"""

$39.99

$

Usually ships in 3-10 days

0

13

RedMax 596030701

Screws

Note: "Screw, 5/16-18 x 12"""

$3.49

$

In Stock, Qty 8

0

14

RedMax 592807902

Bolts

Note: "Bolt, 1/2-13 x 2.04"" Gr. 5"

$5.99

$

Usually ships in 3-10 days

0

15

RedMax 521991102

NUT 1/2-13 HEX FLANGE NYLOK CL

Note: "Nut, 1/2-13 Hex Flange Nylok"

$4.99

$

In Stock, Qty 12

0

16

RedMax 596564002

Screws

Note: "Bolt, 3/8-16 x .655"""

$3.49

$

Usually ships in 3-10 days

0

17

RedMax 592727802

Links

Note: "Linkage, Pivot"

$68.99

$

Usually ships in 3-10 days

0

18

RedMax 590866501

BUSHING NYLON 1 X 3/4

Note: "Bushing, Nylon 1 x 3/4"""

$4.99

$

Usually ships in 3-10 days

0

19

RedMax 590003502

SPACER LINKAGE PIVOT E-COAT BL

Note: "Spacer, Linkage Pivot"

$17.99

$

Usually ships in 3-10 days

0

20

RedMax 592808001

BOLT CUP HEAD SQUARE NECK 1/2-

Note: "Bolt, 1/2-13"" x 1-1/4"" Gr. 5"

$5.99

$

Usually ships in 3-10 days

0

21

RedMax 596839401

Spacers

Note: "Spacer, Strut"

$6.99

$

In Stock, only 2 left!

0

22

RedMax 592807701

BOLT CUP HEAD SQUARE NECK 5/3-

Note: "Bolt 5/3-11"" x 2.25"" Gr. 5"

$14.99

$

Usually ships in 3-10 days

0

23

RedMax 589677702

Nuts

Note: Nut 5/8-11 Gr. 5

$3.49

$

Usually ships in 3-10 days

0

24

RedMax 590197802

SHAFT WELDMENT; DECK LIFT X431

Note: "Shaft, Weldment"

$205.99

$

Usually ships in 3-10 days

0

25

RedMax 510023902

BLOCK, PILLOW

Note: "Block, Pillow W/Inserts"

$14.99

$

Usually ships in 3-10 days

0

26

RedMax 593634102

PLATE.PNT.PILLOW.BLOCK.EDIP

Note: "Plate, Pillow Block"

$3.49

$

Usually ships in 3-10 days

0

27

RedMax 596584302

Screws

Note: "Screw 3/8-16 x 1"" Gr. 5"

$3.49

$

Usually ships in 3-10 days

0

28

RedMax 521996502

GSPW Nuts

Note: "Nut 3/8-16 x 1"" Gr. 5"

$3.49

$

In Stock, Qty 20+

0

29

RedMax 590003201

SPRING EXTENSION; STAND-ON DEC

Note: "Spring, Extension"

$

$

Not available

30

RedMax 596671601

Bolts

Note: "Bolt, Eye 3/8-16 x 1-3/4 x 3-1/4"""

$3.49

$

Usually ships in 3-10 days

0

31

RedMax 590673002

BRACKET SPRING ANCHOR LH X431

Note: "Spacer, Eyebolt"

$22.99

$

Usually ships in 3-10 days

0

32

RedMax 590672902

BRACKET SPRING ANCHOR RH X431

Note: "Bracket, Spring Anchor"

$22.99

$

Usually ships in 3-10 days

0

33

RedMax 590850503

Latch

Note: "Latch, Weldment"

$125.99

$

Usually ships in 3-10 days

0

34

RedMax 590856101

SPRING TORSION; TRANSPORT MODE

Note: "Spring, Torsion"

$7.99

$

Usually ships in 3-10 days

0

35

RedMax 591041901

GRIP TRANSPORT MODE

Note: "Grip, Transport Mode"

$7.99

$

In Stock, only 1 left!

0

36

RedMax 590680202

BRACKET TRANSPORT MODE X431 E-

Note: "Bracket, Transport Mode"

$22.99

$

Usually ships in 3-10 days

0

37

RedMax 591042101

BUSHING FLANGED PLASTIC; RFI-0

Note: "Bushing, Flanged Plastic"

$3.49

$

Usually ships in 3-10 days

0

38

RedMax 592807601

BOLT HEXAGON SOCKET HEAD, SHOU

Note: "Bolt 3/8-16"" x 2"""

$5.99

$

Usually ships in 3-10 days

0

39

RedMax 595316801

Bolts

Note: "Bolt, Carriage 3/8-16 x 1"" Gr. 5"

$4.99

$

In Stock, only 2 left!

0

40

RedMax 589605102

BELLCRANK STANDON REAR WELDMEN

Note: Rear Bellcrank Weldment

$68.99

$

Usually ships in 3-10 days

0

41

RedMax 589414402

Rods

Note: "Rod, Bellcrank Connecting"

$62.99

$

Usually ships in 3-10 days

0

42

RedMax 525829102

Nuts

Note: Nut 5/8-11 Flange Nyloc

$3.49

$

In Stock, only 1 left!

0

43

RedMax 501603702

BEARING FLANGED;PLASTIC 1" ID

Note: "Bushing 1 x 3/4"" Flange"

$9.49

$

Usually ships in 3-10 days

0

44

RedMax 589414301

PIN STANDON DECK LIFT TRUNNION
(Superseded to 589414302)

Note: "Pin, Trunnion"

$85.99

$

Usually ships in 3-10 days

0

45

RedMax 501603703

BEARING FLANGED;PLASTIC 7/8" I

Note: "Bushing 7/8 x .312"" Flange"

$4.99

$

Usually ships in 3-10 days

0

46

RedMax 576479001

EYEBOLT, DECK LIFT
(Superseded to 576479002)

Note: Eyebolt

$6.99

$

Usually ships in 3-10 days

0

47

RedMax 589604902

BELLCRANK STANDON FRONT WELDME

Note: Front Bellcrank Weldment

$96.99

$

Usually ships in 3-10 days

0

48

RedMax 590673302

Hardware

Note: "E-Clip 7/8"""

$3.49

$

Usually ships in 3-10 days

0

49

RedMax 576485801

SPACER, EYEBOLT
(Superseded to 576485802)

Note: "Bushing, Inside"

$4.99

$

In Stock, only 3 left!

0

50

RedMax 521991102

NUT 1/2-13 HEX FLANGE NYLOK CL

Note: Nut 1/2-13 Nyloc

$4.99

$

In Stock, Qty 12

0

51

RedMax 590678701

BOLT HEXAGON HEAD WITH FLANGE

Note: Bolt 5/8-11 x 6 Gr. 8

$7.99

$

Usually ships in 3-10 days

0

52

RedMax 589414102

Bushings

Note: "Bushing, Inside"

$4.99

$

Usually ships in 3-10 days

0

53

RedMax 589414202

Bushings

Note: "Bushing, Outside"

$7.99

$

Usually ships in 3-10 days

0

54

RedMax 501603704

BEARING FLANGED;PLASTIC 5/8" I

Note: "Bushing 5/8 x .312"" Flange"

$7.99

$

Usually ships in 3-10 days

0
