CV 54 (970465101) - RedMax 54" Stand-On Mower, Kawasaki FX (2020-02) TRANSMISSION Parts Diagram

54" Stand-On Mower, Kawasaki FX

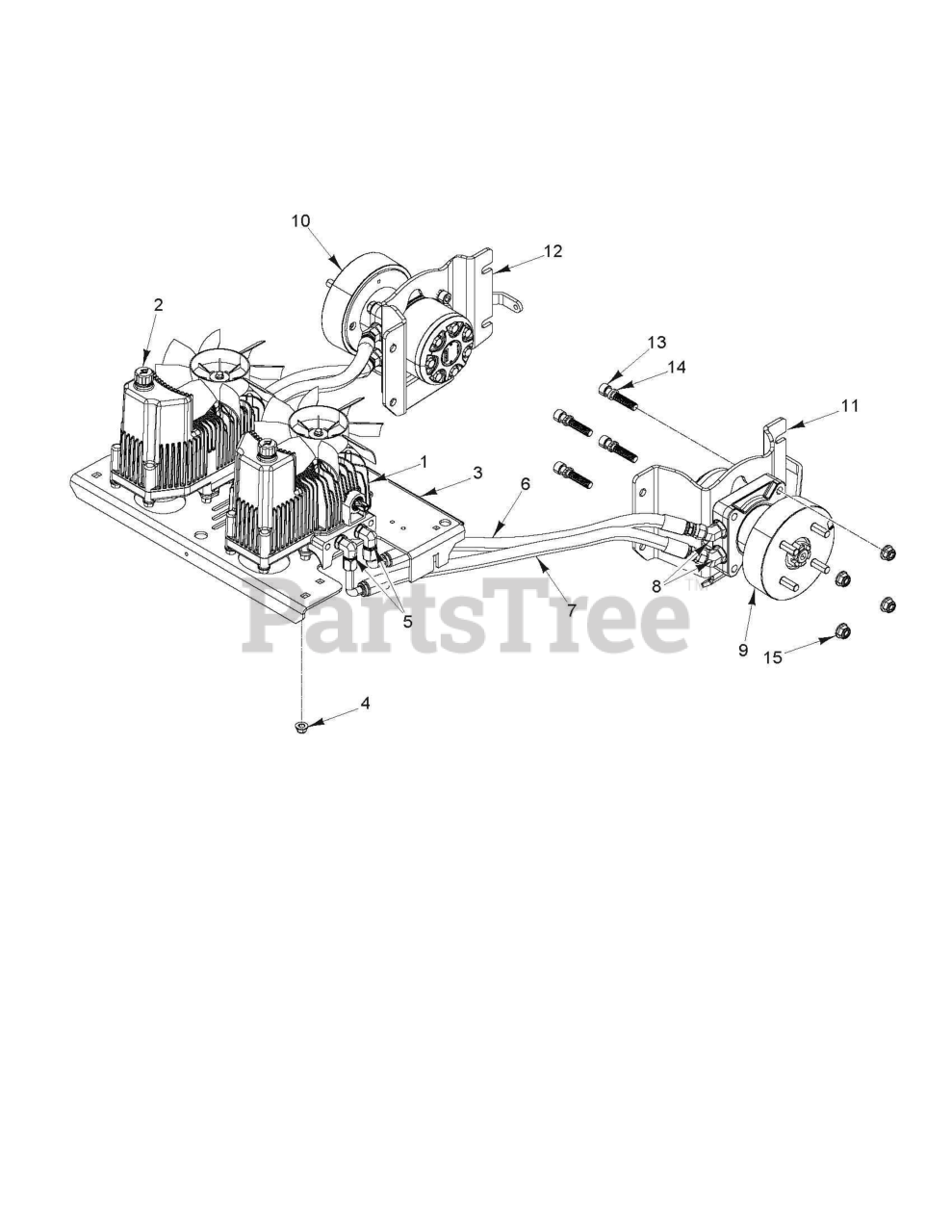

TRANSMISSION Parts Diagram

  • Title

1

RedMax 589398101

PUMP 12CC LH

Note: Pump 12cc LH

$3760.99

$

Usually ships in 3-10 days

0

2

RedMax 589398102

PUMP 12CC RH

Note: Pump 12cc RH

$3760.99

$

Usually ships in 3-10 days

0

3

RedMax 582641102

PLATE MTG, PUMP BLACK, X431

Note: "Plate Mtg, Pump Black, x431"

$159.99

$

Usually ships in 3-10 days

0

4

RedMax 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

Note: Nut 3/8-16 Hex Glange Nyloc

$3.99

$

In Stock, Qty 20+

0

5

RedMax 589398501

FITTING.90ELB.3/4-16.SAE.ORB

Note: "Fitting 90 Elb, 3/4-16 SAE orb, 3/4-16 JIC"

$17.99

$

Usually ships in 3-10 days

0

6

RedMax 589419301

HYDRAULIC.HOSE.LOWER

Note: Hydraulic Hose Upper Blue

$227.99

$

Usually ships in 3-10 days

0

7

RedMax 589419201

HYDRAULIC.HOSE.LOWER

Note: Hydraulic Hose Lower Black

$250.99

$

Usually ships in 3-10 days

0

8

RedMax 589398401

FITTING.45.ELB.7/8-14.SAE.ORB

Note: "Fitting 45 Elb, 7/8-14 SAE orb, 3/4-16 JIC"

$28.99

$

Usually ships in 3-10 days

0

9

RedMax 589421801

HYDRAULIC MOTOR 195CC, LH

Note: "Hydraulic Motor 195cc, w/ p-brake LH"

$1937.99

$

Usually ships in 3-10 days

0

10

RedMax 589421802

HYDRAULIC MOTOR 195CC, RH

Note: "Hydraulic Motor 195cc, w/ p-brake RH"

$2735.99

$

Usually ships in 3-10 days

0

11

RedMax 582635903

BRACKET MTG, MOTOR LH, BLACK,

Note: "Bracket Mtg, Motor LH, Black, x431"

$136.99

$

Usually ships in 3-10 days

0

12

RedMax 582635904

BRACKET MTG, MOTOR RH, BLACK,

Note: "Bracket Mtg, Motor RH, Black, x431"

$136.99

$

Usually ships in 3-10 days

0

13

RedMax 582692301

SCREW SHCS, 1/2-13 X 2-1/2"L

Note: "Screw SHCS, 1/2-13 x 2-1/2"

$14.99

$

Usually ships in 3-10 days

0

14

RedMax 582692401

LOCKWASHER .512 ID, .733 OD, .

Note: "Lockwasher .512 ID, .733 OD, .172 THK"

$7.99

$

Usually ships in 3-10 days

0

15

RedMax 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

Note: Nut 1/2-13 Hex Flange Nylok

$4.99

$

In Stock, Qty 20+

0
