CW 36 - Cub Cadet Snow Thrower Attachment Engine Driven Power Take-Off Clutch Attachment Parts Diagram

Snow Thrower Attachment

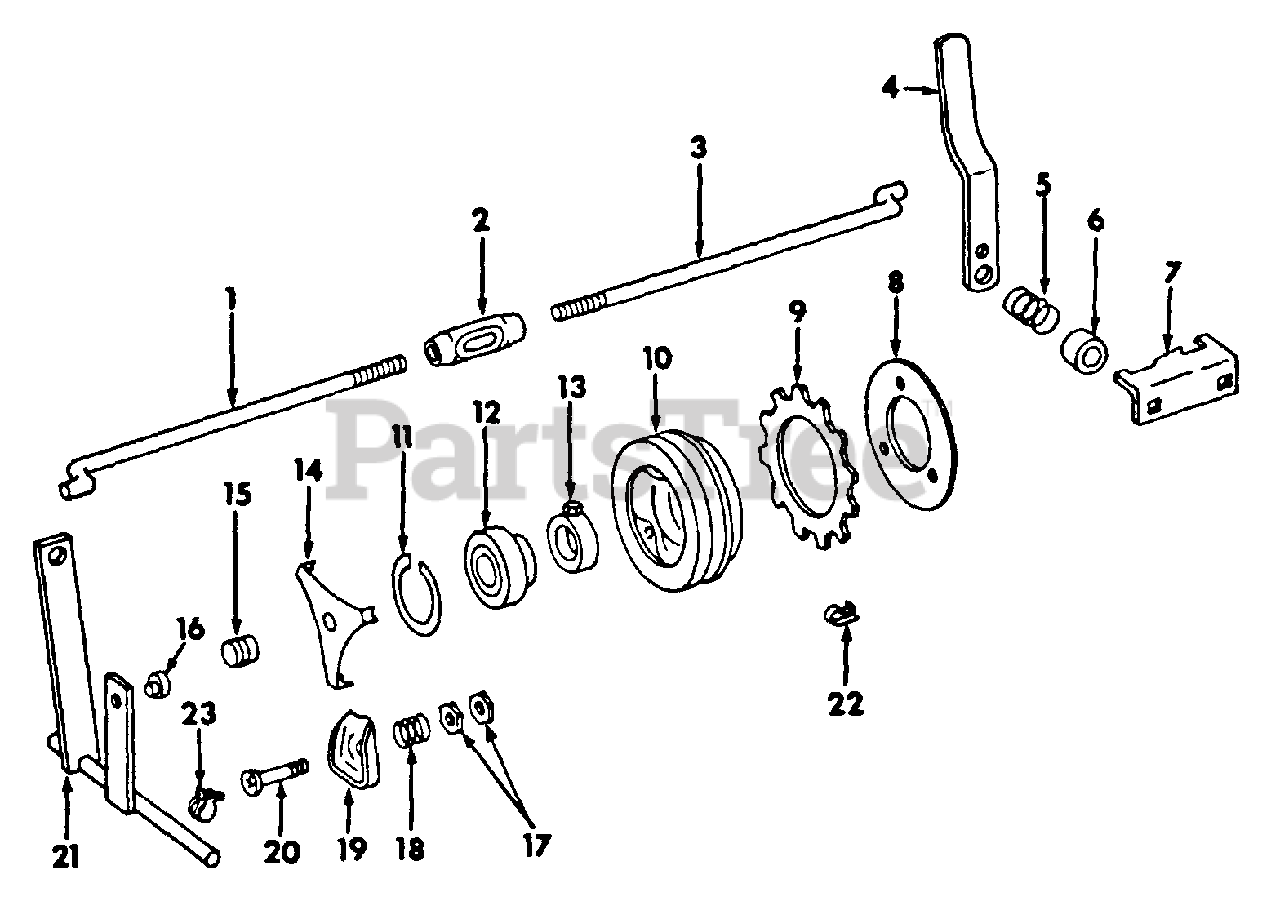

Engine Driven Power Take-Off Clutch Attachment Parts Diagram

  • Title

1

Cub Cadet IH-473484-R1

ROD, CLUTCH

$

$

Not available

Cub Cadet IH-120375

NUT, 1/4-20 C-Z HEX. JAM
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 12

0

2

Cub Cadet IH-473589-R1

TURNBUCKLE, ROD

$

$

Not available

3

Cub Cadet IH-473590-R1

ROD, REAR CLUTCH

$

$

Not available

4

Cub Cadet IH-401635-R2

LEVER, HANDLE-WILL WORK FOR 473485-R2

$

$

Not available

BOLT, 3/8-16 X 1-1/2 C-Z CR-REC TRUSS-HD MACH

$

$

Not available

Cub Cadet IH-124829

NUT, 3/8-16 C-Z HEX. JAM
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 12

0

Cub Cadet IH-120394

WASHER, 13/32 X 13/16 X 16 GA C-Z
(Superseded to 936-0140)

$

$

Not available

Cub Cadet 120382

WASHER. 3/8 C-Z MED LOCK

$

$

Currently unavailable

Cub Cadet IH-481525-R1

SPACER, HANDLE

$

$

Not available

5

Cub Cadet IH-133641-R1

SPRING. 15 GA COMPRESSION

Note: CUB CADET 70, 71 & 100 TRACTORS

$

$

Not available

6

~NLA

SPACER, SPRING

Note: CUB CADET 70, 71 & 100 TRACTORS

$

$

Not available

7

~NLA

LATCH, HANDLE

$

$

Not available

~NLA

BOLT. 1/4-20 X 1/2 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet IH-120375

NUT, 1/4-20 C-Z HEX.
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 12

0

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

8

Cub Cadet IH-473471-R1

PLATE, PRESSURE

$167.99

$

Usually ships in 3-6 days

0

9

DISC, FRICTION-ORDER 483525-R92

$

$

Not available

10

Cub Cadet IH-59983-C1

PULLEY, MOWER ACTUATING
(Superseded to IH-59983-C3)

Note: REPLACES P/N 473474-R1

$189.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-139327

SCREW, 1/4-20 X 1/2 HEX-SOC-HD CONE-PT SET
(Superseded to IH-23025-R2)

$

$

Not available

~NLA

SCREW, 1/4-20 X 1/4 HEX-SOC-HD-F-PT SET

$

$

Not available

11

RING, SNAP 2.197 O.D., FOR PULLEY

$

$

Not available

12

Cub Cadet IH-60071-C91

BEARING W/SNAP RING, BALL
(Superseded to IH-60071-C92)

$64.99

$

In Stock, only 3 left!

0

Cub Cadet IH-60072-C1

SNAP RING FOR BEARING

$

$

Not available

13

Cub Cadet IH-473461-R91

COLLAR W/SET SCREW & LOCK NUT, BRG
(Superseded to IH-455102-R22)

$

$

Not available

14

SPRING, PRESSURE

Note: ORDER P/N 483525-R92

$

$

Not available

15

Cub Cadet IH-473477-R2

BUTTON, THRUST

$16.99

$

Usually ships in 3-6 days

0

16

Cub Cadet IH-473483-R1

BUTTON, WEAR

$11.99

$

In Stock, Qty 13

0

17

Cub Cadet IH-114492

NUT, 1/4-28 HEX. JAM
(Superseded to IH-25930-R2)

$4.99

$

In Stock, Qty 12

0

18

Cub Cadet IH-27452-D

SPRING, COMPRESSION

$7.49

$

In Stock, Qty 19

0

19

Cub Cadet IH-473478-R1

LEVER, THROW-OUT

$13.99

$

In Stock, Qty 8

0

20

Cub Cadet IH-473472-R1

SCREW, SPECIAL MACHINE
(Superseded to IH-473472-R2)

$12.99

$

In Stock, only 4 left!

0

21

Cub Cadet IH-473479-R91

SHAFT W/BUTTON, P/N 478483-R1, CLUTCH
(Superseded to IH-473479-R92)

$

$

Not available

22

Cub Cadet IH-531978-R1

SPRING, FRICTION DISC
(Superseded to IH-531978-R2)

$10.99

$

In Stock, only 3 left!

0

23

~NLA

CLAMP, LOCATING

$

$

Not available

Cub Cadet IH-483525-R92

KIT, PTO CLUTCH SPRING & DISC
(Superseded to 759-3490)

$131.99

$

In Stock, Qty 8

0
