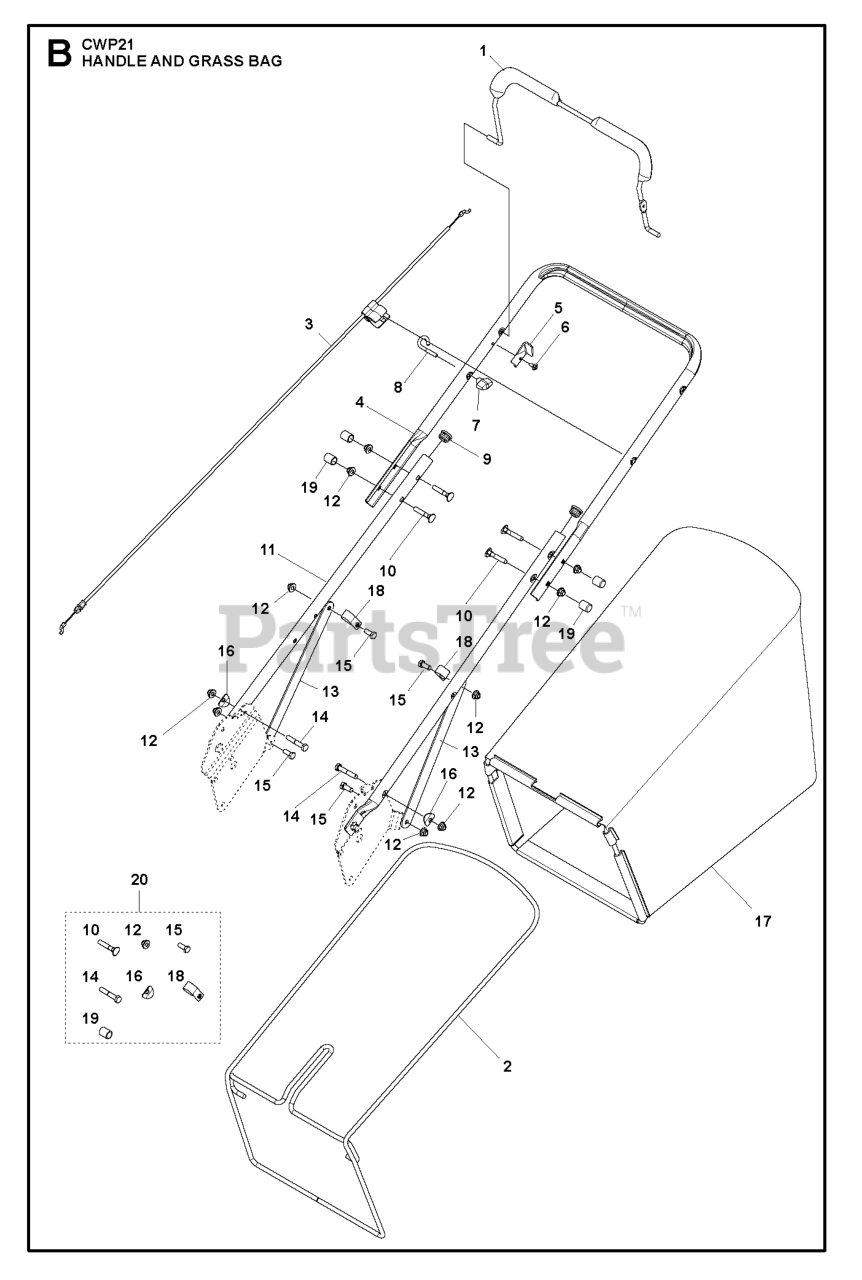

CWP 21 (961320104-00) - RedMax 21" Walk-Behind Mower (2017-10) HANDLE Parts Diagram

21" Walk-Behind Mower

HANDLE Parts Diagram

  • Title

1

RedMax 587478301

BAIL.OM.STRT.MZR.BLACK.428

Note: Straight, Overmolded, Operator Presence

$

$

Not available

2

RedMax 586929102

FRAME.GBAG.AWD.21.BLACK

Note: Grass Bag

$18.99

$

Usually ships in 3-10 days

0

3

RedMax 532440385

CABLE.MZR.RGD.PLUS.STRT
(Superseded to 583547901)

Note: Operator Presence Bail

$15.99

$

In Stock, Qty 20+

0

4

RedMax 589197906

HANDLEBAR UPPER, DST, EXT CRUS

Note: Straight

$

$

Not available

5

RedMax 532430034

BRACKET.UPSTOP.RT

Note: Upstop

$6.49

$

In Stock, Qty 8

0

6

RedMax 532178848

SCREW

Note: 10-16 x 5/8

$7.49

$

In Stock, Qty 20+

0

7

RedMax 581912601

T-KNOB.NEW ROPE GUIDE

Note: T, Rope Guide

$4.99

$

In Stock, Qty 15

0

8

RedMax 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

Note: Rope

$4.99

$

In Stock, only 4 left!

0

9

RedMax 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

Note: Plastic, 7/8, 14-20 Gauge

$4.99

$

Usually ships in 3-10 days

0

10

RedMax 532191574

BOLT, HANDLE 5/16-18X1.75

Note: Concave Head, Retaining

$3.99

$

In Stock, Qty 20+

0

11

RedMax 590686303

HANDLE LOWER, 21 COMMERCIAL BL

Note: Lower 2 Piece, 3 Position

$

$

Not available

12

RedMax 532427942

NUTNYLOK.FLRANGE.5/16-18

Note: 5/16-18 Locknut

$4.99

$

Usually ships in 3-10 days

0

13

RedMax 590560603

BRACE DIAGONAL HANDLE, 21 COMM

Note: Diagonal Handle

$

$

Not available

14

RedMax 874780528

SCREW

Note: Hex, 5/16-18 x 1.75

$7.49

$

In Stock, only 4 left!

0

15

RedMax 592945401

BOLT HEXAGON HEAD 5/16-18"X3/4

Note: 5/16-18 x 0.75, Grade 8

$3.99

$

Usually ships in 3-10 days

0

16

RedMax 592808401

WASHER CURVED 5/16"X1"X0.06" S

Note: Curved Washer, 5/16

$3.99

$

In Stock, only 2 left!

0

17

RedMax 587100402

GBAG.C3610010.GENERIC

Note: 21"

$34.99

$

In Stock, Qty 20+

0

18

RedMax 590686801

CLAMP LOOP, 7/8, 21 COMMERCIAL

Note: 7/8 Loop Clamp

$3.49

$

Usually ships in 3-10 days

0

19

RedMax 592895201

COVER THREAD COVER BLACK

Note: Thread Cover

$3.49

$

Usually ships in 3-10 days

0

20

RedMax 590705501

Note: Bag of Parts

$

$

Currently unavailable
