CXM 550 E (881579) - Champion 16" Walk-Behind Mower, Canada (2013) Deck Housing Group (881326) Parts Diagram

16" Walk-Behind Mower, Canada

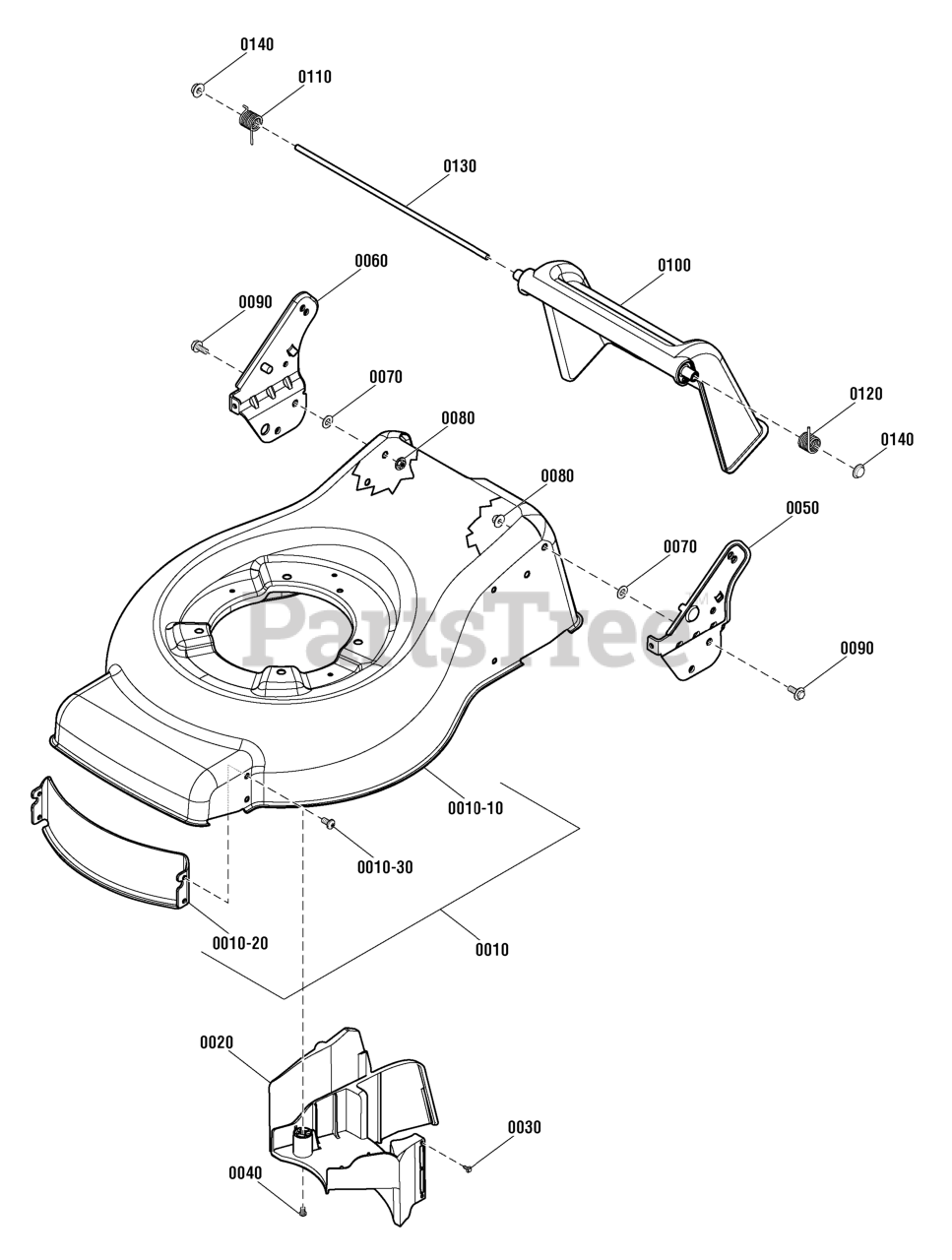

Deck Housing Group (881326) Parts Diagram

  • Title

0010

Murray 881120BIYP

ASSEMBLY, 16" Deck Housing, Single Lever

Note: (Incl. Ref. Nos. 0010-10, 0010-20 & 0010-30)

$233.99

$

Usually ships in 2-12 days

0

0010-10

HOUSING, 16", Single Lever

Note: (Included with Ref. No. 0010)

$

$

Not available

0010-20

Murray 880794YP

BAFFLE, Front, 16"
(Superseded to 880794BMYP)

Note: (Included with Ref. No. 0010)

$38.99

$

Usually ships in 2-12 days

0

0010-30

Murray 880664YP

SCREW, 1/4"-20 X 1/2", Pan Head Taptite

Note: (Included with Ref. No. 0010)

$3.99

$

Usually ships in 2-12 days

0

0020

Murray 880793YP

BAFFLE, Rear Plastic, 16"

$41.99

$

Usually ships in 2-12 days

0

0030

Murray 880804YP

SCREW, 1/4" HI-LO X .75

$3.99

$

Usually ships in 2-12 days

0

0040

Murray 880664YP

SCREW, 1/4"-20 X 1/2", Pan Head Taptite

$3.99

$

Usually ships in 2-12 days

0

0050

Murray 880951AYP

ASSEMBLY, Handle Bracket, LH

$20.99

$

Usually ships in 2-12 days

0

0060

Murray 880950AYP

ASSEMBLY, Handle Bracket, RH

$20.99

$

Usually ships in 2-12 days

0

0070

Murray 880607YP

WASHER, .34 ID, .69 OD, Flat

$3.99

$

Usually ships in 2-12 days

0

0080

Murray 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 7

0

0090

Murray 880748YP

SCREW, 5/16-18 X .63, Hex Washer Head

$3.99

$

Usually ships in 2-12 days

0

0100

Murray 880661YP

DOOR, Rear EU 16"

$30.99

$

Usually ships in 2-12 days

0

0110

Murray 880942YP

SPRING, Torsion, RH

$4.49

$

Usually ships in 2-12 days

0

0120

Murray 880943YP

SPRING, Torsion, LH

$4.49

$

Usually ships in 2-12 days

0

0130

Murray 880213YP

ROD, Rear Door (13" X .02), 16"

$4.49

$

Usually ships in 2-12 days

0

0140

Murray 704005

NUT, 1/4", Push, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0
