CXT 21675 (7800816) - Champion 21" Walk-Behind Mower (2011) Handle Assembly Group (7502112) Parts Diagram

21" Walk-Behind Mower

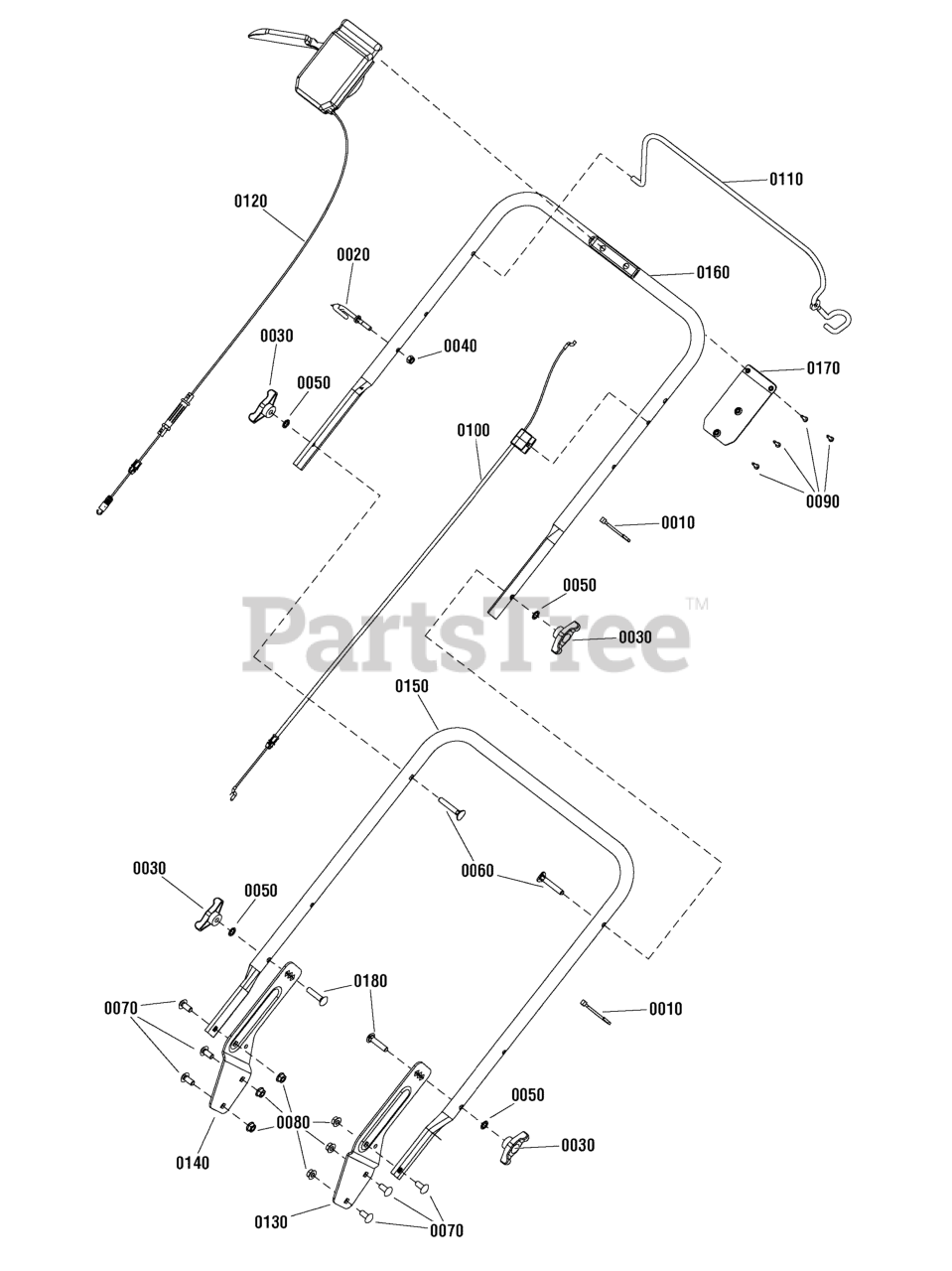

Handle Assembly Group (7502112) Parts Diagram

  • Title

0010

Murray 7024649YP

WIRE TIE, 11 Inch Std Black Nylon

$5.49

$

Usually ships in 2-12 days

0

0020

Murray 7028488MA

GUIDE, ROPE (1/4-20 thread)

$6.99

$

In Stock, only 3 left!

0

0030

Murray 7035744YP

KNOB, Wing, 5/16-18
(Superseded to 703065)

$7.49

$

In Stock, Qty 20+

0

0040

Murray 7076978SM

NUT, Hex Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 11

0

0050

Murray 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0060

Murray 7091189YP

BOLT, Carriage, Curved Head, 5/16-18 x 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 20+

0

0070

Murray 7091508SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0080

Murray 7091601SM

NUT, Hex Flange Centerlock, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

0090

Murray 7100225YP

SCREW, Torxplus Recessed Pan Head, Twin Helix, #8-16
(Superseded to 704209)

$3.99

$

In Stock, only 2 left!

0

0100

Murray 7101399YP

CABLE, Bail, 21"

$23.99

$

In Stock, only 4 left!

0

0110

Murray 7101731AMA

BAIL, Operator Presence Control
(Superseded to 7101731BMYP)

$73.99

$

Usually ships in 2-12 days

0

0120

Murray 7101892MA

ASSEMBLY, Control Head, Single Speed
(Superseded to 7101416YP)

Note: (Incl. Ref. 0120-10)

$

$

Not available

0120-10

Murray 7101398YP

CABLE, Drive
(Superseded to 7101416YP)

Note: (Included with Ref. No. 0120)

$

$

Not available

0130

Murray 7300573AYP

LOWER HANDLE BRACKET, LH

$14.99

$

Usually ships in 2-12 days

0

0140

Murray 7300574AYP

LOWER HANDLE BRACKET, RH

$21.99

$

Usually ships in 2-12 days

0

0150

Murray 7300592AMA

HANDLE, Lower, 21" Rear Discharge
(Superseded to 7301182AYP)

$93.99

$

Usually ships in 2-12 days

0

0160

Murray 7300676AMA

HANDLE, Upper, Brute, Propelled

$

$

Not available

0170

Murray 7300130AMA

PLATE, Control Panel

$23.99

$

Usually ships in 2-12 days

0

0180

Murray 1931337SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-1/2, G5
(Superseded to 703296)

$4.49

$

In Stock, only 2 left!

0
