CYB (13A-325-101) - Cub Cadet Rear-Engine Riding Mower (1999) Hood Assembly & Seat Parts Diagram

Rear-Engine Riding Mower

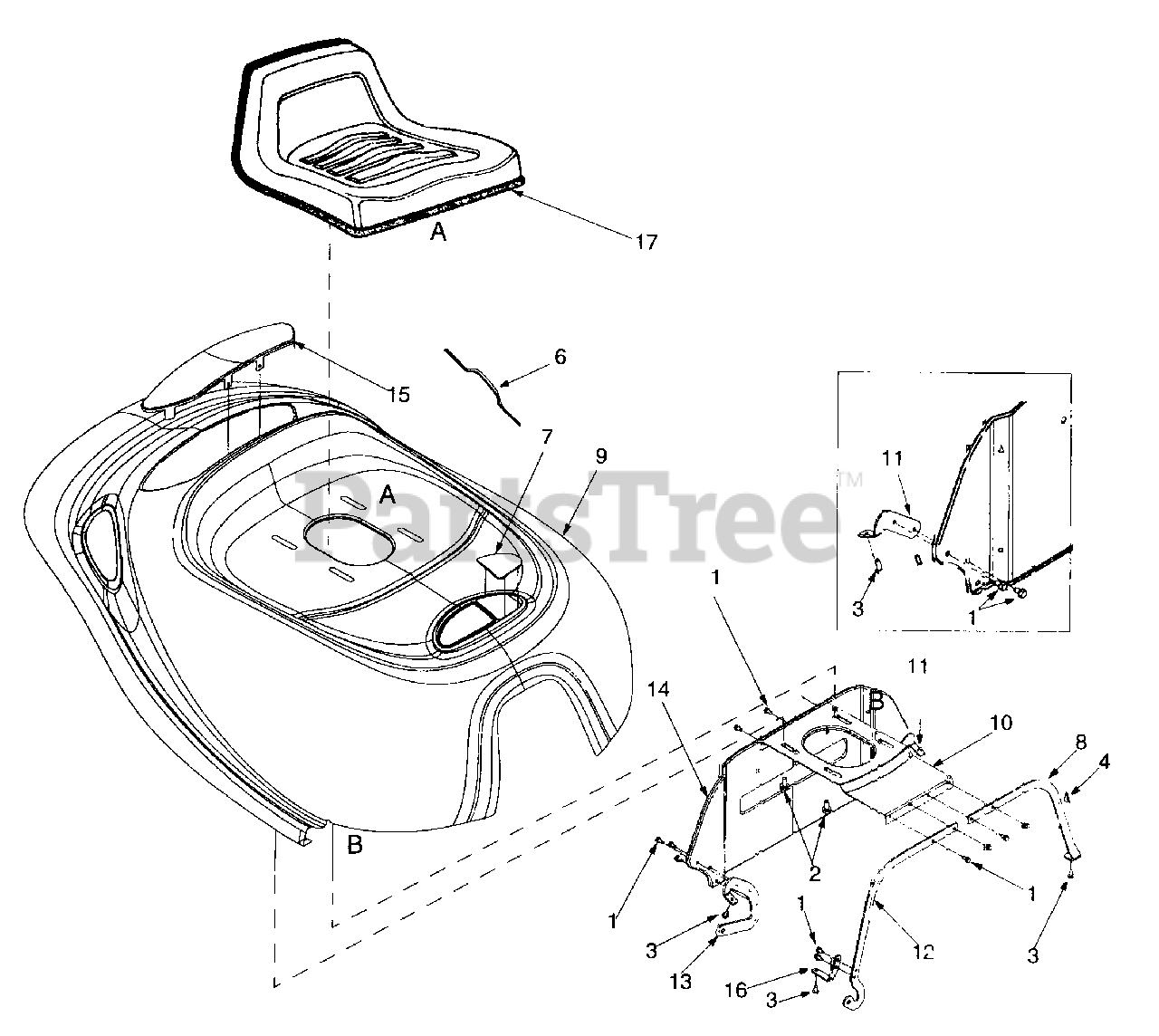

Hood Assembly & Seat Parts Diagram

  • Title

1

Cub Cadet 710-0599

Hex Hd. TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0870

Hex Washer Hd. TT Screw 3/8-16 x 0.62

$6.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-1017

Torx Head AB screw 1/4-14 x 0.625

$8.99

$

In Stock, Qty 5

0

4

Cub Cadet 720-0238

Rod End Grip

$3.99

$

In Stock, only 1 left!

0

?5

Cub Cadet 720-3026

Edge Trim

$

$

Not available

6

Cub Cadet 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 731-1691

Grass Bag Lens

$

$

Not available

8

Cub Cadet 783-0410

Bracket Reinforcement: Hood
(Superseded to 783-0410-0637)

$

$

Not available

9

Cub Cadet 783-0445

Hood

Variations

783-0445-0499

Cub Cadet 783-0445-0499

HOOD (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

783-0445-0638

Cub Cadet 783-0445-0638

HOOD (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

783-0445-0662

Cub Cadet 783-0445-0662

HOOD - OYSTER GRAY (0662)

$

$

Not available

783-0445-0665

Cub Cadet 783-0445-0665

HOOD - YARDMAN GREEN (0665)

$

$

Not available

783-0445-0721

Cub Cadet 783-0445-0721

USE 783-0445-4044 HOOD - SEARS RED (0721)

$

$

Not available

783-0445-4044

Cub Cadet 783-0445-4044

HOOD - CRAFTSMAN RED (4044)

$

$

Not available

$414.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 783-0446

Plate: Hood

$

$

Not available

11

Cub Cadet 783-0447

Hood Bracket

$

$

Not available

12

Cub Cadet 783-0448

Hood Bracket: Reinforcement

$

$

Not available

13

Cub Cadet 783-0449

Hinge Bracket: Rear
(Superseded to 783-0449A-0637)

Variations

783-0449-0637

Cub Cadet 783-0449-0637

USE 783-0449A-0637 BRACKET-HO - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 783-0451A

Pivot Plate: Rear Hood

$

$

Not available

15

Cub Cadet 783-0545

Hood Screen

Variations

783-0545-0637

Cub Cadet 783-0545-0637

HOOD SCREEN - POWDER BLACK (0637)

$

$

Not available

$

$

16

Cub Cadet 783-0562

Hinge Bracket: Front

$

$

Not available

17

Cub Cadet 757-0378

Seat
(Superseded to 957-0378)

$

$

Not available
