CZ 3815 (968999245) - Husqvarna 38" Zero-Turn Mower (2006-08) Deck Assembly 38" Parts Diagram

38" Zero-Turn Mower

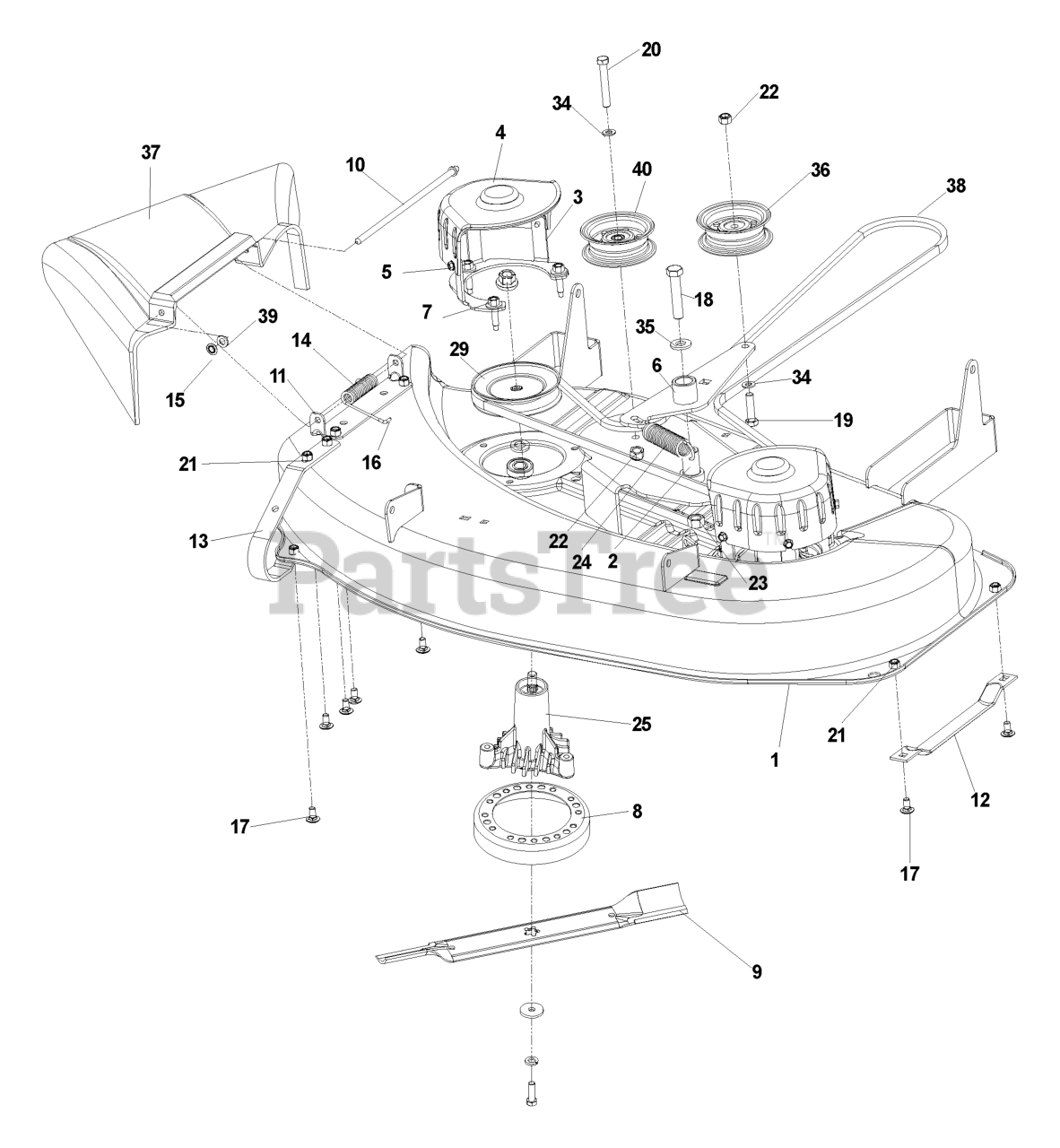

Deck Assembly 38" Parts Diagram

  • Title

1

Husqvarna 539110527

DECK W/DECALS 38" ORANGE

$

$

Not available

2

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

In Stock, Qty 20+

0

3

Husqvarna 539110076

SPINDLE COVER ANCHOR

$

$

Not available

4

Husqvarna 539110075

SPINDLE COVER

$

$

Not available

5

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

6

Husqvarna 539110217

DECK IDLER ARM WELDMENT

$

$

Not available

7

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$1.49

$

In Stock, Qty 20+

0

8

Husqvarna 539107518

STRIPPER-ROUND-UNIVERSAL
(Superseded to 531167701)

$10.99

$

In Stock, Qty 20+

0

9

Husqvarna 539110324

BLADE 38" MULCHING STD
(Superseded to 532134148)

$26.99

$

In Stock, Qty 11

0

10

Husqvarna 539110327

ROD, HINGE
(Superseded to 532106735)

$11.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539110473

BRACKET, MOWER DEFLECTOR
(Superseded to 532137607)

$5.99

$

In Stock, only 2 left!

0

12

Husqvarna 539110313

RUNNER LH
(Superseded to 532125074)

$17.99

$

In Stock, Qty 9

0

13

Husqvarna 539110314

RUNNER RH
(Superseded to 532128772)

$

$

Not available

14

Husqvarna 539110328

SPRING, TORSION DEFLECTOR
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

15

Husqvarna 539107626

PUSH NUT
(Superseded to 532110452)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$2.49

$

In Stock, Qty 20+

0

18

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 2 left!

0

19

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 539990637

HCS 3/8C X 2 1/2

$4.99

$

In Stock, Qty 18

0

21

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

22

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

23

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 539101977

SPRING

$13.99

$

In Stock, Qty 7

0

25

Husqvarna 539110158

SPINDLE, MANDREL ASM
(Superseded to 532130794)

$62.99

$

In Stock, Qty 20+

0

29

Husqvarna 539110315

PULLEY MANDREL
(Superseded to 532173434)

$17.99

$

In Stock, Qty 20+

0

34

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

35

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539110316

PULLEY, IDLER, SHORT

$

$

Not available

37

Husqvarna 539110326

SHEILD DEFLECTOR
(Superseded to 532175943)

$

$

Not available

38

Husqvarna 539110413

DECK BELT

$

$

Not available

39

Husqvarna 539110331

WASHER, 11/32 X 5/8 X 16 GA
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

40

Husqvarna 539110080

PULLEY, IDLER

$

$

Not available

Husqvarna 539110081

BEARING INSERT

Note: (NOT SHOWN)

$

$

Not available
