CZ 4217 (968999246) - Husqvarna 42" Zero-Turn Mower (2006-08) Deck Lift Parts Diagram

42" Zero-Turn Mower

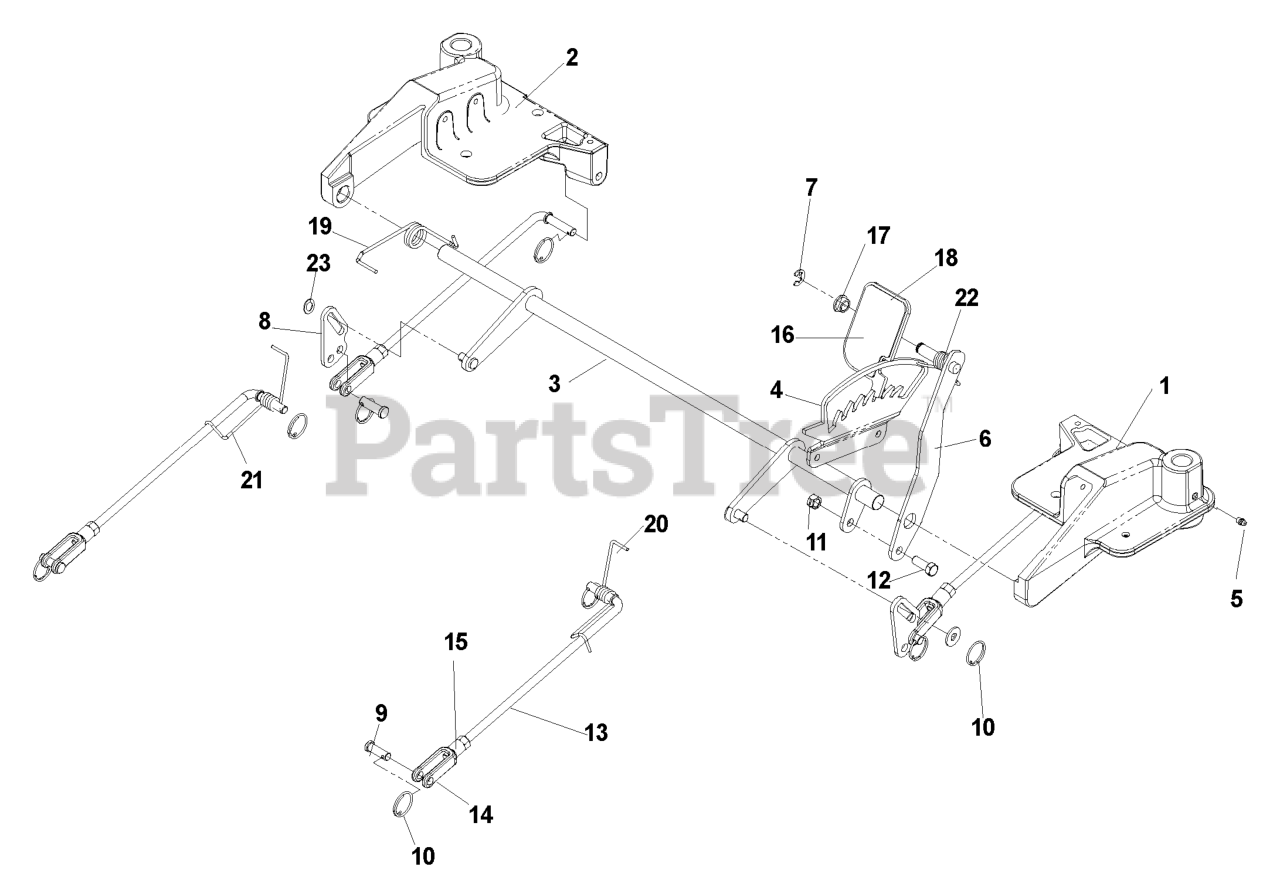

Deck Lift Parts Diagram

  • Title

1

Husqvarna 539110287

CASTER CASTING, RIGHT, PAINTED

$193.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539110288

CASTER CASTING LEFT, PAINTED

$

$

Not available

3

Husqvarna 539110205

DECK LIFT ASM PAINTED

$569.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539110200

HEIGHT ADJUSTER PLATE
(Superseded to 539113931)

$

$

Not available

5

Husqvarna 539101474

ZERK
(Superseded to 596623501)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 539110266

LIFT FOOT, LEVER WELDED
(Superseded to 539110275)

$

$

Not available

7

Husqvarna 539101949

E-RING 1/2 (2 2)
(Superseded to 596671501)

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna 539110293

DECK LIFT CONNECTOR

$

$

Not available

9

Husqvarna 539977703

CLEVIS PIN 3/8 X 1 1/8

$

$

Not available

10

Husqvarna 539916459

RETAINER

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539990546

NUT 3/8C CENTERBLOCK
(Superseded to 595305901)

$3.49

$

In Stock, Qty 20+

0

12

Husqvarna 539106791

HEX BOLT 3/8 X 1"

$

$

Not available

13

Husqvarna 539110306

DECK LIFT ROD

$

$

Not available

14

Husqvarna 539977465

YOKE-3/8-24 PLTD
(Superseded to 596739901)

$34.99

$

In Stock, Qty 11

0

15

Husqvarna 539990155

NUT 3/8F

$3.49

$

In Stock, Qty 15

0

16

Husqvarna 539110308

FOOT PAD, NON-SLIP

$

$

Not available

17

Husqvarna 539100032

BUSHING, FLANGED NYLON

$

$

Not available

18

Husqvarna 539110292

FOOT PEDAL

$

$

Not available

19

Husqvarna 539110071

TORSION SPRING, DECK LIFT

$7.99

$

In Stock, only 2 left!

0

20

Husqvarna 539110160

SPRING, DECK ROD RIGHT

$6.99

$

In Stock, Qty 6

0

21

Husqvarna 539110161

SPRING, DECK ROD LEFT

$

$

Not available

22

Husqvarna 539110295

SPRING, PEDAL, LIFT

$5.99

$

In Stock, only 4 left!

0

23

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0
