CZ 42175 (968999275) - Husqvarna 42" Zero-Turn Mower (2006-08) Deck Assembly 42" Parts Diagram

42" Zero-Turn Mower

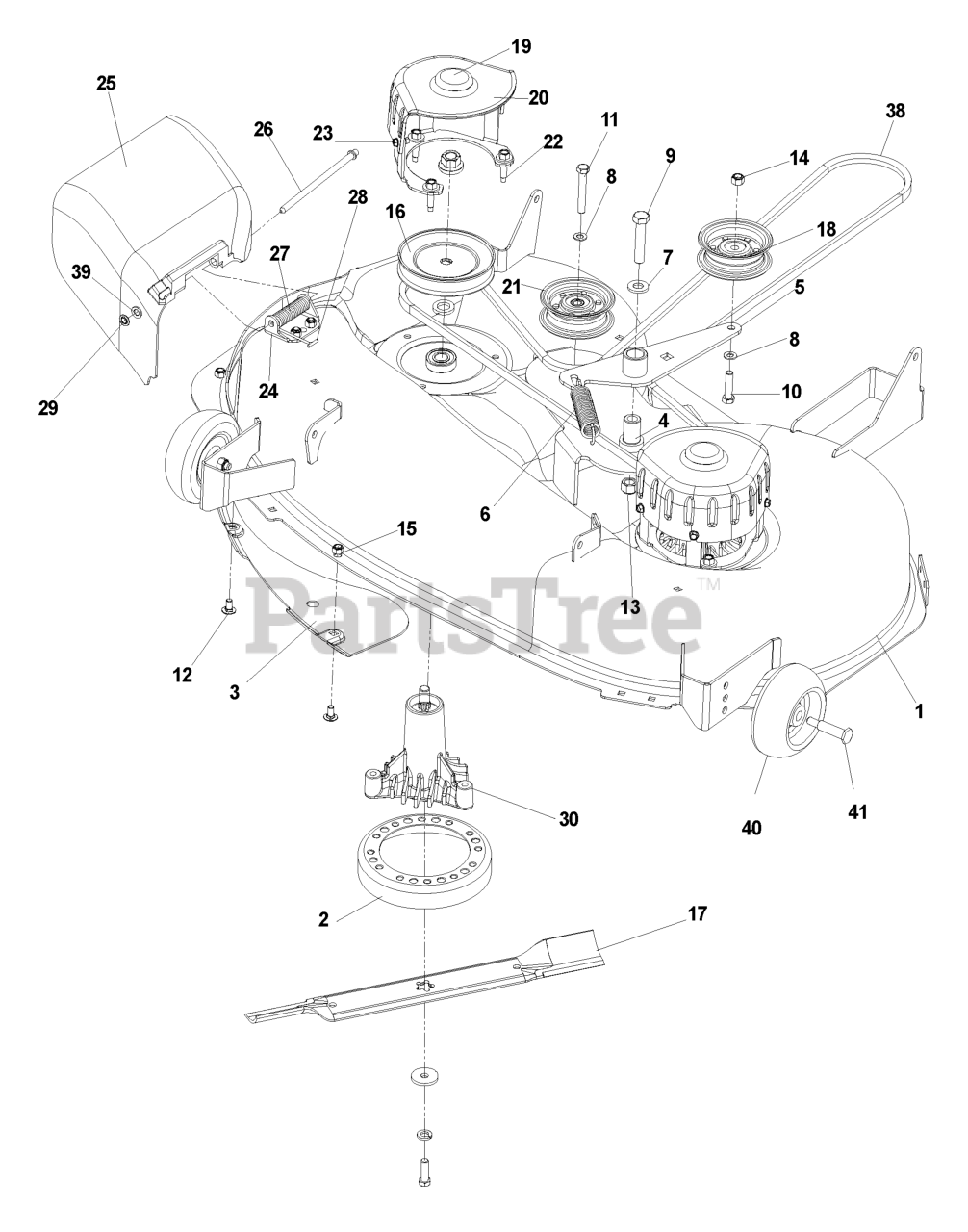

Deck Assembly 42" Parts Diagram

  • Title

1

Husqvarna 539110528

DECK W/DECALS 42" ORANGE

$

$

Not available

2

Husqvarna 539107518

STRIPPER-ROUND-UNIVERSAL
(Superseded to 531167701)

$10.99

$

In Stock, Qty 20+

0

3

Husqvarna 539110463

BAFFLE VORTEX 42
(Superseded to 531167001)

$17.99

$

In Stock, Qty 5

0

4

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

In Stock, Qty 20+

0

5

Husqvarna 539110217

DECK IDLER ARM WELDMENT

$

$

Not available

6

Husqvarna 539101977

SPRING

$13.99

$

In Stock, Qty 7

0

7

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 2 left!

0

10

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 539990637

HCS 3/8C X 2 1/2

$4.99

$

In Stock, Qty 18

0

12

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$2.49

$

In Stock, Qty 20+

0

13

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 539110318

PULLEY, MANDREL

$

$

Not available

17

Husqvarna 539110460

BLADE 42" MULCHING STD
(Superseded to 532134149)

$14.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539110316

PULLEY, IDLER, SHORT

$

$

Not available

19

Husqvarna 539110075

SPINDLE COVER

$

$

Not available

20

Husqvarna 539110076

SPINDLE COVER ANCHOR

$

$

Not available

21

Husqvarna 539110317

IDLER PULLEY ASM

$

$

Not available

22

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$1.49

$

In Stock, Qty 20+

0

23

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

24

Husqvarna 539110472

BRACKET DEFLECTOR MOWER 42
(Superseded to 529845901)

$5.99

$

In Stock, Qty 14

0

25

Husqvarna 539110461

SHEILD DEFLECTOR
(Superseded to 532130968)

$43.99

$

In Stock, Qty 20+

0

26

Husqvarna 539110462

ROD, HINGE
(Superseded to 532131491)

$6.99

$

In Stock, Qty 20+

0

27

Husqvarna 539110328

SPRING, TORSION DEFLECTOR
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

28

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$3.49

$

In Stock, Qty 20+

0

29

Husqvarna 539107626

PUSH NUT
(Superseded to 532110452)

$3.49

$

In Stock, Qty 20+

0

30

Husqvarna 539110158

SPINDLE, MANDREL ASM
(Superseded to 532130794)

$62.99

$

In Stock, Qty 20+

0

38

Husqvarna 539110410

BELT, V MOWER DECK 42"

$

$

Not available

39

Husqvarna 539110331

WASHER, 11/32 X 5/8 X 16 GA
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

40

Husqvarna 539110289

WHEEL GUAGE

$

$

Not available

41

Husqvarna 539110222

BOLT, SHOULDER
(Superseded to 596434402)

$4.99

$

In Stock, Qty 20+

0
