CZ 42175 (968999275) - Husqvarna 42" Zero-Turn Mower (2006-08) Motion Control Parts Diagram

42" Zero-Turn Mower

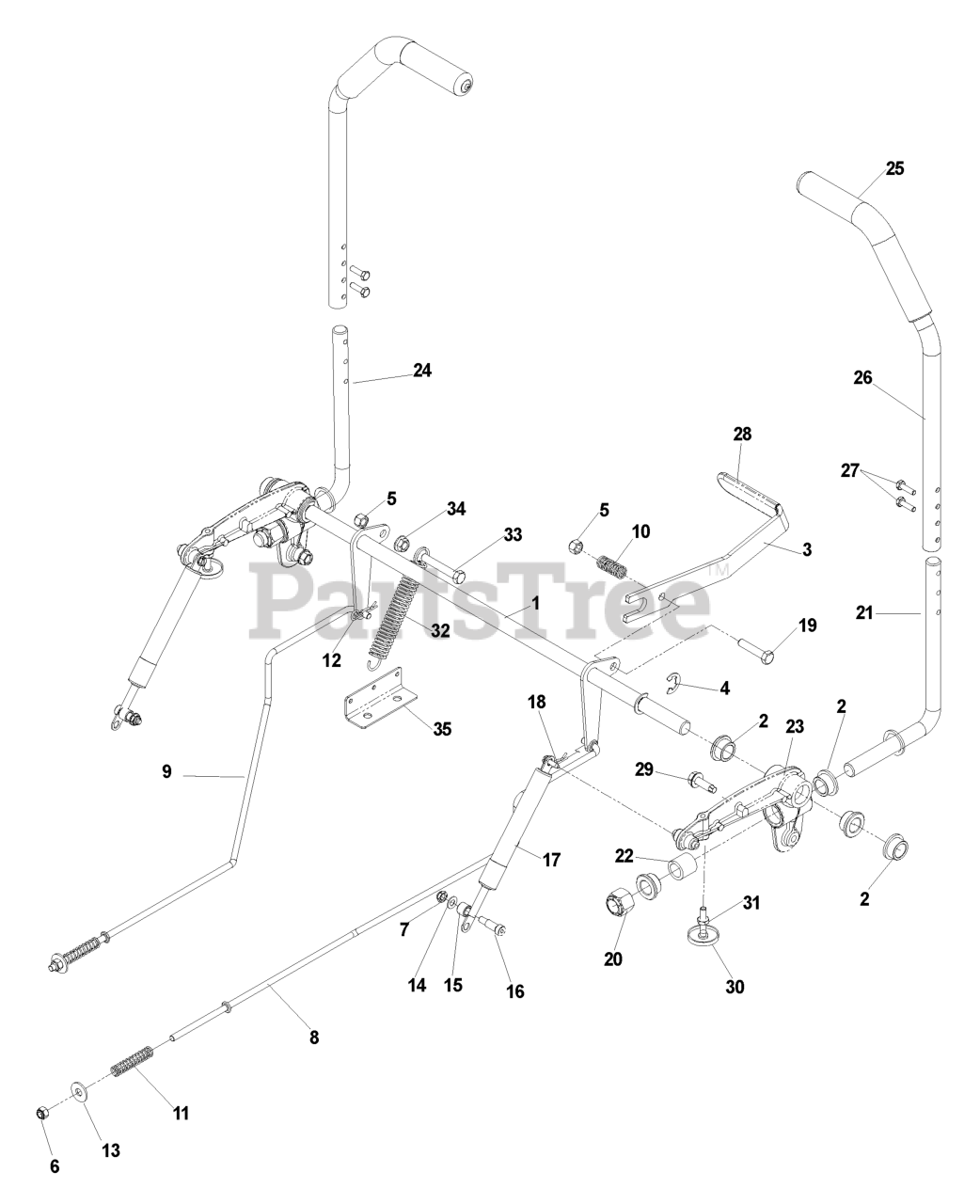

Motion Control Parts Diagram

  • Title

1

Husqvarna 539110142

SHAFT, MOTION, BRAKE ASS'Y

$

$

Not available

2

Husqvarna 539110146

MOTION BUSHING
(Superseded to 539113121)

$

$

Not available

3

Husqvarna 539110282

UPPER BRAKE LEVER

$12.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539105069

E-RING, 5/8

$3.99

$

In Stock, Qty 7

0

5

Husqvarna 539990717

NUT, 5/16, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 539976978

NUT, 1/4C, NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539108120

NUT, 1/4C, THIN NYLOC

$3.99

$

In Stock, only 2 left!

0

8

Husqvarna 539110268

BRAKE ROD, RIGHT

$

$

Not available

9

Husqvarna 539110269

BRAKE ROD, LEFT

$

$

Not available

10

Husqvarna 539110477

SPRING, BRAKE LEVER

$

$

Not available

11

Husqvarna 539110342

SPRING, ROD BRAKE

$

$

Not available

12

Husqvarna 539976988

HAIRPIN COTTER

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 539103547

WASHER, 1/4

$0.99

$

In Stock, only 2 left!

0

15

Husqvarna 539102827

SPACER, PULLEY

$6.49

$

In Stock, only 2 left!

0

16

Husqvarna 539102828

BOLT, 5/16 X 5/8, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539108793

DAMPENER

$

$

Not available

18

Husqvarna 539991034

SCREW, 10-24 X 5/8, WASHER

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539976935

HCS 5/16-18 X 1 1/2, GR5

$1.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539110340

NUT, 5/8-11C, NYLOC

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539110236

MOTIONARM,

$72.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539110430

BUSHING, ELASTIMER

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539110145

MOTION CASTING

$33.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539110233

MOTION ARM, LEFT

$72.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539110337

GRIP, CONTROL LEVER

$8.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539110338

CONTROL LEVER

$66.99

$

In Stock, only 1 left!

0

27

Husqvarna 539990643

HCS 1/4-20 X 7/8, GR5

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539110478

GRIP, PARK BRAKE

$2.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539108460

BOLT, 5/16-18 X 1 1/4, THREAD FORM

$3.99

$

In Stock, only 1 left!

0

30

Husqvarna 539110021

POST, NEUTRAL RETURN

$

$

Not available

31

Husqvarna 539991112

NUT, 1/4-20, JAM

$3.99

$

In Stock, only 4 left!

0

32

Husqvarna 539916159

SPRING

$7.49

$

In Stock, Qty 5

0

33

Husqvarna 539976937

HCS 5/16-18 X 2 GR5

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990585

NUT, 5/16-18 HFLN

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539110675

SPRING BRACKET

$

$

Not available
