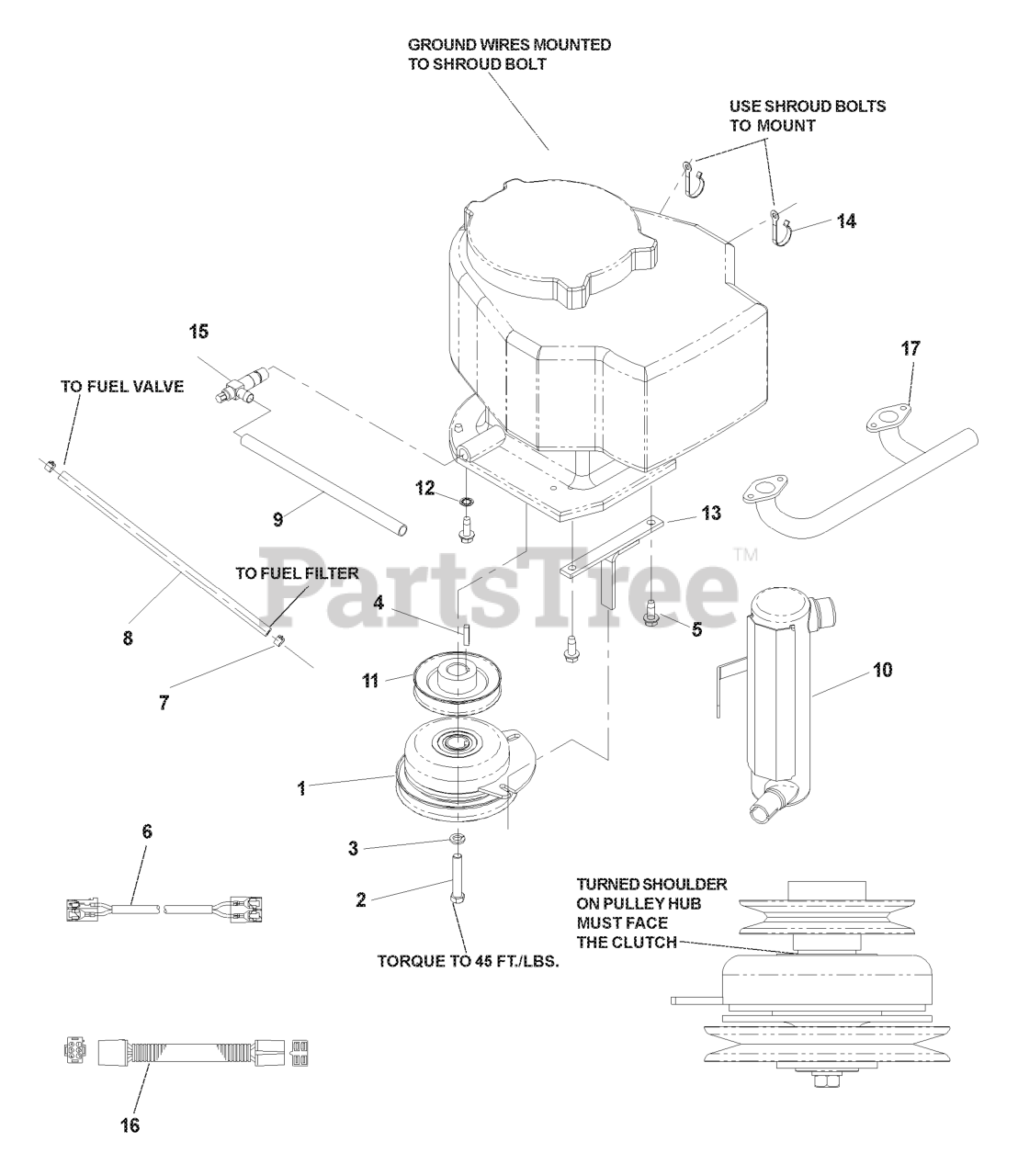

CZ 4818 (968999276) - Husqvarna 48" Zero-Turn Mower (2004-09) Briggs & Stratton Engine Assembly Parts Diagram

48" Zero-Turn Mower

Briggs & Stratton Engine Assembly Parts Diagram

  • Title

1

Husqvarna 539105804

CLUTCH

$

$

Not available

2

Husqvarna 539991120

BOLT 7/16F X 2 1/2

$6.99

$

In Stock, Qty 7

0

3

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

4

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$

$

Not available

5

Husqvarna 539107476

BOLT 3/8-16 X 1.0

$6.99

$

In Stock, only 1 left!

0

6

Husqvarna 539105637

CLUTCH HARNESS

$28.99

$

In Stock, only 2 left!

0

7

Husqvarna 539912222

HOSE CLAMP

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539105527

FUEL LINE 24"
(Superseded to 539110424)

$9.49

$

In Stock, only 2 left!

0

9

Husqvarna 539107937

OIL DRAIN HOSE

$

$

Not available

10

Husqvarna 539109843

B&S MUFFLER, VERTICAL

$

$

Not available

11

Husqvarna 539107557

PULLEY

$

$

Not available

12

Husqvarna 539108266

WASHER
(Superseded to 539990390)

$7.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539106819

CLUTCH TIE DOWN

$

$

Not available

14

Husqvarna 539107098

CLAMP

$

$

Not available

15

Husqvarna 539109837

DRAIN VALVE
(Superseded to 532428287)

$20.99

$

In Stock, Qty 20+

0

16

Husqvarna 539107516

KOHLER PIGTAIL-CV490S

$

$

Not available

17

Husqvarna 539109844

B&S MANIFOLD

$

$

Not available

Husqvarna 539109980

MUFFLER CLAMP

Note: (NOT SHOWN)

$14.99

$

Usually ships in 3-10 days

0
