CZ 4818 (968999276) - Husqvarna 48" Zero-Turn Mower (2004-09) Deck Lift Assembly Parts Diagram

48" Zero-Turn Mower

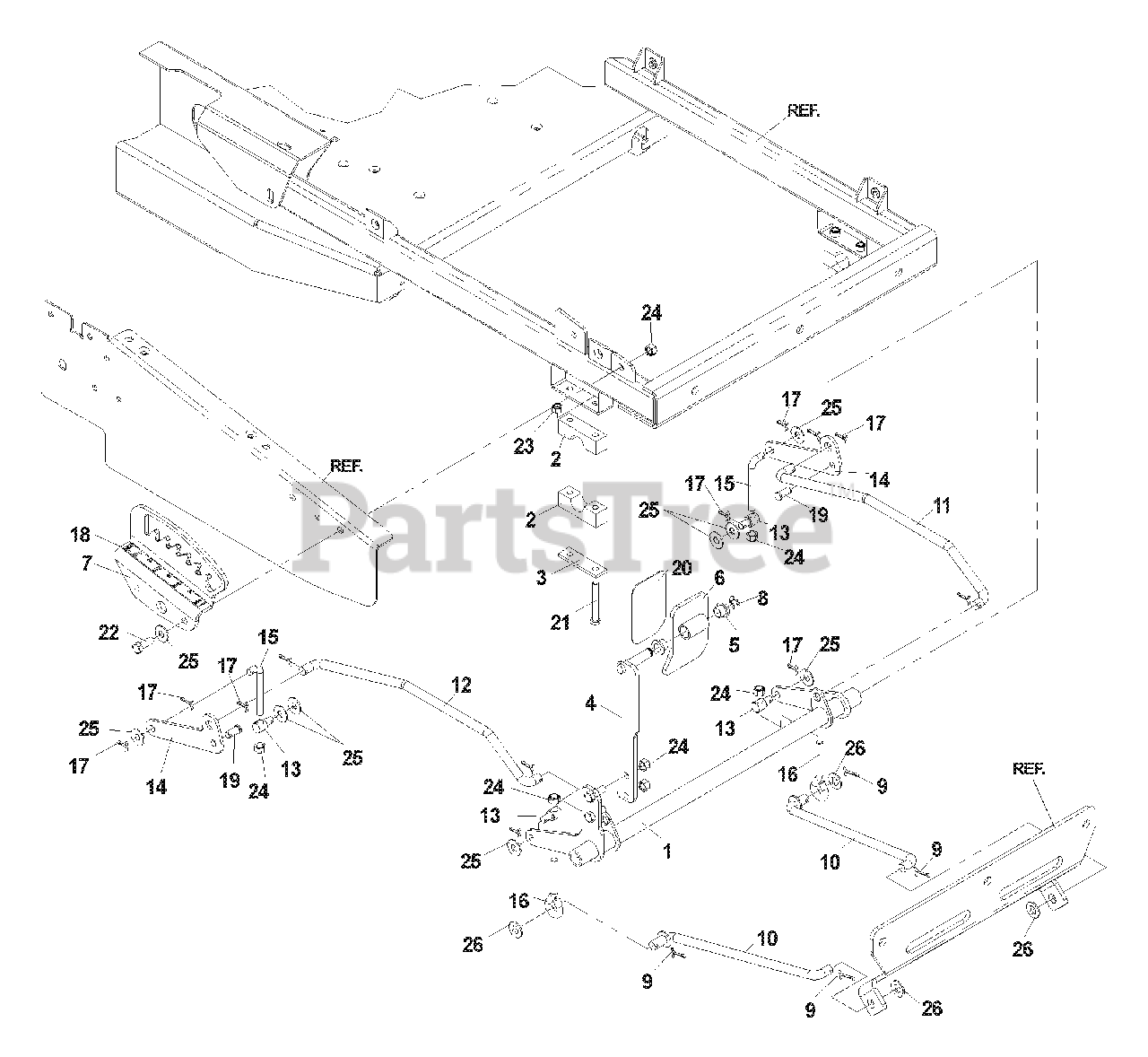

Deck Lift Assembly Parts Diagram

  • Title

1

Husqvarna 539107535

CROSSSHAFT WLDMT.

$

$

Not available

2

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

3

Husqvarna 539104807

REINFORCEMENT BAR
(Superseded to 584392702)

$13.99

$

In Stock, only 2 left!

0

4

Husqvarna 539107538

LIFT ARM WLDMT.

$

$

Not available

5

Husqvarna 539100032

BUSHING, NYLON FLANGED

$

$

Not available

6

Husqvarna 539107543

FOOT PEDAL WLDMT.

$

$

Not available

7

Husqvarna 539107542

HEIGHT PLATE

$

$

Not available

8

Husqvarna 539101949

E-RING, 1/2"

$

$

Not available

9

Husqvarna 539990654

COTTER PIN, 5/32 X 1 1/8

$

$

Not available

10

Husqvarna 539107508

STRUT LINKAGE

$

$

Not available

11

Husqvarna 539107509

LIFT LINKAGE, LEFT, PRIMARY

$

$

Not available

12

Husqvarna 539107510

LIFT LINKAGE, RIGHT, PRIMARY

$

$

Not available

13

Husqvarna 539107703

SWIVEL

$

$

Not available

14

Husqvarna 539107567

REAR BELLCRANK

$11.99

$

In Stock, only 2 left!

0

15

Husqvarna 539107545

LIFT LINKAGE

$11.99

$

In Stock, only 1 left!

0

16

Husqvarna 539107484

EYE BOLT
(Superseded to 596671601)

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 539990365

PIN, COTTER, 1/8 X 3/4
(Superseded to 596029501)

$3.49

$

In Stock, Qty 6

0

18

Husqvarna 539107591

DECAL, CUTTING HEIGHT

$

$

Not available

19

Husqvarna 539107697

CLEVIS PIN

$

$

Not available

20

Husqvarna 539107958

FOOT PAD

$

$

Not available

21

Husqvarna 539991046

HCS 5/16C X 2 1/2

$4.99

$

In Stock, Qty 8

0

22

Husqvarna 539976941

HCS 3/8C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

23

Husqvarna 539990717

NUT, 5/16C, NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna 539976979

NUT, 3/8C, NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 539990517

WASHER, 3/8, FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 11

0

26

Husqvarna 539990250

WASHER, 1/2 SAE

$1.99

$

Usually ships in 3-10 days

0
